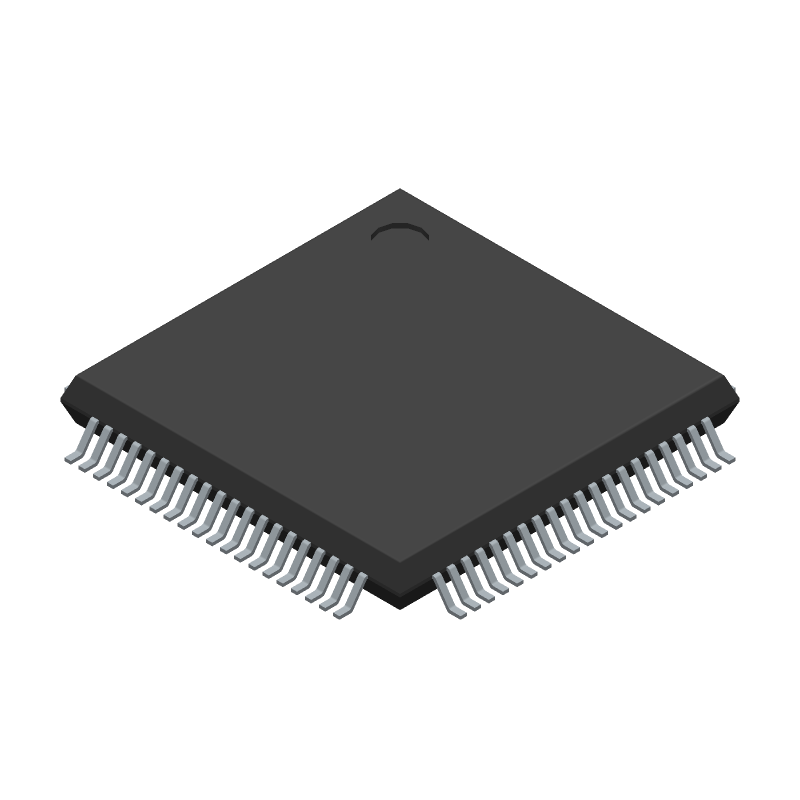

MSP430F5529IPNR
16-bit microcontroller operating at 25MHz, featuring 128KB Flash memory and 8KB SRAM. This MCU includes a 12-bit Analog-to-Digital Converter with 16 channels, a comparator, and DMA for efficient data transfer. Connectivity options comprise 2 UART channels, SPI, I2C, and USB support, alongside a hardware multiplier. Packaged in an 80-pin LQFP with a temperature range of -40°C to 85°C, this RoHS compliant component offers 63 GPIO pins and a watchdog timer.
Similar Components
MSP430G2553IN20
16-bit RISC microcontroller operating at up to 16 MHz. Features 16KB of FLASH program memory and 512 bytes of SRAM. Includes a 10-bit Analog-to-Digital Converter (ADC), comparator, and multiple communication interfaces: UART, SPI, and I2C. Offers 16 I/O lines and a timer with PWM capabilities. Supplied in a 20-pin PDIP package, rated for industrial temperature ranges of -40°C to 85°C.
MSP430FR5969IRGZT
16-bit RISC microcontroller featuring 64KB of Ferroelectric RAM (FRAM) and 2KB of SRAM. Operates at a maximum clock frequency of 24 MHz, with a typical speed of 16 MHz. Includes an integrated 12-bit Analog-to-Digital Converter (ADC), comparator, and DMA controller. Supports UART, SPI, and I2C communication interfaces. Packaged in a 48-VQFN with a temperature grade of INDUSTRIAL (-40°C to 85°C).
MSP430F5529IPN
16-bit microcontroller operating at 25MHz, featuring 128KB Flash and 8KB RAM. This MCU offers a 12-bit ADC with 16 channels, a comparator, and DMA for efficient data transfer. Integrated peripherals include UART, SPI, I2C, and USB, alongside a hardware multiplier. Packaged in an 80-pin LQFP, it supports a wide operating temperature range of -40°C to 85°C and a supply voltage from 1.8V to 3.6V.
About MSP430F5529IPNR
The Texas Instruments MSP430F5529IPNR Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 16-bit microcontroller operating at 25MHz, featuring 128KB Flash memory and 8KB SRAM. This MCU includes a 12-bit Analog-to-Digital Converter with 16 channels, a comparator, and DMA for efficient data transfer. Connectivity options comprise 2 UART channels, SPI, I2C, and USB support, alongside a hardware multiplier. Packaged in an 80-pin LQFP with a temperature range of -40°C to 85°C, this RoHS compliant component offers 63 GPIO pins and a watchdog timer.. Key parameters include Core Architecture: MSP430, Data Bus Width: 16b, Frequency: 25MHz, Height: 1.6mm, and Lead Free: Lead Free. MSP430F5529IPNR is manufactured by Texas Instruments as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about MSP430F5529IPNR specifications
Click to ask a quick question:
Parameters
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 25MHz |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage (DC) | 1.8V |
| Number of ADC Channels | 16 |
| Number of A/D Converters | 16 |
| Number of GPIO | 63 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.6V |
| Package/Case | LQFP |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| RAM Size | 8KB |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | MSP430F5529 |
| Thickness | 1.4mm |
| Watchdog Timer | Yes |
| Weight | 0.022575oz |
| Width | 12mm |
