ADS1256IDBR
24-bit, 8-channel delta-sigma analog-to-digital converter (ADC) with a 30kS/s conversion rate. Features a programmable gain amplifier (PGA) and bipolar input polarity. Operates from a 1.8V to 3.6V analog supply and 4.75V to 5.25V digital supply. Offers SPI interface and a 2LSB differential nonlinearity. Packaged in a 28-pin SSOP with gold contact plating, suitable for -40°C to 85°C operation.
Similar Components
LMC6482AIM
Dual operational amplifier featuring rail-to-rail input and output capabilities. Achieves ultra-low input bias current of 0.02pA and a low input offset voltage of 110µV. Offers a 1.5MHz bandwidth and 1.3V/µs slew rate. Operates from 3V to 15.5V supply voltages with a typical 1.3mA supply current. Housed in an 8-SOIC surface mount package.
SN65HVD230DR
High-speed CAN transceiver supporting 1Mbps data rates. Features a single driver and receiver with 3.3V operating supply voltage, compatible with 3V to 3.6V. Encased in an 8-pin SOIC package with SMD/SMT termination, this component offers a slew rate of 15V/µs and a standby supply current of 17mA. Operates across a temperature range of -40°C to 85°C, with RoHS compliance.
CD4511
The CD4511BF3A is a CMOS decoder/latch IC with 4 inputs and 7 outputs. It operates over a supply voltage range of 3V to 18V and can withstand temperatures between -55°C and 125°C. The device is packaged in a DIP-16 configuration and features a non-inverting polarity. The IC has a propagation delay of 1320ns and a turn-on delay time of 1320ns, with a quiescent current of 100uA. The CD4511BF3A is not radiation hardened and is not RoHS compliant.
TLC5940
The TLC5940 is a 16-channel, constant-current sink LED driver. Each channel has an individually adjustable 4096-step grayscale PWM brightness control and a 64-step, constant-current sink dot correction. The dot correction adjusts the brightness variations between LED channels and is storable in integrated EEPROM. It features a 30 MHz data transfer rate and error detection including LED Open Detection (LOD) and Thermal Error Flag (TEF).
LM324AN
Quadruple operational amplifier featuring a 1MHz bandwidth and 1.2MHz gain bandwidth product. This general-purpose amplifier offers a 100dB voltage gain and a 0.5V/µs slew rate. Designed for through-hole mounting in a 14-pin PDIP package, it operates with a dual supply voltage range of 1.5V to 16V, or a single supply from 3V to 32V. Key specifications include a 3mV input offset voltage and 100nA input bias current, with a 65dB common mode rejection ratio.
LMD18200
Dual H-bridge motor driver IC for brushed DC motors, featuring a maximum supply voltage of 55V and a maximum output current of 3A per channel. This through-hole component, housed in a TO-220 package, offers a parallel interface for control and operates from a minimum supply voltage of 12V. It provides two independent output channels, with an operating supply current of 13mA. The device is RoHS compliant and lead-free.
About ADS1256IDBR

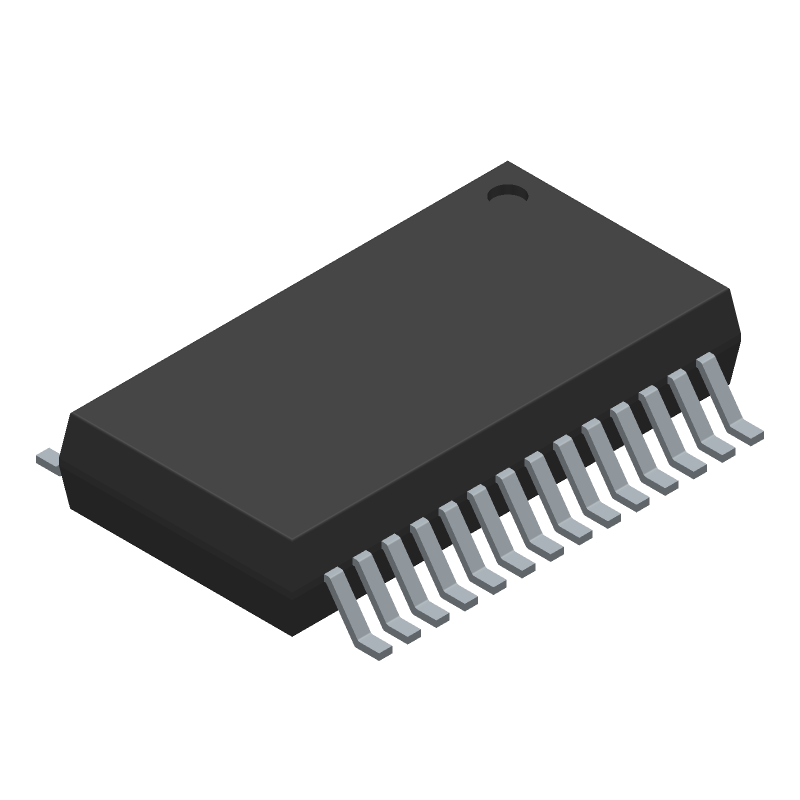

The Texas Instruments ADS1256IDBR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 24-bit, 8-channel delta-sigma analog-to-digital converter (ADC) with a 30kS/s conversion rate. Features a programmable gain amplifier (PGA) and bipolar input polarity. Operates from a 1.8V to 3.6V analog supply and 4.75V to 5.25V digital supply. Offers SPI interface and a 2LSB differential nonlinearity. Packaged in a 28-pin SSOP with gold contact plating, suitable for -40°C to 85°C operation.. Key parameters include Contact Plating: Gold, Conversion Rate: 30KS/s, Differential Nonlinearity: 2LSB, Height: 2mm, and Interface: SPI. ADS1256IDBR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about ADS1256IDBR specifications
Click to ask a quick question:
Parameters
| Contact Plating | Gold |
| Conversion Rate | 30KS/s |
| Differential Nonlinearity | 2LSB |
| Height | 2mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 57mW |
| Max Supply Voltage | 5.25V |
| Max Supply Voltage (DC) | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.75V |
| Min Supply Voltage (DC) | 1.8V |
| Number of A/D Converters | 1 |
| Number of Bits | 24 |
| Number of Channels | 8 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Number of Inputs | 8 |
| Operating Supply Voltage | 5V |
| Package/Case | SSOP |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bipolar |
| Power Consumption | 36mW |
| Power Dissipation | 38mW |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Sampling Rate | 30KS/s |
| Supply Current | 36mA |
| Supply Type | Analog, Digital |
| Thickness | 1.95mm |
| Width | 5.3mm |
