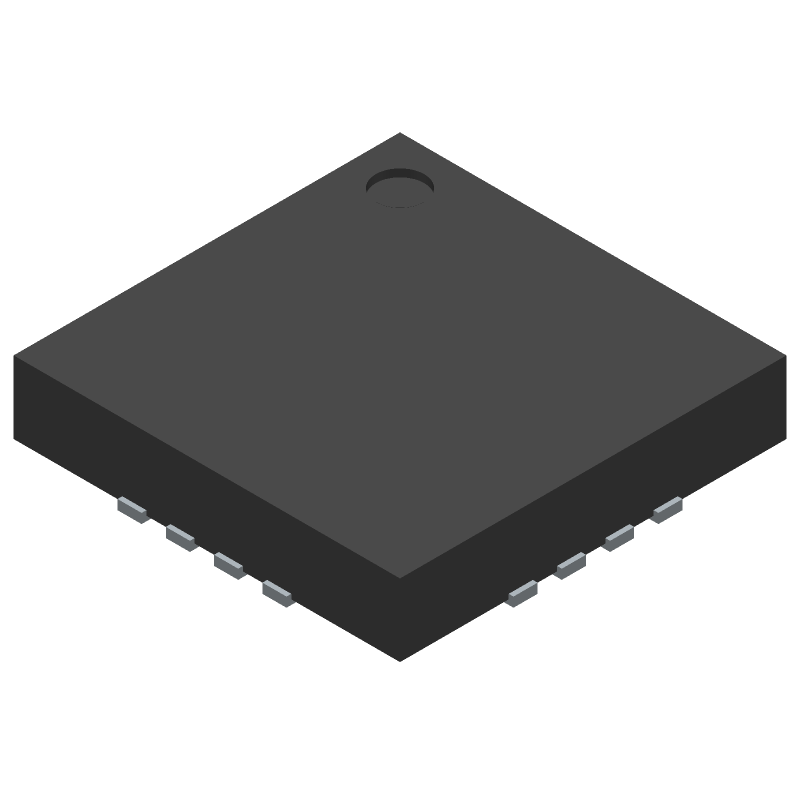

LDC1614RGHR
Inductance to Digital Converter 4.08ksps 28bit Automotive 16-Pin WQFN EP T/R
Similar Components
INA226
Current shunt and power monitor measures shunt voltage and bus supply voltage through an I2C- or SMBus-compatible interface. The device senses bus voltages from 0 V to 36 V and operates from a 2.7 V to 5.5 V supply. It provides 16-bit resolution with programmable calibration, conversion time, averaging, and alert-limit functions. The monitor supports high-side or low-side sensing, 16 programmable addresses, and operation from -40 °C to 125 °C in a 10-pin VSSOP package.
INA219
High-precision current and voltage monitoring IC with 0.5% accuracy. Features a 3V to 5.5V operating supply voltage range and a maximum input voltage of 26V. This single-amplifier device offers a 100dB Common Mode Rejection Ratio and a low input offset voltage of 40uV. Packaged in an 8-pin SOT-23-8, it operates from -40°C to 125°C and is RoHS compliant.
INA219BIDCNT
3V-5.5V 26V Max Supervisory IC, 0.5% Acc, SOT-23-8
About LDC1614RGHR
The Texas Instruments LDC1614RGHR Sensors Transducers datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Inductance to Digital Converter 4.08ksps 28bit Automotive 16-Pin WQFN EP T/R. Key parameters include Eccn Code: EAR99, JEDEC Package Code: S-PQCC-N16, Lead Free: Yes, Length: 4, and Max Operating Temperature: 125. LDC1614RGHR is manufactured by Texas Instruments as part of their Sensors Transducers product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Sensors Transducers
Ask AI Assistant
Ask questions about LDC1614RGHR specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | S-PQCC-N16 |
| Lead Free | Yes |
| Length | 4 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Channels | 4 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| REACH | Compliant |
| RoHS | Yes |
| Supply Voltage-Max (Vsup) | 3.6 |
| Supply Voltage-Min (Vsup) | 2.7 |
| Supply Voltage-Nom (Vsup) | 3.3 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | QUAD |
| Width | 4 |
