TPS7A0533PDBVR

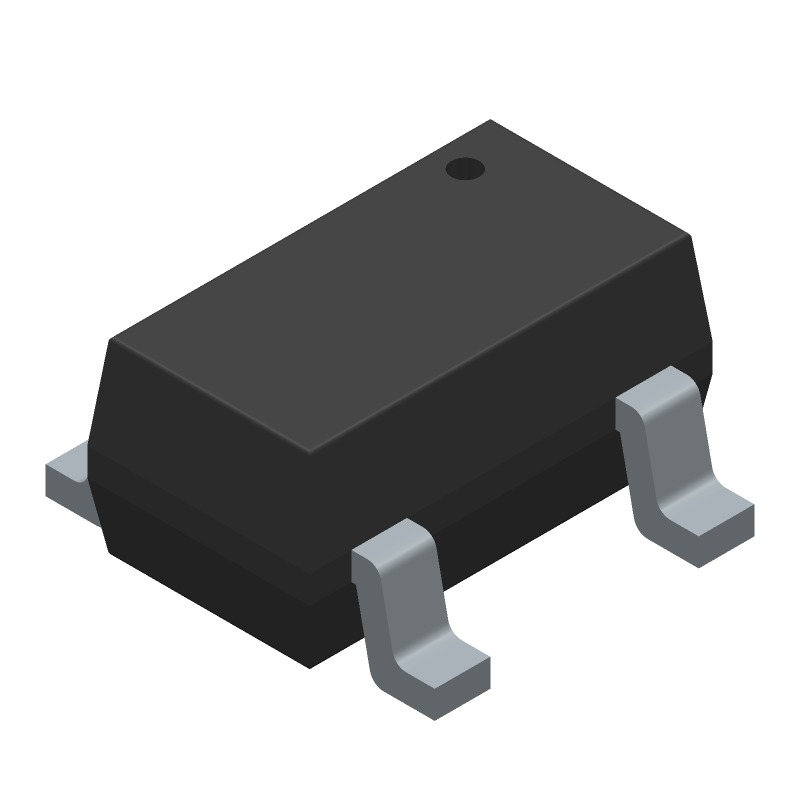

The TPS7A0533PDBVR is a 5V input, 3.3V output linear voltage regulator with a maximum output current of 200mA. It has a fixed output voltage of 3.3V and a dropout voltage of 0.204V. The device operates over a temperature range of -40°C to 125°C. It is available in a 5-pin package with a width of 1.6mm and a length of 2.9mm. The TPS7A0533PDBVR is a member of the Texas Instruments family of linear voltage regulators.
Similar Components
LM2576S-ADJ/NOPB
Adjustable DC-DC Conv, 3A, 40V In, 37V Out, TO-263
LM2588
Adjustable 5A DC-DC boost regulator with flyback topology, operating from a 4V to 40V input range. Features frequency synchronization and a maximum output current of 5A. Delivers up to 90% efficiency and supports adjustable output voltages from 1.23V to 12.6V. Packaged in a TO-263 surface-mount case, this component operates across a wide temperature range of -40°C to 125°C.
LM2596S-12
12V fixed output, positive voltage switching regulator with a 3A maximum output current. Operates from a 4.5V to 40V input voltage range, featuring a 150kHz switching frequency. Packaged in a TO-263-5 surface mount configuration. Designed for power management applications, this integrated circuit offers a single positive output.
TPS54531DDAR
5A, 570kHz step-down converter with adjustable output voltage from 800mV to 26.04V. Features a wide input voltage range of 3.5V to 28V and a maximum output current of 5A. Operates within a temperature range of -40°C to 85°C. Includes Eco-mode for improved efficiency and is packaged in a lead-free, surface-mount 8-SO PowerPAD.
TPS63020
High efficiency single inductor buck-boost converter, featuring a 4A switch and 96% peak efficiency. This power management IC offers adjustable output voltage from 1.2V to 5.5V, supporting up to 3A output current. Designed for surface mount installation in a compact VSON package (4.15mm x 3.15mm x 0.95mm), it operates from 1.8V to 5.5V input voltage. With a quiescent current of 50µA and a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is ideal for power-sensitive applications.
LM338
Adjustable positive linear voltage regulator with a 5A output current capability. Features a maximum input voltage of 40V and a minimum output voltage of 1.24V, adjustable up to 32V. Offers a low dropout voltage of 3mV and a quiescent current of 3mA. Packaged in a TO-220 through-hole mount, this RoHS compliant component operates from 0°C to 125°C with a maximum power dissipation of 25W.
About TPS7A0533PDBVR
The Texas Instruments TPS7A0533PDBVR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The TPS7A0533PDBVR is a 5V input, 3.3V output linear voltage regulator with a maximum output current of 200mA. It has a fixed output voltage of 3.3V and a dropout voltage of 0.204V. The device operates over a temperature range of -40°C to 125°C. It is available in a 5-pin package with a width of 1.6mm and a length of 2.9mm. The TPS7A0533PDBVR is a member of the Texas Instruments family of linear voltage regulators.. Key parameters include Adjustability: FIXED, Dropout Voltage1-Max: 0.235, Dropout Voltage1-Nom: 0.204, Eccn Code: EAR99, and Input Voltage Absolute-Max: 6. TPS7A0533PDBVR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS7A0533PDBVR specifications
Click to ask a quick question:
Parameters
| Adjustability | FIXED |
| Dropout Voltage1-Max | 0.235 |
| Dropout Voltage1-Nom | 0.204 |
| Eccn Code | EAR99 |
| Input Voltage Absolute-Max | 6 |
| Input Voltage-Max | 5.5 |
| Input Voltage-Min | 3.8 |
| JEDEC Package Code | R-PDSO-G5 |
| Lead Free | Yes |
| Length | 2.9 |
| Line Regulation-Max | 0.018 |
| Load Regulation-Max | 0.055 |
| Military Spec | False |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 5 |
| Operating Temperature TJ-Max | 125 |
| Operating Temperature TJ-Min | -40 |
| Output Current1-Max | 0.2 |
| Output Voltage1-Max | 3.399 |
| Output Voltage1-Min | 3.201 |
| Output Voltage1-Nom | 3.3 |
| REACH | Compliant |
| RoHS | Yes |
| Terminal Position | DUAL |
| Voltage Tolerance-Max | 3 |
| Width | 1.6 |
