TPS54202DDCR

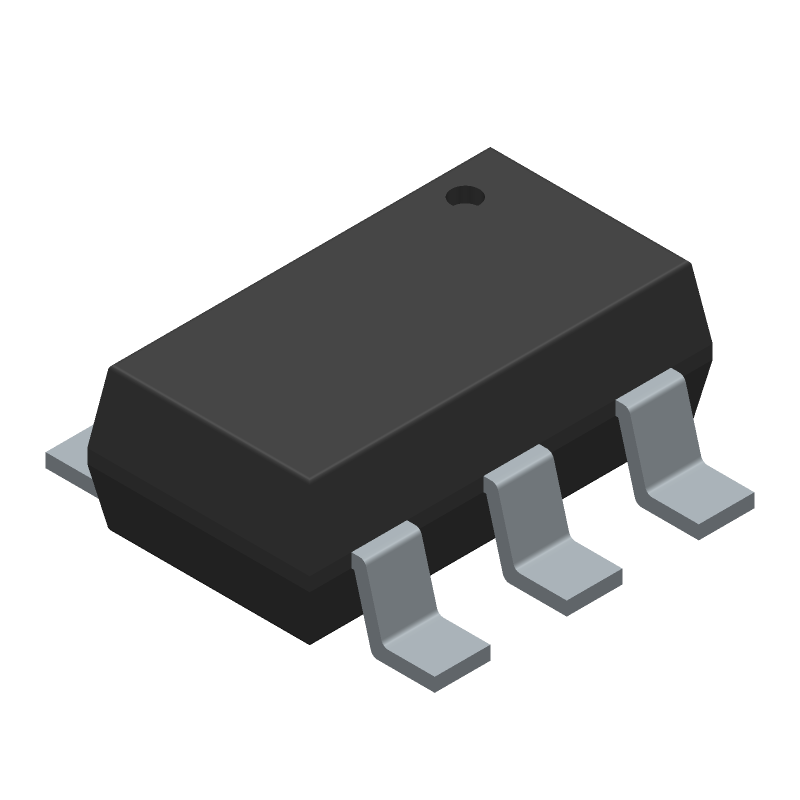

Automotive-grade synchronous step-down converter with a 4.5V to 28V input range and 2A output capability. Features EMI-friendly design and operates across a -40°C to 125°C temperature range. This 6-terminal device utilizes a 6-SOT-23-THIN package (R-PDSO-G6) with dimensions of 1.6mm width and 2.9mm length.
Similar Components
TPS54531DDAR
5A, 570kHz step-down converter with adjustable output voltage from 800mV to 26.04V. Features a wide input voltage range of 3.5V to 28V and a maximum output current of 5A. Operates within a temperature range of -40°C to 85°C. Includes Eco-mode for improved efficiency and is packaged in a lead-free, surface-mount 8-SO PowerPAD.
LM2576S-ADJ/NOPB
Adjustable DC-DC Conv, 3A, 40V In, 37V Out, TO-263
TL431ACLP
Adjustable precision shunt regulator, a single-channel integrated circuit, offers a 2.495V reference voltage with 1% tolerance. It operates with a cathode current of 600µA and supports an output current up to 100mA, with a maximum output voltage of 36V. This component features a TO-92 package, a maximum input voltage of 37V, and a wide operating temperature range from -40°C to 125°C. It is RoHS compliant and lead-free.
TPS63020
High efficiency single inductor buck-boost converter, featuring a 4A switch and 96% peak efficiency. This power management IC offers adjustable output voltage from 1.2V to 5.5V, supporting up to 3A output current. Designed for surface mount installation in a compact VSON package (4.15mm x 3.15mm x 0.95mm), it operates from 1.8V to 5.5V input voltage. With a quiescent current of 50µA and a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is ideal for power-sensitive applications.
TPS5430DDAR
Surface mount DC/DC step-down converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, delivering up to 3A output current. Operates at 500kHz with up to 95% efficiency. Packaged in an 8-SO PowerPAD HSOP, this lead-free, RoHS compliant component is suitable for operation between -40°C and 125°C.
LM7805CT
Positive linear voltage regulator, 5V fixed output, 1A output current with 2% accuracy. Features a maximum input voltage of 35V and a dropout voltage of 2V. This through-hole component is housed in a TO-220 package, operating from 0°C to 70°C. Offers 80dB power supply rejection ratio and 8mA quiescent current.
About TPS54202DDCR
The Texas Instruments TPS54202DDCR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Automotive-grade synchronous step-down converter with a 4.5V to 28V input range and 2A output capability. Features EMI-friendly design and operates across a -40°C to 125°C temperature range. This 6-terminal device utilizes a 6-SOT-23-THIN package (R-PDSO-G6) with dimensions of 1.6mm width and 2.9mm length.. Key parameters include Eccn Code: EAR99, Input Voltage-Max: 28, Input Voltage-Min: 4.5, JEDEC Package Code: R-PDSO-G6, and Lead Free: Yes. TPS54202DDCR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS54202DDCR specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| Input Voltage-Max | 28 |
| Input Voltage-Min | 4.5 |
| JEDEC Package Code | R-PDSO-G6 |
| Lead Free | Yes |
| Length | 2.9 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Number of Terminals | 6 |
| REACH | Compliant |
| RoHS | Yes |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| TME | 131$1.08—$0.778—pcsView offer |
| Width | 1.6 |
