TXS0104EPWR

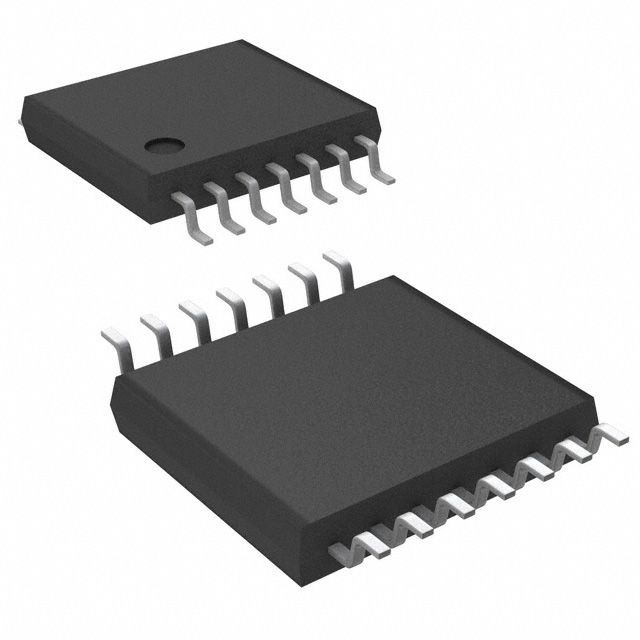

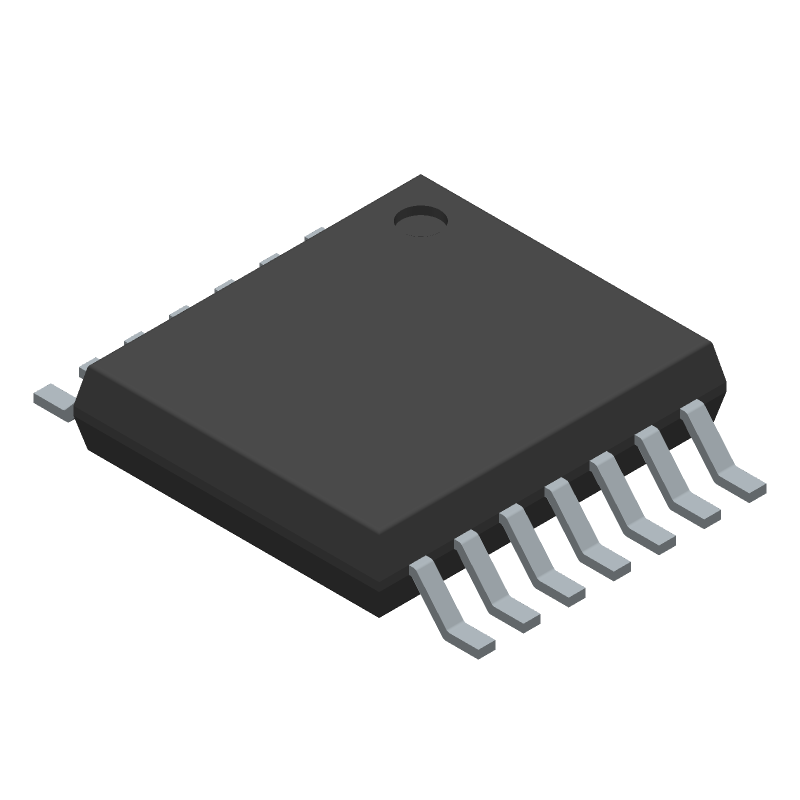

Bidirectional 4-channel voltage level translator, ideal for logic applications. Features a 1.65V to 5.5V operating supply voltage range and supports data rates up to 24Mbps. This surface mount component is housed in a 14-pin TSSOP package, offering a propagation delay of 260ns. It operates across a temperature range of -40°C to 85°C and is RoHS compliant.
Similar Components
TLC5916
The TLC5916 is a constant-current LED sink driver designed to work alone or be cascaded. It contains an 8-bit shift register and data latches that convert serial input data into parallel output format. The device features eight regulated-current ports that provide uniform and constant current for driving LEDs with a wide range of forward voltage variations. It includes an external resistor to set the output current from 5 mA to 120 mA and provides excellent output current accuracy.
SN65HVD3082
Half-duplex RS-485 transceiver with a 200Kbps data rate. Features a single driver and receiver, operating from a 4.5V to 5.5V supply voltage with a typical 5V operating voltage and 900uA supply current. Encased in an 8-PDIP package, this lead-free component operates within a temperature range of -40°C to 85°C.
LM3915
10-segment dot/bar display driver IC, featuring a 3V to 25V input voltage range and a 3V to 25V supply voltage range. This integrated circuit offers 10 outputs with a maximum output current of 30mA and a typical output voltage of 1.28V. Housed in a 18-PDIP package, it supports through-hole mounting and operates within a temperature range of 0°C to 70°C. Maximum power dissipation is 1.365W with a maximum supply current of 9.2mA.
TL072CP
Dual JFET operational amplifier featuring a 3MHz gain bandwidth product and 13V/µs slew rate. This general-purpose amplifier offers a 70dB common mode rejection ratio and operates with dual supply voltages from 3.5V to 18V. The component boasts low input bias current of 200pA and an input offset voltage of 3mV. Packaged in an 8-pin DIP, this RoHS compliant IC is suitable for a wide temperature range of -40°C to 85°C.
LM675
Power operational amplifier featuring a 5.5MHz bandwidth and 8V/µs slew rate. This single-channel, through-hole mounted IC offers a high output current of 3A per channel and a voltage gain of 90dB. Operating from dual supplies between 8V and 30V, or single supplies from 16V to 60V, it boasts a 70dB common mode rejection ratio and power supply rejection ratio. The bipolar technology component is housed in a TO-220 package, with a maximum power dissipation of 30W and an operating temperature range of 0°C to 70°C.
ADS1115
16-bit delta-sigma analog-to-digital converter (ADC) featuring 4 input channels and a sampling rate of 860 samples/second. Offers a programmable gain amplifier (PGA), internal oscillator, voltage reference, and comparator. Operates from a 2V to 5.5V supply voltage with a maximum power dissipation of 500µW. Interface is I2C, and the component is housed in a 10-X2QFN package with gold contact plating. Suitable for operation between -40°C and 125°C.
About TXS0104EPWR
The Texas Instruments TXS0104EPWR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Bidirectional 4-channel voltage level translator, ideal for logic applications. Features a 1.65V to 5.5V operating supply voltage range and supports data rates up to 24Mbps. This surface mount component is housed in a 14-pin TSSOP package, offering a propagation delay of 260ns. It operates across a temperature range of -40°C to 85°C and is RoHS compliant.. Key parameters include Channel Type: Bidirectional, Data Rate: 24Mbps, Height: 1.15mm, High Level Output Current: -20uA, and Lead Free: Lead Free. TXS0104EPWR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TXS0104EPWR specifications
Click to ask a quick question:
Parameters
| Channel Type | Bidirectional |
| Data Rate | 24Mbps |
| Height | 1.15mm |
| High Level Output Current | -20uA |
| Lead Free | Lead Free |
| Length | 5mm |
| Logic Function | Translator |
| Low Level Output Current | 1mA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Circuits | 1 |
| Number of Inputs | 4 |
| Output Current | 50mA |
| Package/Case | TSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 260ns |
| Quiescent Current | 14.4uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| TME | 1,0341$0.88$0.74$0.562—pcsView offer |
| Turn-On Delay Time | 260ns |
| Weight | 0.002018oz |
| Width | 4.4mm |
