REF5025AIDGKR

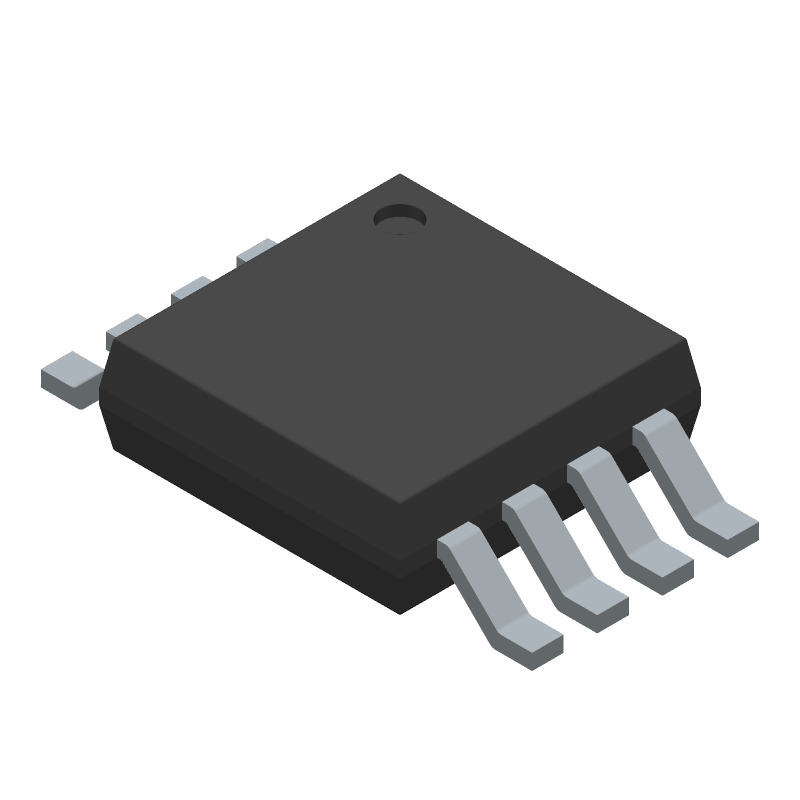

The REF5025AIDGKR is a series voltage reference from Texas Instruments with a fixed output voltage of 2.5V. It operates over a temperature range of -40°C to 125°C and has a maximum output current of 10mA. The device is available in a VSSOP package and is lead-free. It is RoHS compliant and has a quiescent current of 1mA.
Similar Components
LM338
Adjustable positive linear voltage regulator with a 5A output current capability. Features a maximum input voltage of 40V and a minimum output voltage of 1.24V, adjustable up to 32V. Offers a low dropout voltage of 3mV and a quiescent current of 3mA. Packaged in a TO-220 through-hole mount, this RoHS compliant component operates from 0°C to 125°C with a maximum power dissipation of 25W.
LM2596S-12
12V fixed output, positive voltage switching regulator with a 3A maximum output current. Operates from a 4.5V to 40V input voltage range, featuring a 150kHz switching frequency. Packaged in a TO-263-5 surface mount configuration. Designed for power management applications, this integrated circuit offers a single positive output.
TL431AIDBZR
Adjustable precision shunt regulator, SOT-23 package, offering an output voltage range from 2.495V to 36V with a 1% tolerance. Features a maximum input voltage of 37V and a maximum output current of 100mA. Operates across a wide temperature range of -40°C to 125°C. This RoHS compliant component requires a minimum cathode current of 700µA.
MC33063
1.5-A boost, buck, inverting switching regulator, operation from -40°C to 85°C 8-SOIC -40 to 85
uA7805
3 Pin 1.5A Fixed 5V Positive Voltage Regulator 3-TO-220 -40 to 125
TPS61099
0.7Vin Synchronous Boost Converter with 800 nA Ultra-Low Quiescent Current 6-DSBGA -40 to 85
About REF5025AIDGKR
The Texas Instruments REF5025AIDGKR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The REF5025AIDGKR is a series voltage reference from Texas Instruments with a fixed output voltage of 2.5V. It operates over a temperature range of -40°C to 125°C and has a maximum output current of 10mA. The device is available in a VSSOP package and is lead-free. It is RoHS compliant and has a quiescent current of 1mA.. Key parameters include Lead Free: Lead Free, Max Input Voltage: 18V, Max Operating Temperature: 125°C, Max Output Current: 10mA, and Min Input Voltage: 2.7V. REF5025AIDGKR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about REF5025AIDGKR specifications
Click to ask a quick question:
Parameters
| Lead Free | Lead Free |
| Max Input Voltage | 18V |
| Max Operating Temperature | 125°C |
| Max Output Current | 10mA |
| Min Input Voltage | 2.7V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.5V |
| Number of Channels | 1 |
| Operating Supply Current | 1.2mA |
| Output Current | 10mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package/Case | VSSOP |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| Reference Type | Series |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 800uA |
| TME | —1$3.45———pcsView offer |
| Tolerance | 0.1% |
