ESP32

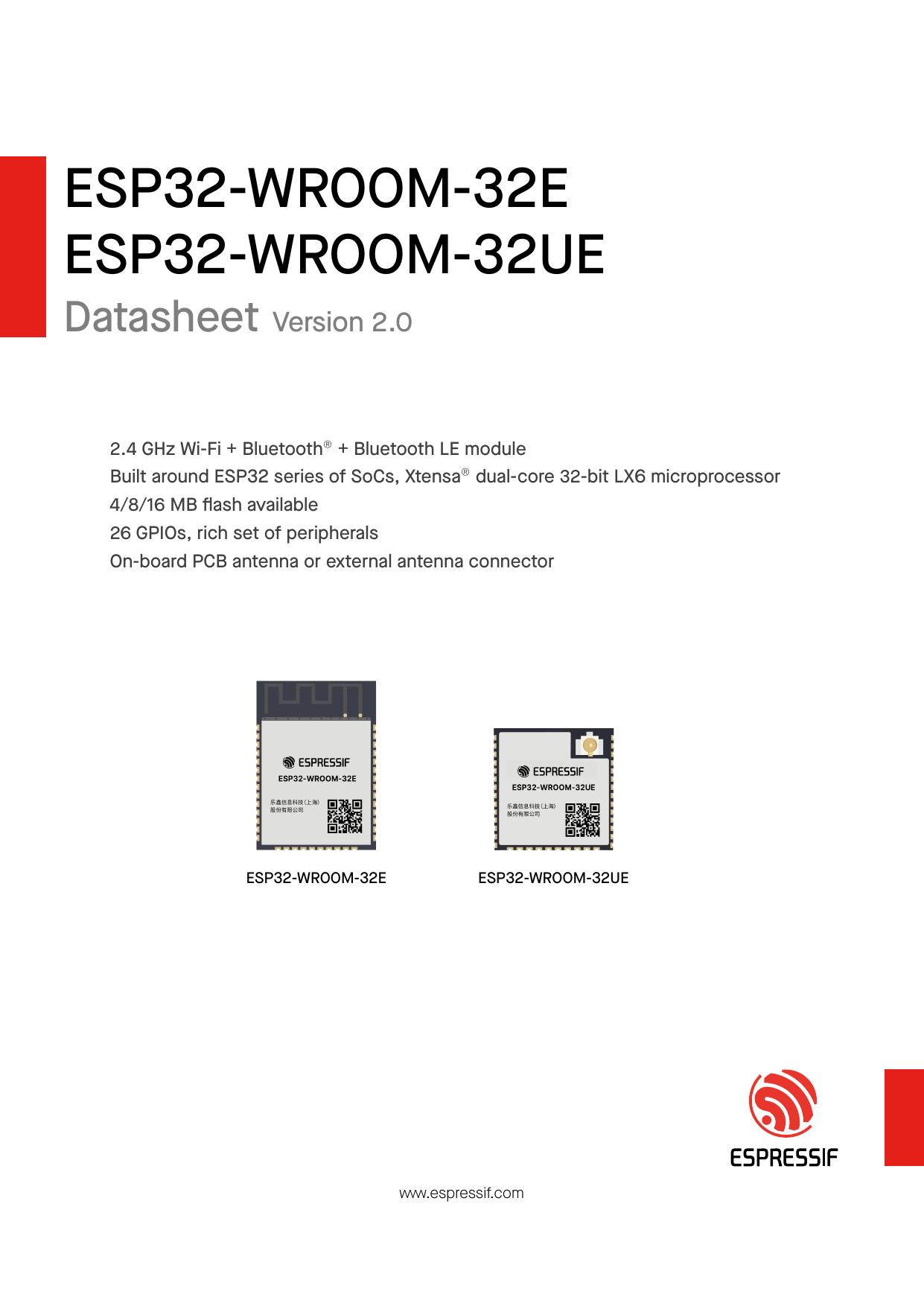

The ESP32-WROOM-32E-N4 is a powerful, generic Wi-Fi + BT + BLE MCU module designed for a wide variety of applications, ranging from low-power sensor networks to demanding tasks such as voice encoding, music streaming, and MP3 decoding. It is based on the ESP32-D0WD-V3 SoC, featuring two individually controllable CPU cores with an adjustable clock frequency from 80 MHz to 240 MHz. The module integrates 4MB of external SPI flash and supports an operating temperature range of -40°C to 85°C. It includes an on-board PCB antenna and a rich set of peripherals including touch sensors, Hall sensors, and high-speed SPI/UART/I2C interfaces.
Similar Components
ESP32-S3-DevKitC-1
Dual-core microcontroller SoC integrates 2.4 GHz Wi-Fi 4 and Bluetooth LE 5 connectivity for AIoT applications. The device uses an Xtensa LX7 32-bit dual-core CPU running up to 240 MHz with 512 KB SRAM and 384 KB ROM. It provides up to 45 programmable GPIOs plus I2C, I2S, SPI, UART, USB OTG, ADC, touch, SD/MMC host and TWAI interfaces. The QFN56 package operates from 3.0 V to 3.6 V and supports an extended temperature range up to 105 °C for the base ESP32-S3 variant.
STM32G431C8T6
Mainstream Arm Cortex-M4+ MCU 170MHz with 64Kbytes of Flash memory, Math Accelerator, Medium Analog level integration
ATtiny45-20PU
8-bit AVR microcontroller featuring 4KB Flash memory and 256B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 6 I/Os, 4 ADC channels, 6 PWM channels, 2 timers/counters, and single I2C, SPI, and UART interfaces. Packaged in an 8-pin PDIP for through-hole mounting, with a supply voltage range of 2.7V to 5.5V and an operating temperature range of -40°C to 85°C. RoHS compliant.
ATMEGA2560V-8AU
8-Bit 8MHz MCU 256KB FLASH AVR 100TQFP
PIC16F18446-I/SS
8-bit RISC microcontroller featuring 18 I/O lines and a maximum clock frequency of 32 MHz. This industrial-grade component operates within a temperature range of -40°C to 85°C and supports a supply voltage from 2.5V to 5.5V. Includes PWM channels and a DAC, with an integrated ADC. Packaged in a 20-terminal, 7.2mm x 5.3mm surface-mount device.
ATMEGA4809-AFR
16-Bit RISC MCU, 20MHz, 41 I/O, FLASH, 512B RAM, S-PQFP-G48
About ESP32
The SCHTOETA ENGINEERING LIMITED ESP32 Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The ESP32-WROOM-32E-N4 is a powerful, generic Wi-Fi + BT + BLE MCU module designed for a wide variety of applications, ranging from low-power sensor networks to demanding tasks such as voice encoding, music streaming, and MP3 decoding. It is based on the ESP32-D0WD-V3 SoC, featuring two individually controllable CPU cores with an adjustable clock frequency from 80 MHz to 240 MHz. The module integrates 4MB of external SPI flash and supports an operating temperature range of -40°C to 85°C. It includes an on-board PCB antenna and a rich set of peripherals including touch sensors, Hall sensors, and high-speed SPI/UART/I2C interfaces.. Key parameters include Antenna Type: On-board PCB Antenna, Bluetooth Version: V4.2 BR/EDR and BLE, Core Frequency: 240MHz, Data Rate (Max): 150Mbps, and Flash Memory Size: 4MB. ESP32 is manufactured by SCHTOETA ENGINEERING LIMITED as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- SCHTOETA ENGINEERING LIMITED
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about ESP32 specifications
Click to ask a quick question:
Parameters
| Antenna Type | On-board PCB Antenna |
| Bluetooth Version | V4.2 BR/EDR and BLE |
| Core Frequency | 240MHz |
| Data Rate (Max) | 150Mbps |
| Flash Memory Size | 4MB |
| Interface | UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, Pulse Counter, GPIO, Capacitive Touch Sensor, ADC, DAC |
| Microcontroller | ESP32-D0WD-V3 (Xtensa Dual-Core 32-bit LX6) |
| Operating Temperature Range | -40 to 85°C |
| Operating Voltage | 3.0 to 3.6V |
| Output Power | 20dBm |
| Regulatory | FCC/CE/IC/TELEC/KCC/SRRC/NCC |
| RF Frequency Range | 2412 to 2484MHz |
| RoHS | Compliant |
| SRAM | 520KB |
| Wi-Fi Protocol | 802.11 b/g/n |
