TJA1050T/CM

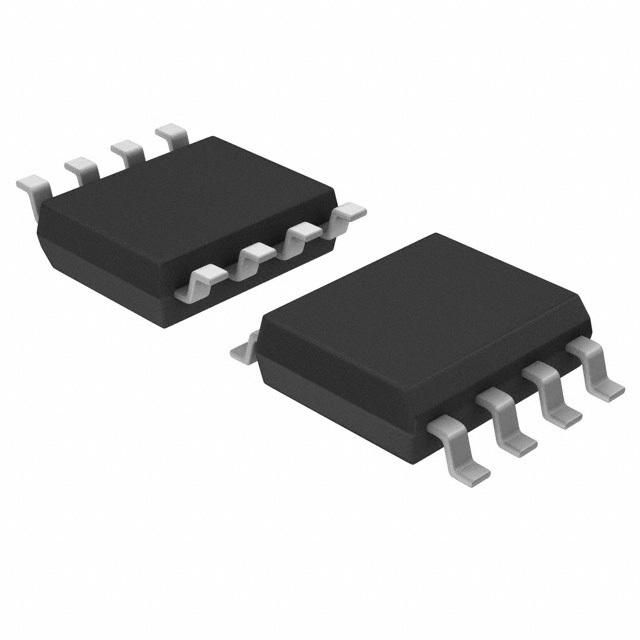

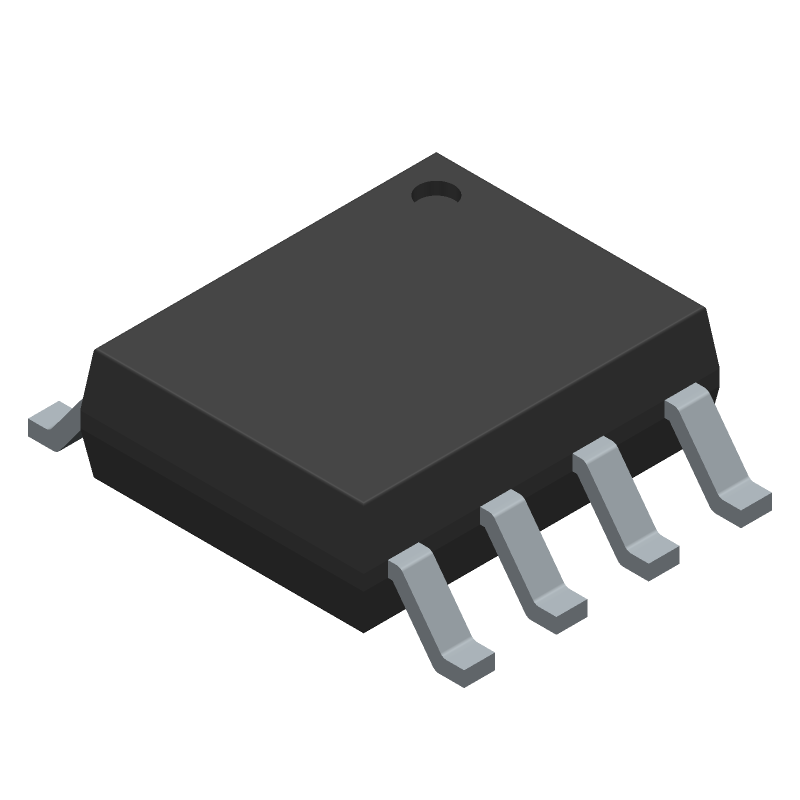

IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8, Network Interface
Similar Components
74HC245D,653
The 74HC245D653 is an 8-bit inverting transceiver from NXP, featuring 8 inputs and 8 outputs. It operates over a temperature range of -40°C to 125°C and is packaged in a lead-free SOIC package. The device can handle a maximum supply voltage of 6V and a minimum supply voltage of 2V. It is designed for surface mount applications and is not compliant with Reach SVHC regulations.
74HC4066
The 74HC4066D653 is a 4-channel multiplexer/demultiplexer from NXP, packaged in a surface mount SO package. It operates over a temperature range of -40°C to 125°C and can handle a maximum supply voltage of 10V. The device has 8 inputs and 4 outputs, with an on-state resistance of 128 ohms and an operating supply current of 40uA. It is lead-free and compliant with standard logic functions.
BC856B
NEXPERIA - BC856B. - TRANSISTOR, PNP SOT-23
74HC4040D
IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 12-BIT UP BINARY COUNTER, PDSO16, 3.90 MM, PLASTIC, MS-012, SOT-109-1, SOP-16, Counter
PCF8591
8-bit, general-purpose data conversion device featuring a single analog-to-digital converter and a single digital-to-analog converter. This integrated circuit utilizes an I2C serial interface for communication and is housed in a surface-mount SO package. Operating within a supply voltage range of 2.5V to 6V, it offers an 8-bit resolution and a sampling rate of 11.1 kS/s with a 40dB signal-to-noise ratio. The device operates across a temperature range of -40°C to 85°C and is RoHS compliant.
PCF8575TS/1,118
16-Bit I/O Expander, I2C, 400kHz, SSOP
About TJA1050T/CM

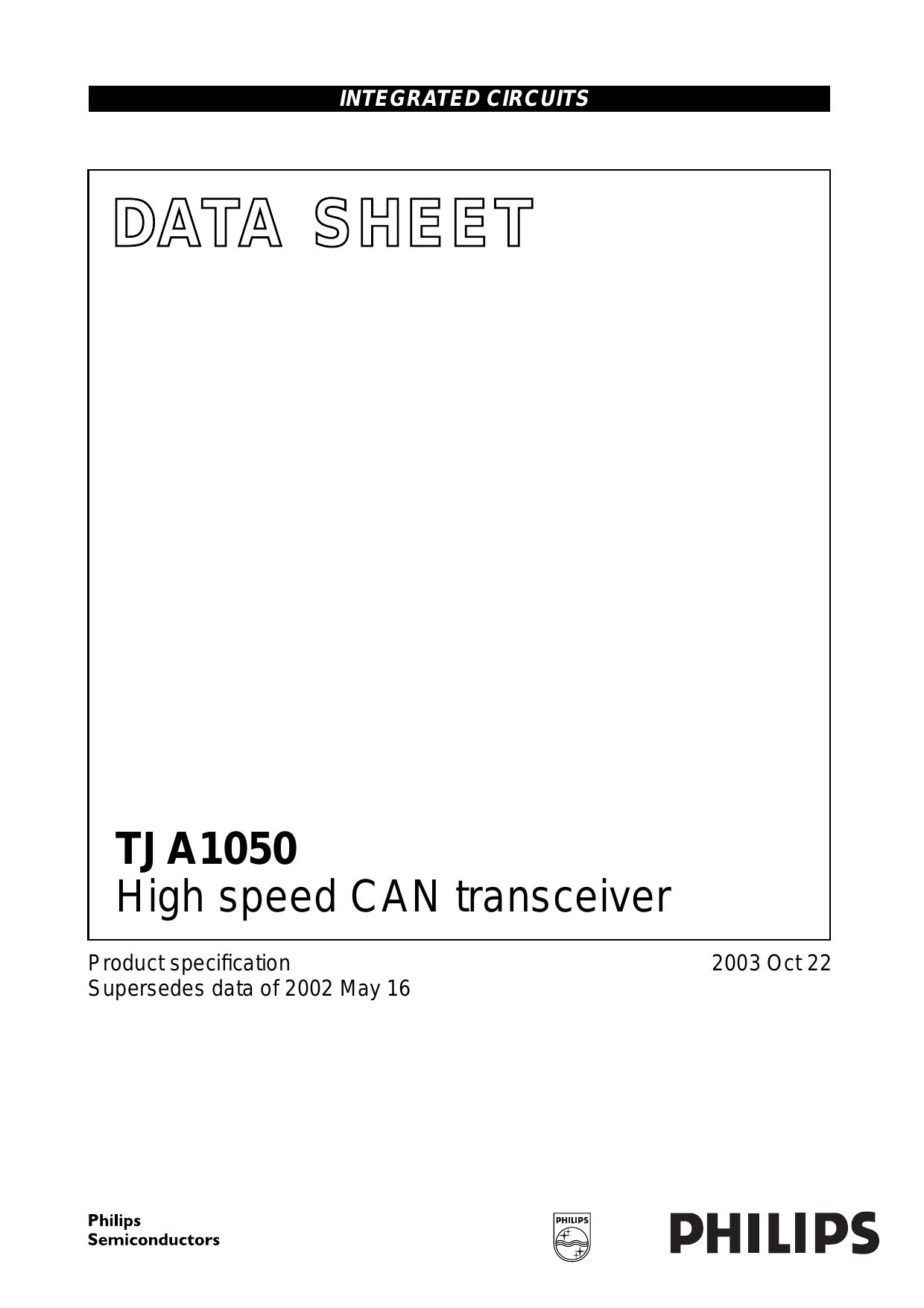

The NXP TJA1050T/CM Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: IC DATACOM, INTERFACE CIRCUIT, PDSO8, 3.90 MM, PLASTIC, MS-012, SOT96-1, SOP-8, Network Interface. Key parameters include HTS Code: 8542.39.00.01, JEDEC Package Code: R-PDSO-G8, Length: 4.9, Military Spec: False, and Number of Functions: 1. TJA1050T/CM is manufactured by NXP as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- NXP
- Category
- Semiconductors
Ask AI Assistant
Ask questions about TJA1050T/CM specifications
Click to ask a quick question:
Parameters
| HTS Code | 8542.39.00.01 |
| JEDEC Package Code | R-PDSO-G8 |
| Length | 4.9 |
| Military Spec | False |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Pin Count | 8 |
| REACH | unknown |
| Supply Voltage-Nom | 5 |
| Terminal Position | DUAL |
| Width | 3.9 |
