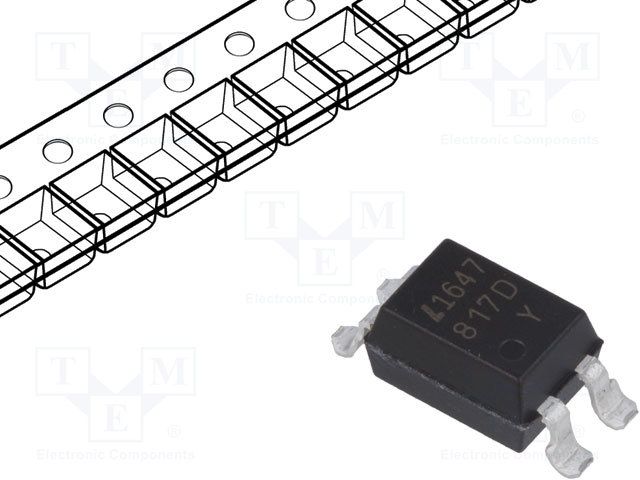

LTV-817S-TA1-D
General purpose optocoupler featuring 5kV isolation voltage and a 1-channel transistor output. Surface mount package with a 4-pin configuration, offering a 35V collector-emitter voltage and 50mA maximum collector current. Achieves a 600% current transfer ratio with a 20mA forward current and 200mV collector-emitter saturation voltage. Operates within a -30°C to 100°C temperature range, with 3µs turn-on and 4µs turn-off delay times.
Similar Components
MOC3023M
OPTOISOLATOR 5KV TRIAC 6DIP
MOC3021M
OPTOISOLATOR 5KV TRIAC 6DIP
MOC3063
High-performance optoisolator featuring 5kV isolation voltage, designed for TRIAC driver applications. This general-purpose optocoupler offers a 600V output voltage and operates with a nominal input voltage of 1.2V, requiring a maximum input current of 50mA. Encased in a PDIP package for through-hole mounting, it boasts a hold current of 400µA and a turn-on delay time of 20µs. Operating across a temperature range of -40°C to 100°C, this lead-free and RoHS compliant component ensures reliable isolation in demanding electronic systems.
4N35
Single-channel DC input optocoupler featuring a transistor output. Offers 5kV isolation voltage with a maximum of 5.3kV. Key specifications include a 70V collector-emitter voltage (VCEO), 100mA maximum collector current, and a 50% current transfer ratio. Designed for through-hole mounting in a 6-pin DIP package, this RoHS compliant component operates from -55°C to 100°C.
MOC3021
The MOC3021 is a single-channel optocoupler with a maximum input current of 50mA and an output voltage of 400V. It features a hold current of 250uA and an isolation voltage of 5kV. The device is packaged in a DIP package and is mounted through a hole. It operates over a temperature range of -40°C to 100°C and is compliant with RoHS regulations.
MOC3020
Triac & SCR Output Optocouplers Optocoupler TRIAC; Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
About LTV-817S-TA1-D
The Vishay LTV-817S-TA1-D Optoelectronics Displays datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: General purpose optocoupler featuring 5kV isolation voltage and a 1-channel transistor output. Surface mount package with a 4-pin configuration, offering a 35V collector-emitter voltage and 50mA maximum collector current. Achieves a 600% current transfer ratio with a 20mA forward current and 200mV collector-emitter saturation voltage. Operates within a -30°C to 100°C temperature range, with 3µs turn-on and 4µs turn-off delay times.. Key parameters include Collector Emitter Saturation Voltage: 200mV, Collector-emitter Voltage-Max: 200mV, Collector Emitter Voltage (VCEO): 35V, Current Transfer Ratio: 600%, and Fall Time: 18000ns. LTV-817S-TA1-D is manufactured by Vishay as part of their Optoelectronics Displays product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Vishay
- Category
- Optoelectronics Displays
Ask AI Assistant
Ask questions about LTV-817S-TA1-D specifications
Click to ask a quick question:
Parameters
| Collector Emitter Saturation Voltage | 200mV |
| Collector-emitter Voltage-Max | 200mV |
| Collector Emitter Voltage (VCEO) | 35V |
| Current Transfer Ratio | 600% |
| Fall Time | 18000ns |
| Forward Current | 20mA |
| Height | 4.6mm |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 100°C |
| Max Output Voltage | 35V |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package/Case | SMD/SMT |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage | 6V |
| RoHS | Compliant |
| Turn-Off Delay Time | 4us |
| Turn-On Delay Time | 3us |
