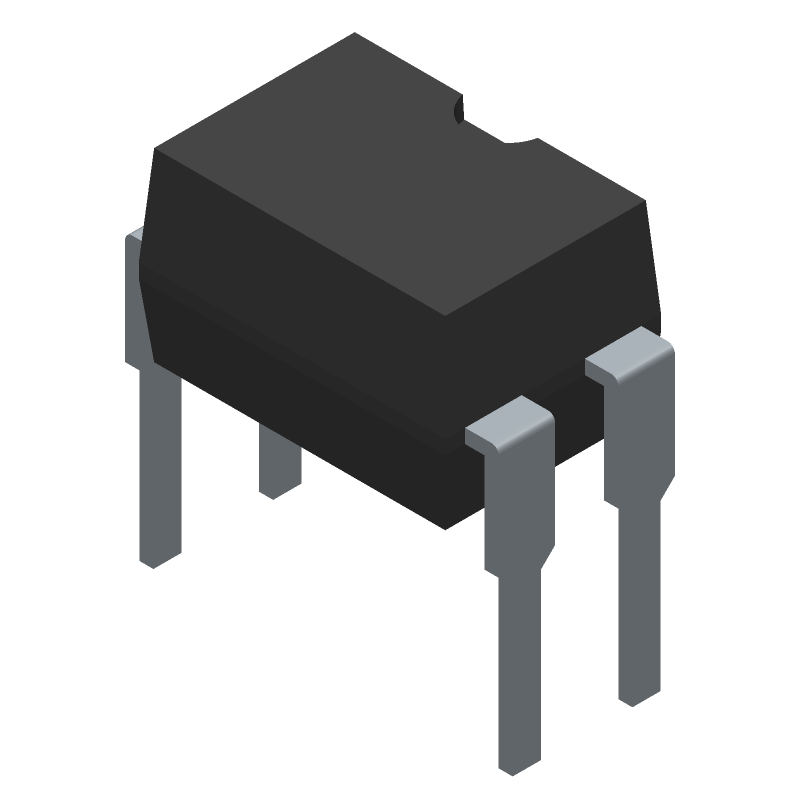

EL817C
Transistor Output Optocoupler, 1-Element, 5000V Isolation, DIP-4
Similar Components
EL817B
Transistor Output Optocoupler, 1-Element, 5000V Isolation, DIP-4
6N137
General purpose optocoupler featuring a DIP package for through-hole mounting. Offers 5kV isolation voltage and a 10Mbps data rate, with a 1-element configuration. Specifications include a 75ns propagation delay and fall time, 50mA forward and output current, and a maximum output voltage of 7V. Operates within a temperature range of -40°C to 85°C, with a maximum power dissipation of 100mW. This component is RoHS compliant.
H11L1
General purpose, unidirectional logic IC output optocoupler featuring 5kV isolation voltage and 1Mbps data rate. This DIP-packaged component offers a 100ns fall time and 4µs propagation delay, with a maximum output current of 50mA. Designed for through-hole mounting, it operates across a wide temperature range of -55°C to 100°C and is RoHS compliant.
6N139
The Everlight 6N139 is a general-purpose optocoupler with a maximum output voltage of 18V and an output current per channel of 60mA. It has a maximum power dissipation of 100mW and is packaged in a DIP-8 format. The device operates over a temperature range of -40°C to 85°C and is RoHS compliant. It features a high current transfer ratio of 2000% and a fast fall time of 10us.
About EL817C
The Everlight EL817C Optoelectronics Displays datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Transistor Output Optocoupler, 1-Element, 5000V Isolation, DIP-4. Key parameters include HTS Code: 8541.40.80.00, Lead Free: Yes, Max Operating Temperature: 110, Military Spec: False, and Min Operating Temperature: -55. EL817C is manufactured by Everlight as part of their Optoelectronics Displays product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Everlight
- Category
- Optoelectronics Displays
Ask AI Assistant
Ask questions about EL817C specifications
Click to ask a quick question:
Parameters
| HTS Code | 8541.40.80.00 |
| Lead Free | Yes |
| Max Operating Temperature | 110 |
| Military Spec | False |
| Min Operating Temperature | -55 |
| Number of Elements | 1 |
| Power Dissipation-Max | 0.15 |
| REACH | Compliant |
| RoHS | Yes |
