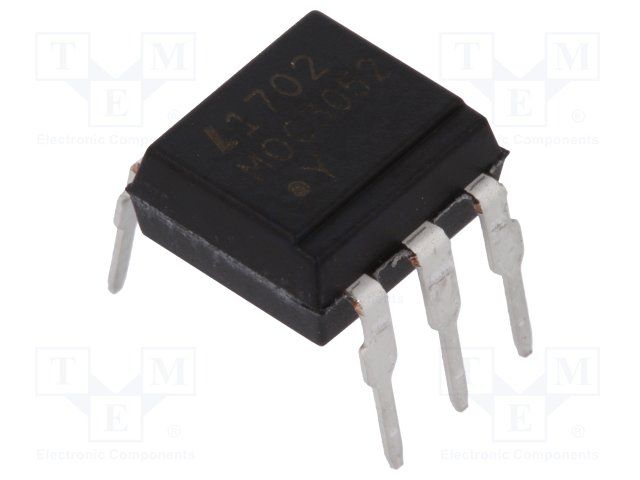

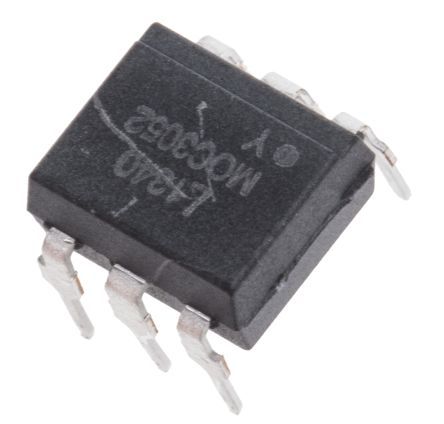

MOC3052
50mA 600V 1.15V Two-way thyristor DIP-6 Optocouplers - Thyristor Signal Output ROHS
Similar Components
6N138
General purpose transistor output optocoupler featuring 1-element design and 5kV isolation voltage. Offers a high current transfer ratio of 1600% with a maximum collector current of 60mA. Operates with a forward current of 20mA and an input current of 1.6mA, supporting DC input. Packaged in a DIP through-hole mount, this RoHS compliant component has a maximum power dissipation of 100mW and an operating temperature range of -20°C to 100°C.
MOC3063
High-performance optoisolator featuring 5kV isolation voltage, designed for TRIAC driver applications. This general-purpose optocoupler offers a 600V output voltage and operates with a nominal input voltage of 1.2V, requiring a maximum input current of 50mA. Encased in a PDIP package for through-hole mounting, it boasts a hold current of 400µA and a turn-on delay time of 20µs. Operating across a temperature range of -40°C to 100°C, this lead-free and RoHS compliant component ensures reliable isolation in demanding electronic systems.
MOC3023M
OPTOISOLATOR 5KV TRIAC 6DIP
MOC3021
The MOC3021 is a single-channel optocoupler with a maximum input current of 50mA and an output voltage of 400V. It features a hold current of 250uA and an isolation voltage of 5kV. The device is packaged in a DIP package and is mounted through a hole. It operates over a temperature range of -40°C to 100°C and is compliant with RoHS regulations.
6N136
1-channel optocoupler featuring a DC input and transistor output, designed for through-hole mounting in an 8-pin DIP package. Achieves 1Mbps data rate with a 5ns fall time. Offers 5.3kV isolation voltage and operates across a -55°C to 100°C temperature range. Key specifications include 1.6mA input current, 8mA output current, and a 35% current transfer ratio. UL, CSA, and VDE approved, this RoHS compliant component is suitable for various isolation applications.
4N35
Single-channel DC input optocoupler featuring a transistor output. Offers 5kV isolation voltage with a maximum of 5.3kV. Key specifications include a 70V collector-emitter voltage (VCEO), 100mA maximum collector current, and a 50% current transfer ratio. Designed for through-hole mounting in a 6-pin DIP package, this RoHS compliant component operates from -55°C to 100°C.
About MOC3052
The Vishay MOC3052 Optoelectronics Displays datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 50mA 600V 1.15V Two-way thyristor DIP-6 Optocouplers - Thyristor Signal Output ROHS. Key parameters include Forward Current: 50mA, Hold Current: 400uA, Isolation Voltage: 5kV, Lead Free: Lead Free, and Max Input Current: 50mA. MOC3052 is manufactured by Vishay as part of their Optoelectronics Displays product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Vishay
- Category
- Optoelectronics Displays
Ask AI Assistant
Ask questions about MOC3052 specifications
Click to ask a quick question:
Parameters
| Forward Current | 50mA |
| Hold Current | 400uA |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Input Current | 50mA |
| Max Input Voltage | 1.4V |
| Max Operating Temperature | 100°C |
| Max Power Dissipation | 330mW |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Nominal Input Voltage | 1.2V |
| Number of Channels | 1 |
| Package/Case | PDIP |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 200us |
