4N25
DC input optocoupler featuring a single channel transistor output. Offers 5kV isolation voltage and a 30V collector-emitter breakdown voltage. Maximum collector current is 100mA with a 50mA forward current. This 6-pin DIP package component supports through-hole mounting and operates within a -55°C to 100°C temperature range. Approvals include UL and VDE.
Similar Components
6N138
General purpose transistor output optocoupler featuring 1-element design and 5kV isolation voltage. Offers a high current transfer ratio of 1600% with a maximum collector current of 60mA. Operates with a forward current of 20mA and an input current of 1.6mA, supporting DC input. Packaged in a DIP through-hole mount, this RoHS compliant component has a maximum power dissipation of 100mW and an operating temperature range of -20°C to 100°C.
4N35
Single-channel DC input optocoupler featuring a transistor output. Offers 5kV isolation voltage with a maximum of 5.3kV. Key specifications include a 70V collector-emitter voltage (VCEO), 100mA maximum collector current, and a 50% current transfer ratio. Designed for through-hole mounting in a 6-pin DIP package, this RoHS compliant component operates from -55°C to 100°C.
MOC3023
The MOC3023 is a single-channel optocoupler with a maximum operating temperature of 100°C and a minimum operating temperature of -40°C. It features a maximum input current of 50mA and a maximum output voltage of 400V. The device is packaged in a DIP package and is mounted through a hole. It is RoHS compliant and has a hold current of 250uA with an isolation voltage of 5kV.
MOC3023M
OPTOISOLATOR 5KV TRIAC 6DIP
MOC3021M
OPTOISOLATOR 5KV TRIAC 6DIP
6N136
1-channel optocoupler featuring a DC input and transistor output, designed for through-hole mounting in an 8-pin DIP package. Achieves 1Mbps data rate with a 5ns fall time. Offers 5.3kV isolation voltage and operates across a -55°C to 100°C temperature range. Key specifications include 1.6mA input current, 8mA output current, and a 35% current transfer ratio. UL, CSA, and VDE approved, this RoHS compliant component is suitable for various isolation applications.
About 4N25

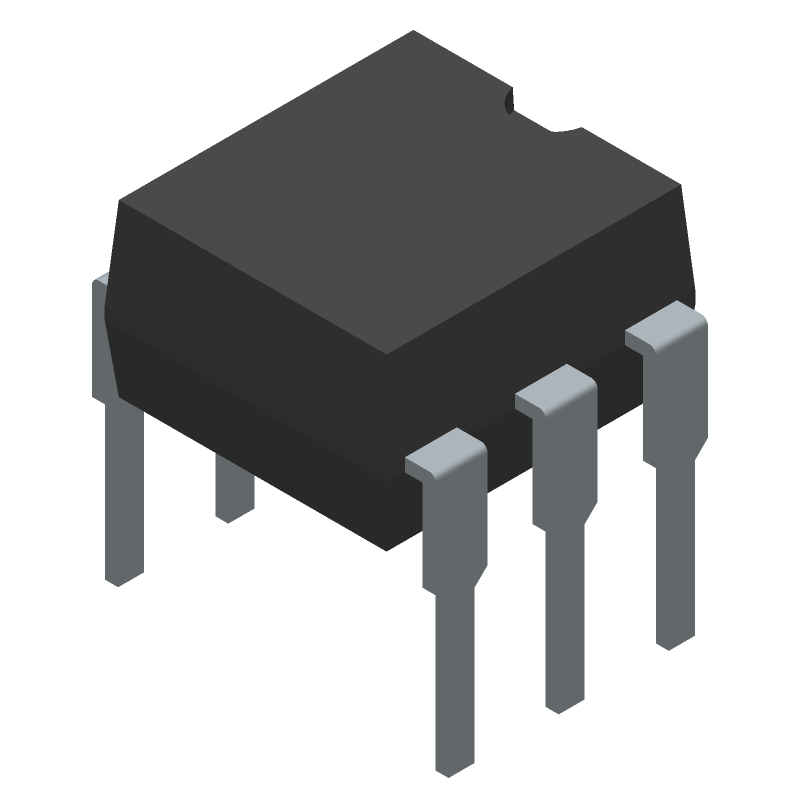

The Vishay 4N25 Optoelectronics Displays datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: DC input optocoupler featuring a single channel transistor output. Offers 5kV isolation voltage and a 30V collector-emitter breakdown voltage. Maximum collector current is 100mA with a 50mA forward current. This 6-pin DIP package component supports through-hole mounting and operates within a -55°C to 100°C temperature range. Approvals include UL and VDE.. Key parameters include Approvals: UL, VDE, Collector Emitter Breakdown Voltage: 30V, Collector Emitter Saturation Voltage: 500mV, Collector-emitter Voltage-Max: 500mV, and Contact Plating: Tin. 4N25 is manufactured by Vishay as part of their Optoelectronics Displays product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Vishay
- Category
- Optoelectronics Displays
Ask AI Assistant
Ask questions about 4N25 specifications
Click to ask a quick question:
Parameters
| Approvals | UL, VDE |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector-emitter Voltage-Max | 500mV |
| Contact Plating | Tin |
| Current Transfer Ratio | 50% |
| Forward Current | 60mA |
| Height | 4.8mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Operating Temperature | 100°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 250mW |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 30V |
| Package/Case | DIP |
| Package Quantity | 65 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
