LM7809

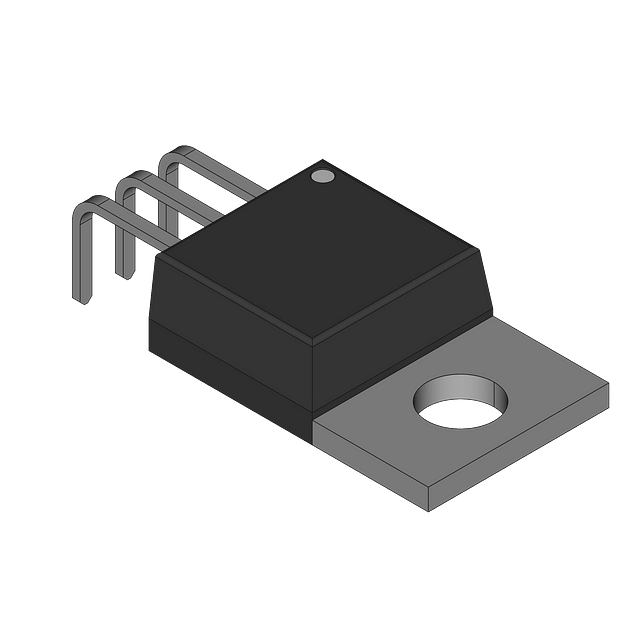

The LM7809 is a single output linear voltage regulator with a nominal output voltage of 9V. It can handle a maximum input voltage of 26V and a maximum output current of 1.5A. The device is packaged in a JEDEC R-PSFM-T3 package and operates over a temperature range of 0 to 125°C. The LM7809 is compliant with TS 16949 screening level.
Similar Components
HT7330-A
Fixed Positive LDO Regulator,
L78L08ACZ
Positive fixed voltage regulator IC, offering an 8V nominal output with 100mA maximum output current. Features a 1.7V dropout voltage and a wide input voltage range from 10V to 30V. Operates across a temperature range of 0°C to 150°C and boasts a 45dB PSRR. Packaged in a TO-92 through-hole mount, this RoHS compliant component is ideal for power management applications.
MP1584EN-LF-Z
High-performance switching regulator, current-mode control, featuring a maximum switching frequency of 1500kHz. This integrated circuit offers adjustable positive output voltage from 800mV to 25V, with a maximum output current of 3A. Designed for surface mounting, it operates within an input voltage range of 4.5V to 28V and a temperature range of -20°C to 85°C. The component is supplied in a SOIC package, RoHS compliant, and packaged on tape and reel.
TPS5430DDAR
Surface mount DC/DC step-down converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, delivering up to 3A output current. Operates at 500kHz with up to 95% efficiency. Packaged in an 8-SO PowerPAD HSOP, this lead-free, RoHS compliant component is suitable for operation between -40°C and 125°C.
LM2587S-ADJ/NOPB
Adjustable Flyback Boost Regulator, 4-40V In, 5A Out, 115kHz, TO-263
RT9193-30GB
300mA, Ultra-Low Noise, Ultra-Fast CMOS LDO Regulator, SOT23-5
About LM7809
The Continental Device India LM7809 Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The LM7809 is a single output linear voltage regulator with a nominal output voltage of 9V. It can handle a maximum input voltage of 26V and a maximum output current of 1.5A. The device is packaged in a JEDEC R-PSFM-T3 package and operates over a temperature range of 0 to 125°C. The LM7809 is compliant with TS 16949 screening level.. Key parameters include Input Voltage-Max: 26, Input Voltage-Min: 11.5, JEDEC Package Code: R-PSFM-T3, Military Spec: False, and Number of Functions: 1. LM7809 is manufactured by Continental Device India as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Continental Device India
- Category
- Power Supplies
Ask AI Assistant
Ask questions about LM7809 specifications
Click to ask a quick question:
Parameters
| Input Voltage-Max | 26 |
| Input Voltage-Min | 11.5 |
| JEDEC Package Code | R-PSFM-T3 |
| Military Spec | False |
| Number of Functions | 1 |
| Number of Terminals | 3 |
| Operating Temperature TJ-Max | 125 |
| Operating Temperature TJ-Min | 0 |
| Output Current1-Max | 1.5 |
| Output Voltage1-Max | 9.35 |
| Output Voltage1-Min | 8.65 |
| Output Voltage1-Nom | 9 |
| REACH | Compliant |
| Screening Level | TS 16949 |
| Terminal Position | SINGLE |
