LM7812

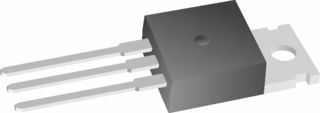

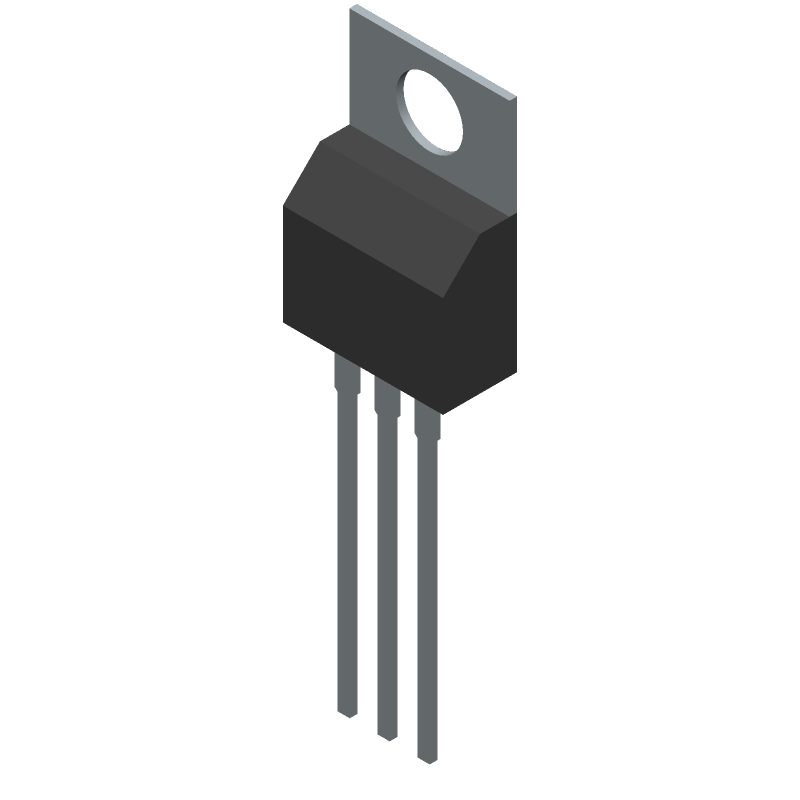

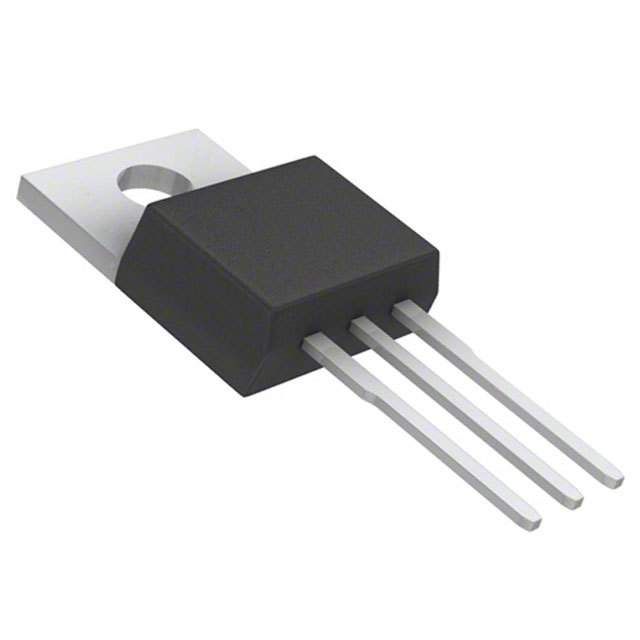

The LM7812 is a single output linear voltage regulator with a nominal output voltage of 12V. It can handle a maximum output current of 1.5A and has a maximum input voltage of 30V. The device is packaged in a JEDEC R-PSFM-T3 package and is suitable for operation over a temperature range of 0 to 125°C. The LM7812 is manufactured by Continental Device India and meets the TS 16949 screening level.
Similar Components
LT1370IR#PBF
Adjustable DC/DC Controller, 6A, 35V, 30V In, D2PAK
LM2675M-12/NOPB
12V 1A Step-Down Regulator, 6.5-40V In, 94% Eff, SOIC
REF02CPZ
5V precision voltage reference and temperature transducer IC, featuring a fixed 5V output voltage with 1% tolerance. Operates with a minimum input voltage of 7V and a maximum of 40V, supporting up to 8mA output current. This series reference IC has a wide operating temperature range from -55°C to 125°C and a typical supply current of 1mA. Packaged in a lead-containing DIP package, it is RoHS compliant.
LM338T/NOPB
5A Adj. LDO Regulator, 40V In, TO-220, 1.24-32V Out
MC34063EBD-TR
DC-DC Controller, 40V In, 1.5A Out, Boost, SO, SM
ADR4525BRZ
2.5V fixed output voltage reference IC, offering 0.02% initial accuracy and ultra-low noise performance. Designed for operation with input voltages from 3V to 15V, this series reference IC provides a stable 2.5V output with a maximum output current of 10mA. It operates within a temperature range of -40°C to 125°C, consuming 950µA of supply current. The component is supplied in a compact R package, measuring 5mm in length, 4mm in width, and 1.5mm in height.
About LM7812
The Continental Device India LM7812 Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The LM7812 is a single output linear voltage regulator with a nominal output voltage of 12V. It can handle a maximum output current of 1.5A and has a maximum input voltage of 30V. The device is packaged in a JEDEC R-PSFM-T3 package and is suitable for operation over a temperature range of 0 to 125°C. The LM7812 is manufactured by Continental Device India and meets the TS 16949 screening level.. Key parameters include Input Voltage-Max: 30, Input Voltage-Min: 14.5, JEDEC Package Code: R-PSFM-T3, Military Spec: False, and Number of Functions: 1. LM7812 is manufactured by Continental Device India as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Continental Device India
- Category
- Power Supplies
Ask AI Assistant
Ask questions about LM7812 specifications
Click to ask a quick question:
Parameters
| Input Voltage-Max | 30 |
| Input Voltage-Min | 14.5 |
| JEDEC Package Code | R-PSFM-T3 |
| Military Spec | False |
| Number of Functions | 1 |
| Number of Terminals | 3 |
| Operating Temperature TJ-Max | 125 |
| Operating Temperature TJ-Min | 0 |
| Output Current1-Max | 1.5 |
| Output Voltage1-Max | 12.5 |
| Output Voltage1-Min | 11.5 |
| Output Voltage1-Nom | 12 |
| REACH | Compliant |
| Screening Level | TS 16949 |
| Terminal Position | SINGLE |
