IRF730PBF

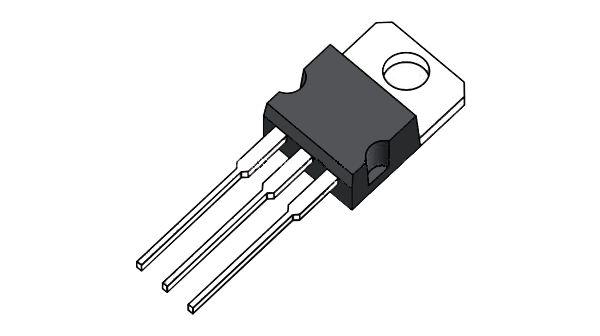

N-Channel Power MOSFET, TO-220AB package, featuring 400V Drain-Source Breakdown Voltage and 5.5A Continuous Drain Current. Offers a low 1-ohm Drain-Source On-Resistance and 74W Max Power Dissipation. Designed for through-hole mounting, this silicon Metal-oxide Semiconductor FET operates within a -55°C to 150°C temperature range and is RoHS compliant. Key switching characteristics include a 10ns Turn-On Delay Time and 14ns Fall Time.
Similar Components
SI4835DDY-T1-GE3
P-channel, silicon, surface-mount field-effect transistor with 8.7A continuous drain current and -30V drain-to-source voltage. Features 18mΩ maximum drain-source on-resistance, 1.96nF input capacitance, and 2.5W power dissipation. Operates across a -55°C to 150°C temperature range. Packaged in SOIC for tape and reel mounting.
MMSZ4699
Zener Diode, 12V V(Z), 5%, 0.5W, Silicon, Unidirectional,
SI2301CDS-T1-GE3
P-channel MOSFET, TO-236 package, designed for general-purpose small signal applications. Features a continuous drain current of 2.3A and a drain-source voltage of -20V. Offers a low drain-source on-resistance of 112mR at a gate-source voltage of -4.5V. Operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 1.6W. This surface-mount component is supplied in tape and reel packaging and is RoHS compliant.
LTV-817S-TA1-C
Single channel transistor output optocoupler, featuring 5kV isolation voltage and 35V collector-emitter voltage. This surface mount device offers a 400% current transfer ratio and a maximum collector current of 50mA. With a 200mV collector-emitter saturation voltage and 200mW maximum power dissipation, it operates from -30°C to 110°C.
SI7852DP-T1-GE3
N-channel PowerPAK SO MOSFET, 80V drain-source voltage, 7.6A continuous drain current, and 16.5mΩ drain-source resistance. Features include 2V threshold voltage, 17ns turn-on delay, 40ns turn-off delay, and 31ns fall time. Operating temperature range from -55°C to 150°C with 1.9W maximum power dissipation. Surface mount design with 4.9mm length, 5.89mm width, and 1.04mm height.
IRFZ44N
N-Channel Enhancement-Mode MOSFET with dynamic dv/dt rating, repetitive avalanche rated, 175°C operating temperature, ease of paralleling, fast switching for high efficiency, and simple drive requirements. Packaged in JEDEC TO-220AB molded plastic body. Terminals are solderable per MIL-STD-750, Method 2026. High temperature soldering is guaranteed at 250°C/10 seconds, 0.17\" (4.3mm) from case. Mounting torque is 10 in-lbs maximum. Weight is 2.0g.
About IRF730PBF
The Vishay IRF730PBF Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: N-Channel Power MOSFET, TO-220AB package, featuring 400V Drain-Source Breakdown Voltage and 5.5A Continuous Drain Current. Offers a low 1-ohm Drain-Source On-Resistance and 74W Max Power Dissipation. Designed for through-hole mounting, this silicon Metal-oxide Semiconductor FET operates within a -55°C to 150°C temperature range and is RoHS compliant. Key switching characteristics include a 10ns Turn-On Delay Time and 14ns Fall Time.. Key parameters include Continuous Drain Current (ID): 5.5A, Current: 55A, Current Rating: 5.5A, DC Rated Voltage: 400V, and Drain-source On Resistance-Max: 1R. IRF730PBF is manufactured by Vishay as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Vishay
- Category
- Semiconductors
Ask AI Assistant
Ask questions about IRF730PBF specifications
Click to ask a quick question:
Parameters
| Continuous Drain Current (ID) | 5.5A |
| Current | 55A |
| Current Rating | 5.5A |
| DC Rated Voltage | 400V |
| Drain-source On Resistance-Max | 1R |
| Drain to Source Breakdown Voltage | 400V |
| Drain to Source Resistance | 1R |
| Drain to Source Voltage (Vdss) | 400V |
| Fall Time | 14ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 9.01mm |
| Input Capacitance | 700pF |
| Lead Free | Lead Free |
| Length | 10.41mm |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 74W |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Nominal Vgs | 4V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Package/Case | TO-220AB |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Polarization | N |
| Power Dissipation | 74W |
| Radiation Hardening | No |
| Rds On Max | 1R |
| Reach SVHC Compliant | Unknown |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Threshold Voltage | 4V |
| Turn-Off Delay Time | 38ns |
| Turn-On Delay Time | 10ns |
| Voltage | 400V |
| Weight | 0.211644oz |
| Width | 4.7mm |
