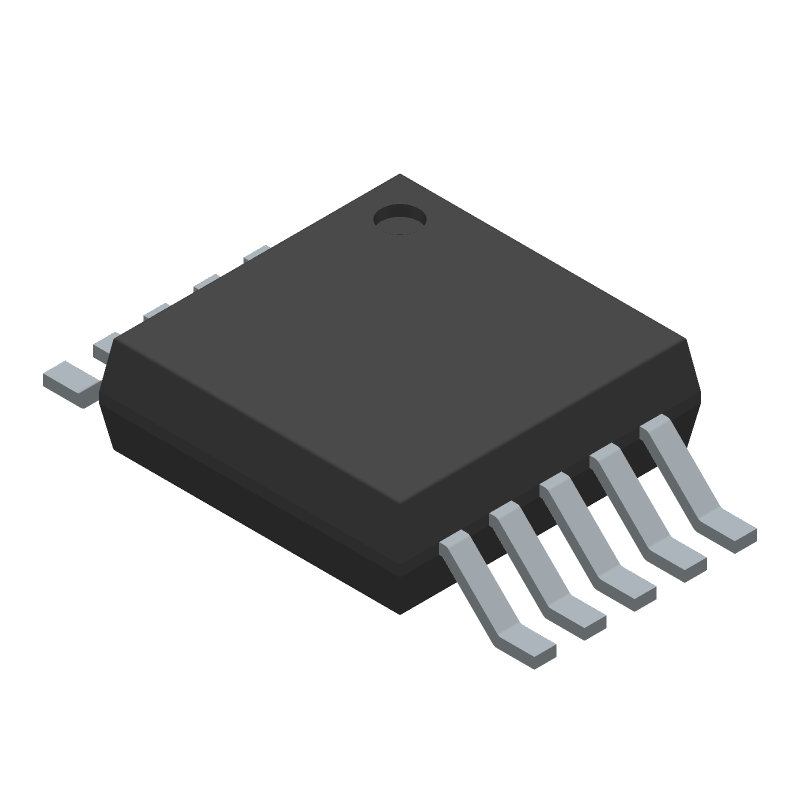

INA226AIDGSR
High-precision supervisory circuit for monitoring voltage and current. Features a 0.02% accuracy and 3.5kHz bandwidth, operating from a 2.7V to 5.5V supply. This single-amplifier IC offers a 140dB Common Mode Rejection Ratio and a low input offset voltage of 2.5uV. Packaged in a 10-pin VSSOP for surface mounting, it operates within a -40°C to 125°C temperature range.
Similar Components
INA226
Current shunt and power monitor measures shunt voltage and bus supply voltage through an I2C- or SMBus-compatible interface. The device senses bus voltages from 0 V to 36 V and operates from a 2.7 V to 5.5 V supply. It provides 16-bit resolution with programmable calibration, conversion time, averaging, and alert-limit functions. The monitor supports high-side or low-side sensing, 16 programmable addresses, and operation from -40 °C to 125 °C in a 10-pin VSSOP package.
INA219
High-precision current and voltage monitoring IC with 0.5% accuracy. Features a 3V to 5.5V operating supply voltage range and a maximum input voltage of 26V. This single-amplifier device offers a 100dB Common Mode Rejection Ratio and a low input offset voltage of 40uV. Packaged in an 8-pin SOT-23-8, it operates from -40°C to 125°C and is RoHS compliant.
INA219BIDCNT
3V-5.5V 26V Max Supervisory IC, 0.5% Acc, SOT-23-8
About INA226AIDGSR
The Texas Instruments INA226AIDGSR Sensors Transducers datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: High-precision supervisory circuit for monitoring voltage and current. Features a 0.02% accuracy and 3.5kHz bandwidth, operating from a 2.7V to 5.5V supply. This single-amplifier IC offers a 140dB Common Mode Rejection Ratio and a low input offset voltage of 2.5uV. Packaged in a 10-pin VSSOP for surface mounting, it operates within a -40°C to 125°C temperature range.. Key parameters include Accuracy: 0.02%, Bandwidth: 3.5kHz, Common Mode Rejection Ratio: 140dB, Height: 1.07mm, and Input Bias Current: 10uA. INA226AIDGSR is manufactured by Texas Instruments as part of their Sensors Transducers product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Sensors Transducers
Ask AI Assistant
Ask questions about INA226AIDGSR specifications
Click to ask a quick question:
Parameters
| Accuracy | 0.02% |
| Bandwidth | 3.5kHz |
| Common Mode Rejection Ratio | 140dB |
| Height | 1.07mm |
| Input Bias Current | 10uA |
| Input Offset Voltage (Vos) | 2.5uV |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Min Supply Voltage (DC) | 2.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Output Current | 10mA |
| Package/Case | VSSOP |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quest | 1,8601$21.4875$20.055$19.1——View offer |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Schukat | 4,0201$1.0643——$0.7404—View offer |
| Supply Current | 330uA |
| Thickness | 1.02mm |
| TME | 2,0411$2.78——$1.69pcsView offer |
| Width | 3mm |
