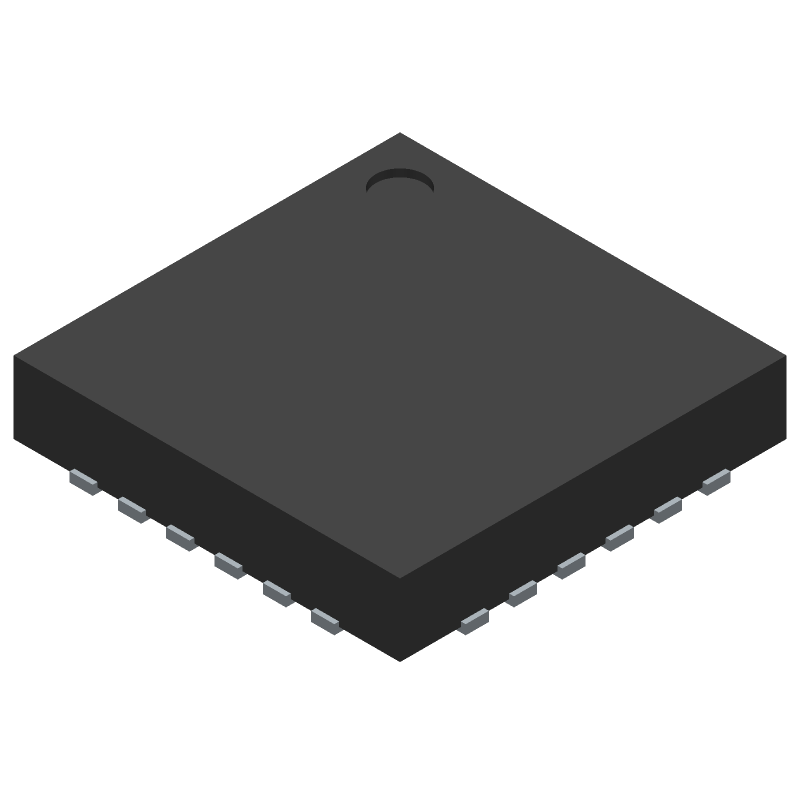

BQ25895RTWR
I2C 1cell 5A buck battery charger with high input voltage and 3.1-A boost with HVDCP enabled 24-WQFN -40 to 85
Similar Components
LM2577T-ADJ/NOPB
Adjustable Boost Converter 3A 40V In, 60V Out TO-220
LM2675
1A, 12V fixed output step-down regulator with a 6.5V to 40V input voltage range. Features 94% efficiency and operates from -40°C to 125°C. Surface mountable in an 8-SOIC package, this power management IC offers low component count and is RoHS compliant.
LM2940
Positive fixed 15V output voltage regulator, delivering up to 1A output current. Features a low 500mV dropout voltage and a maximum input voltage of 26V. Offers high 66dB power supply rejection ratio (PSRR) and operates across a -40°C to 85°C temperature range. Packaged in a TO-220 through-hole mount for reliable integration.
LM7905CT
Negative linear voltage regulator, fixed -5V output, 1.5A output current. Features 4% output voltage accuracy and a 1.1V dropout voltage. Operates with input voltages from -25V to -10V, with a maximum operating temperature of 125°C. Packaged in a TO-220 through-hole mount.
TL431AIDBZR
Adjustable precision shunt regulator, SOT-23 package, offering an output voltage range from 2.495V to 36V with a 1% tolerance. Features a maximum input voltage of 37V and a maximum output current of 100mA. Operates across a wide temperature range of -40°C to 125°C. This RoHS compliant component requires a minimum cathode current of 700µA.
TPS5430DDAR
Surface mount DC/DC step-down converter with adjustable output voltage from 1.22V to 31V. Features a 5.5V to 36V input voltage range, delivering up to 3A output current. Operates at 500kHz with up to 95% efficiency. Packaged in an 8-SO PowerPAD HSOP, this lead-free, RoHS compliant component is suitable for operation between -40°C and 125°C.
About BQ25895RTWR
The Texas Instruments BQ25895RTWR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: I2C 1cell 5A buck battery charger with high input voltage and 3.1-A boost with HVDCP enabled 24-WQFN -40 to 85. Key parameters include Eccn Code: EAR99, JEDEC Package Code: S-PQCC-N24, Lead Free: Yes, Length: 4, and Max Operating Temperature: 85. BQ25895RTWR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about BQ25895RTWR specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | S-PQCC-N24 |
| Lead Free | Yes |
| Length | 4 |
| Max Operating Temperature | 85 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Channels | 2 |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| REACH | Compliant |
| RoHS | Yes |
| Supply Voltage-Max (Vsup) | 14 |
| Supply Voltage-Min (Vsup) | 3.9 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Width | 4 |
