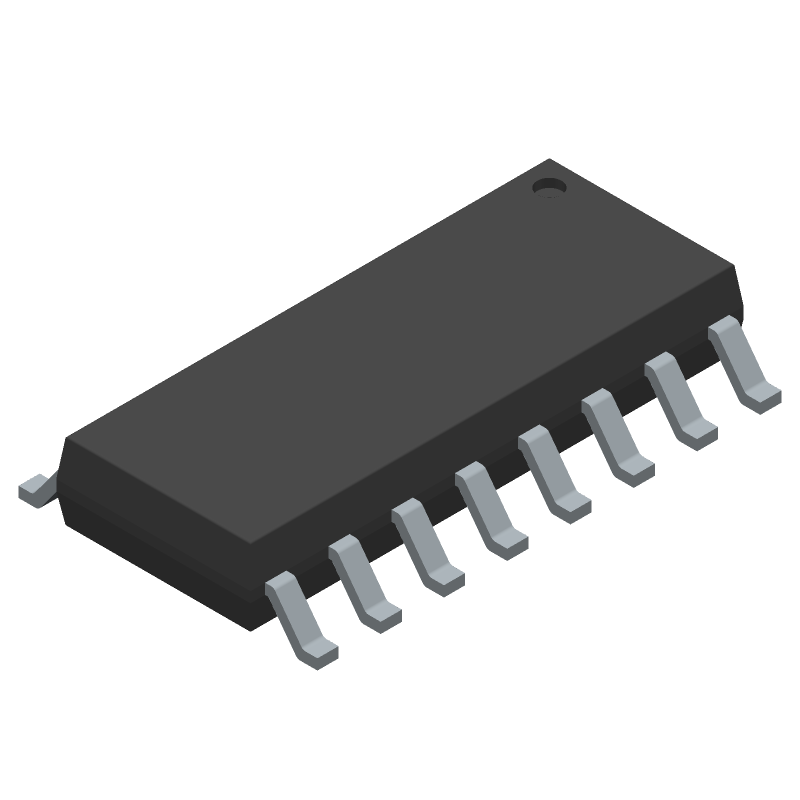

74HC4017D
Ring Counter
Similar Components
74HC595BQ-Q100,115
8-Bit Serial-In/Parallel-Out Shift Register, 16-Pin QFN, Automotive
74HC164PW-Q100J
74HC164-Q100; 74HCT164-Q100 - 8-bit serial-in, parallel-out shift register TSSOP 14-Pin
74HC595D,118
8-bit serial-in, parallel-out shift register with true output polarity. Operates from a 2V to 6V supply voltage range, with a nominal 5V. Features a 265ns propagation delay and a maximum operating frequency of 24MHz. Housed in a 16-pin SOIC package with dual terminal positions, suitable for automotive temperature grades (-40°C to 125°C).
74HCT595D-Q100,118
8-Bit Serial-In Parallel-Out Shift Register, 5V, 16-Pin SOP
74LVC1T45GW
Bidirectional 1-channel voltage level translator, surface mount, in a 6-pin TSSOP package with a 0.65mm pin pitch. Features CMOS process technology, LVC logic family, and 3-state output with maximum output currents of 32mA (low) and -32mA (high). Operates across a temperature range of -40°C to 125°C.
PESD5V0V1BL
The PESD5V0V1BL is a bi-directional transient voltage suppression (TVS) diode from Nexperia. It has a maximum working voltage of 5V and a maximum clamping voltage of 12.5V. The device features a low maximum leakage current of 0.01mA. It is available in a DFN package, suitable for surface mount applications. The PESD5V0V1BL operates over a temperature range of -55°C to 150°C.
About 74HC4017D
The Nexperia 74HC4017D Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Ring Counter. Key parameters include Count Direction: UP, Family: HC/UH, fmax-Min: 24, HTS Code: 8542.39.00.01, and JEDEC Package Code: R-PDSO-G16. 74HC4017D is manufactured by Nexperia as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Nexperia
- Category
- Semiconductors
Ask AI Assistant
Ask questions about 74HC4017D specifications
Click to ask a quick question:
Parameters
| Count Direction | UP |
| Family | HC/UH |
| fmax-Min | 24 |
| HTS Code | 8542.39.00.01 |
| JEDEC Package Code | R-PDSO-G16 |
| Length | 9.9 |
| Logic IC Type | RING COUNTER |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Bits | 10 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Propagation Delay (tpd) | 375 |
| REACH | Compliant |
| RoHS | Yes |
| RS UK | 15025$0.4724$0.4252$0.3779PackView offer |
| Supply Voltage-Max (Vsup) | 6 |
| Supply Voltage-Min (Vsup) | 2 |
| Supply Voltage-Nom (Vsup) | 5 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
| Width | 3.9 |
