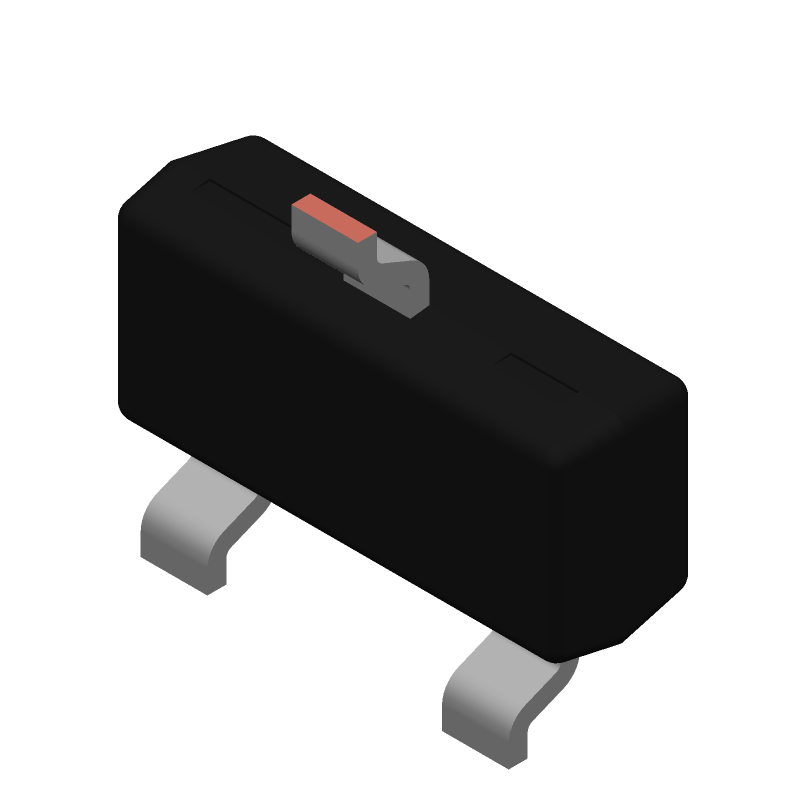

BSS84AK
Small Signal Field-Effect Transistor
Similar Components
74HC14D,653
CMOS Hex Schmitt Trigger Inverter IC featuring six independent inverter functions. Operating across a wide temperature range of -40°C to 125°C, this logic component supports supply voltages from 2V to 6V, with a nominal 5V. It offers a propagation delay of 190ns and is housed in a 14-pin SOIC package (JEDEC R-PDSO-G14) with dual terminal positions.
74HCT595D-Q100,118
8-Bit Serial-In Parallel-Out Shift Register, 5V, 16-Pin SOP
74HC164
74HC164-Q100; 74HCT164-Q100 - 8-bit serial-in, parallel-out shift register TSSOP 14-Pin
PMV16XNR
PMV16XN - 20 V, N-channel Trench MOSFET TO-236 3-Pin
74HC595D,118
8-bit serial-in, parallel-out shift register with true output polarity. Operates from a 2V to 6V supply voltage range, with a nominal 5V. Features a 265ns propagation delay and a maximum operating frequency of 24MHz. Housed in a 16-pin SOIC package with dual terminal positions, suitable for automotive temperature grades (-40°C to 125°C).
BAV99,215
High-speed switching rectifier diode designed for general-purpose applications. Features a maximum repetitive peak reverse voltage of 100V and a continuous forward current of 0.215A. Operates across a wide temperature range from -65°C to 150°C. Housed in a 3-pin SOT-23 (TO-236AB) package with dual terminal positions and two silicon diode elements. Maximum power dissipation is 0.25W.
About BSS84AK
The Nexperia BSS84AK Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Small Signal Field-Effect Transistor. Key parameters include Eccn Code: EAR99, JEDEC Package Code: TO-236AB, Military Spec: False, Number of Elements: 1, and Number of Terminals: 3. BSS84AK is manufactured by Nexperia as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Nexperia
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BSS84AK specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | TO-236AB |
| Military Spec | False |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| REACH | Compliant |
| RoHS | Yes |
| RS UK | 3,100200$0.0567$0.0499ReelView offer |
| Terminal Position | DUAL |
| TTI Americas | —1———View offer |
