XC6206P182MR

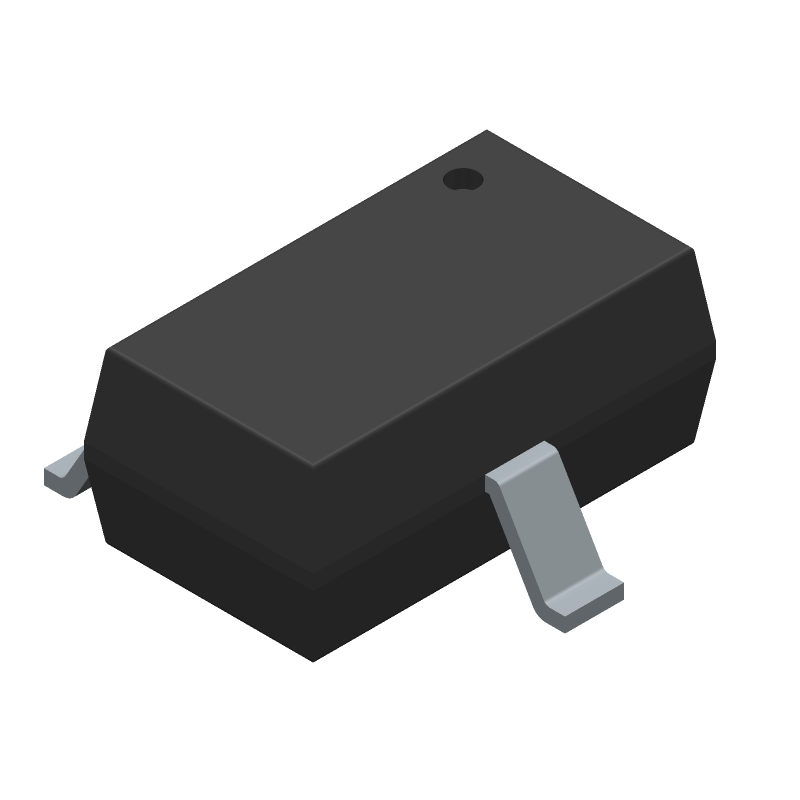

The XC6206P182MR is a 3-pin SOT-23 linear voltage regulator from Torex. It has a nominal output voltage of 1.8V and can supply up to 80mA of current. The input voltage range is from 1.8V to 6V. The regulator has a dropout voltage of up to 0.78V. It is available in a JEDEC package code R-PDSO-G3 with dimensions of 1.6mm width and 2.9mm length.
Similar Components
XC6206P332MR-G
The XC6206P332MR-G is a 3-terminal linear voltage regulator with a nominal output voltage of 3.3V and a maximum output current of 0.2A. It operates from an input voltage range of 1.8V to 6V and has a dropout voltage of 0.68V. The device is packaged in a SOT-23 package, which is antimony and halogen free, RoHS compliant, and has 3 pins. The operating temperature range is not specified in the provided data.
TPS61099
0.7Vin Synchronous Boost Converter with 800 nA Ultra-Low Quiescent Current 6-DSBGA -40 to 85
RT9193-33GB
3.3V 300mA LDO Regulator, SOT-23-5, 5.5V In, 220mV Dropout
MCP1703T-3302E/CB
Positive fixed 3.3V LDO regulator with 250mA output current. Features a 525mV dropout voltage and 2% accuracy. Operates from a 2.7V to 16V input voltage range. Packaged in a 3-pin SOT-23 surface mount case, this component offers a low 5uA quiescent current and a maximum operating temperature of 125°C.
AMS1117-ADJ
Adjustable low-dropout linear regulator provides up to 1 A output current with a 1.25 V nominal reference. The regulator operates with a 1 V input-to-output differential and has a maximum 1.3 V dropout voltage at full load. On-chip trimming sets the reference accuracy to 1.5%, and current limiting reduces stress during overload conditions. The AMS1117 family is supplied in surface-mount SOT-223, SO-8, and TO-252 package options and is specified for 0 °C to 125 °C operation.
ICL7660AIBAZA-T
CMOS Voltage Converters
About XC6206P182MR
The Torex XC6206P182MR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The XC6206P182MR is a 3-pin SOT-23 linear voltage regulator from Torex. It has a nominal output voltage of 1.8V and can supply up to 80mA of current. The input voltage range is from 1.8V to 6V. The regulator has a dropout voltage of up to 0.78V. It is available in a JEDEC package code R-PDSO-G3 with dimensions of 1.6mm width and 2.9mm length.. Key parameters include Dropout Voltage1-Max: 0.78, Eccn Code: EAR99, HTS Code: 8542.39.00.01, Input Voltage-Max: 6, and Input Voltage-Min: 1.8. XC6206P182MR is manufactured by Torex as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Torex
- Category
- Power Supplies
Ask AI Assistant
Ask questions about XC6206P182MR specifications
Click to ask a quick question:
Parameters
| Dropout Voltage1-Max | 0.78 |
| Eccn Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| Input Voltage-Max | 6 |
| Input Voltage-Min | 1.8 |
| JEDEC Package Code | R-PDSO-G3 |
| Length | 2.9 |
| Military Spec | False |
| Number of Functions | 1 |
| Number of Terminals | 3 |
| Output Current1-Max | 0.08 |
| Output Voltage1-Max | 1.836 |
| Output Voltage1-Min | 1.764 |
| Output Voltage1-Nom | 1.8 |
| Pin Count | 3 |
| REACH | Compliant |
| RoHS | Yes |
| Terminal Position | DUAL |
| Width | 1.6 |
