OPA4277UA

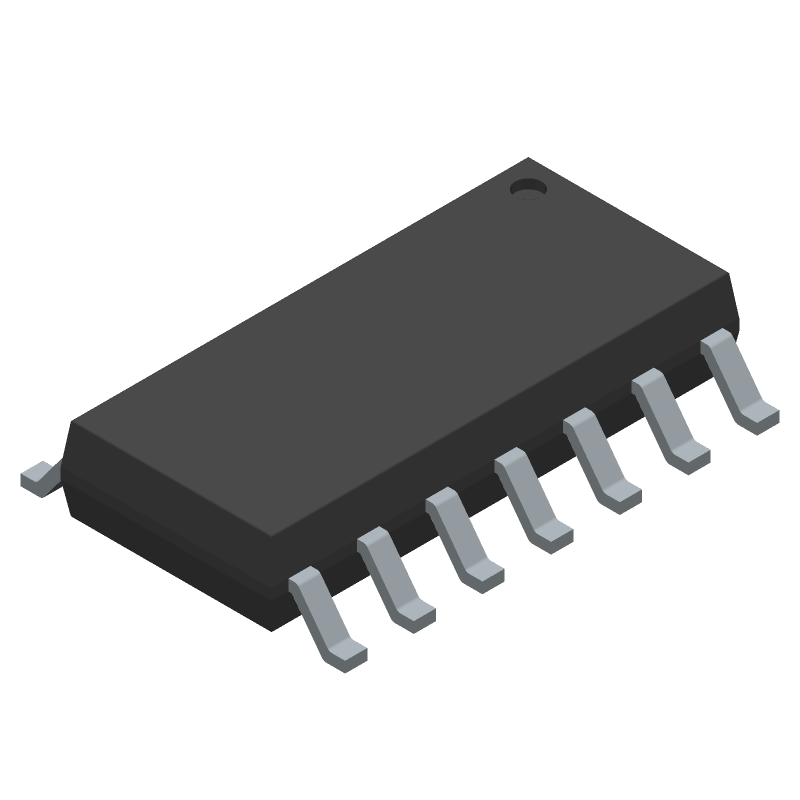

Quad operational amplifier featuring 1MHz bandwidth and 1MHz gain bandwidth product. This precision amplifier offers a low input bias current of 2.8nA and an input offset voltage of 20µV. Designed for general-purpose applications, it operates with dual supply voltages from 2V to 18V and consumes a nominal supply current of 790µA. The component is housed in a 14-SOIC package with gull wing terminals, suitable for surface mounting.
Similar Components
LM386N-3
Single-channel audio power amplifier IC featuring 1W output power and 700mW maximum output power into an 8-ohm load. Offers a voltage gain of 46dB and a bandwidth of 300kHz. Operates from a single supply voltage range of 4V to 12V, with a typical supply current of 4mA. Packaged in an 8-pin DIP (PDIP8) configuration.
TXS0108EPWR
8-bit bidirectional voltage-level shifter IC, supporting open-drain and push-pull applications. Features 8 channels with a 60Mbps data rate and 4.8ns propagation delay. Operates from 1.2V to 5.5V supply voltage, with low quiescent current of 3uA. Packaged in a 20-TSSOP for surface mounting, this lead-free component is RoHS compliant and operates across a -40°C to 85°C temperature range.
LMD18200T/NOPB
3A 55V 2-Ch Brushed Motor Driver IC TO-220
TL084CN
Quad JFET-input operational amplifier featuring a 3MHz bandwidth and 13V/µs slew rate. This BIFET technology device offers a 70dB common mode rejection ratio and operates with dual supply voltages from 3.5V to 18V. With four independent amplifiers in a 14-PDIP package, it boasts a low input bias current of 400pA and a nominal gain bandwidth product of 3MHz. The RoHS compliant component operates across a wide temperature range of -40°C to 125°C.
ADS1115
16-bit delta-sigma analog-to-digital converter (ADC) featuring 4 input channels and a sampling rate of 860 samples/second. Offers a programmable gain amplifier (PGA), internal oscillator, voltage reference, and comparator. Operates from a 2V to 5.5V supply voltage with a maximum power dissipation of 500µW. Interface is I2C, and the component is housed in a 10-X2QFN package with gold contact plating. Suitable for operation between -40°C and 125°C.
CD4518BPWE4
CMOS Dual BCD Up-Counter, 4-Bit, 8MHz, 18V, TSSOP
About OPA4277UA
The Texas Instruments OPA4277UA Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Quad operational amplifier featuring 1MHz bandwidth and 1MHz gain bandwidth product. This precision amplifier offers a low input bias current of 2.8nA and an input offset voltage of 20µV. Designed for general-purpose applications, it operates with dual supply voltages from 2V to 18V and consumes a nominal supply current of 790µA. The component is housed in a 14-SOIC package with gull wing terminals, suitable for surface mounting.. Key parameters include Amplifier Type: GENERAL PURPOSE, Bandwidth: 1MHz, Common Mode Rejection Ratio: 115dB, Dual Supply Voltage: 9V, and Gain Bandwidth Product: 1MHz. OPA4277UA is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about OPA4277UA specifications
Click to ask a quick question:
Parameters
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Common Mode Rejection Ratio | 115dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 1MHz |
| Height | 1.58mm |
| Input Bias Current | 2.8nA |
| Input Offset Voltage (Vos) | 20uV |
| JESD-30 Code | R-PDSO-G14 |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Dual Supply Voltage | 18V |
| Max I/O Voltage | 50uV |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 18V |
| Min Dual Supply Voltage | 2V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Moisture Sensitivity Level | 3 |
| Nominal Gain Bandwidth Product | 1MHz |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Functions | 4 |
| Operating Supply Current | 790uA |
| Output Current | 35mA |
| Output Current per Channel | 35mA |
| Package Body Material | Plastic |
| Package/Case | D |
| Package Quantity | 50 |
| Package Shape | Rectangular |
| Packaging | Rail/Tube |
| Peak Reflow Temperature (Cel) | 260°C |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 1222—$15.3714—$14.8969TubeView offer |
| Schukat | 2,0655——$3.7056——View offer |
| Slew Rate | 0.8V/µs |
| Supply Current | 825uA |
| Surface Mount | Yes |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Gold |
| Terminal Form | Gull Wing |
| Terminal Position | DUAL |
| Termination | SMD/SMT |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 140dB |
| Width | 3.91mm |
