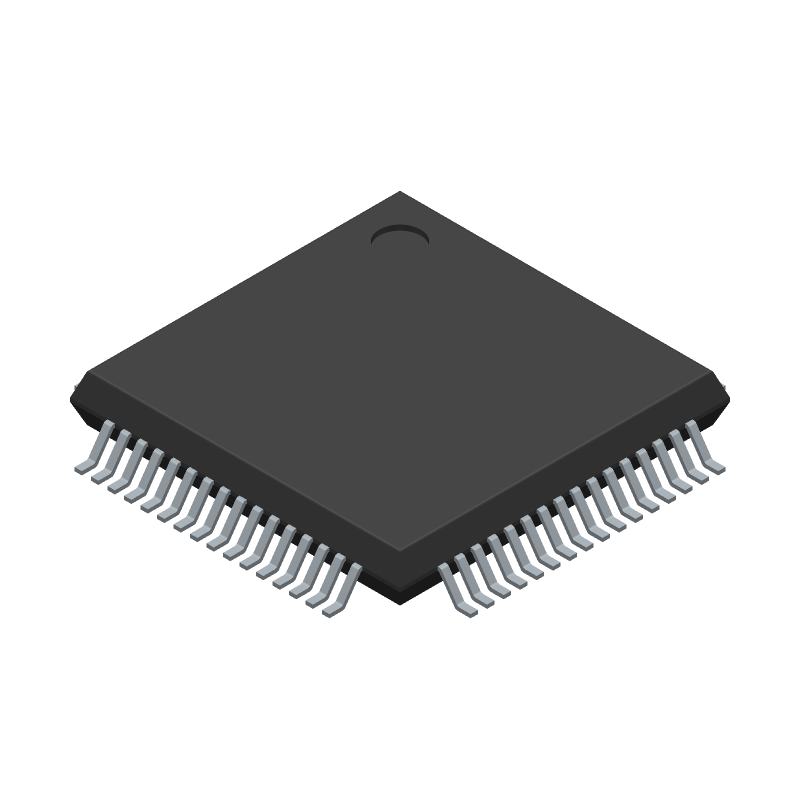

STM32F411
The microcontroller family uses a 32-bit Arm Cortex-M4 core with FPU running up to 100 MHz and integrates up to 512 KB of Flash and 128 KB of SRAM. It operates from 1.7 V to 3.6 V and supports industrial temperature grades up to 105 °C depending on the device. Peripheral integration includes USB 2.0 OTG full-speed, SDIO, USART, SPI/I2S, I2C, timers, DMA, RTC, and a 12-bit ADC.
Similar Components
STM8S105K6T6C
8-bit microcontroller featuring 32KB FLASH memory and 2KB RAM. Operates at a 16MHz CPU frequency with a maximum of 16MHz. Offers 25 programmable I/Os, 7 ADC channels, and 3 PWM channels. Supports I2C, SPI, IrDA, and UART interfaces. Packaged in LQFP for surface mounting, with a wide operating temperature range of -40°C to 85°C.
STM32F072CBT6
32-bit ARM Cortex-M0 microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at a maximum frequency of 48MHz with a 32-bit data bus. Offers extensive connectivity including I2C, SPI, USB, CAN, and USART interfaces. Includes 13 A/D converter channels, 2 D/A converters, and 37 I/O pins. Operates within a 2V to 3.6V supply voltage range and a temperature range of -40°C to 85°C. Packaged in LQFP, this lead-free and RoHS compliant component is ideal for embedded applications.
STM32L452RET6
Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 512 kbytes of Flash memory, USB Device, DFSDM
STM32G431C6T6
Arm Cortex-M4+ MCU, 170MHz, 32KB Flash, Math Accel
STM32F103RET6
32-bit ARM Cortex-M3 microcontroller featuring 512KB FLASH and 64KB RAM. Operates at a maximum frequency of 72MHz with a 32-bit data bus. Offers extensive interfaces including I2C, SPI, USB, CAN, and USART, alongside 16 ADC channels across 3 ADCs and 2 DACs. Housed in an LQFP package with 51 I/Os, this RoHS compliant component supports operating temperatures from -40°C to 85°C.
STM8S003
8-bit microcontroller featuring 8KB Flash memory and a 16MHz CPU. This surface mount LQFP package offers 28 I/Os and supports I2C, SPI, IrDA, UART, USART, and LIN interfaces. Operating from 2.95V to 5.5V, it includes 1KB RAM, 7 timers/counters, and integrated peripherals like Brown-out Detect, POR, PWM, and a Watchdog Timer. Rated for -40°C to 85°C, this RoHS compliant component is supplied on tape and reel.
About STM32F411
The Stmicroelectronics STM32F411 Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The microcontroller family uses a 32-bit Arm Cortex-M4 core with FPU running up to 100 MHz and integrates up to 512 KB of Flash and 128 KB of SRAM. It operates from 1.7 V to 3.6 V and supports industrial temperature grades up to 105 °C depending on the device. Peripheral integration includes USB 2.0 OTG full-speed, SDIO, USART, SPI/I2S, I2C, timers, DMA, RTC, and a 12-bit ADC.. Key parameters include ADC resolution: 12, Core: Arm Cortex-M4 with FPU, Core architecture: 32, DMA controller: 16-stream DMA, and Flash memory: Up to 512. STM32F411 is manufactured by Stmicroelectronics as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Stmicroelectronics
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about STM32F411 specifications
Click to ask a quick question:
Parameters
| ADC resolution | 12 |
| Core | Arm Cortex-M4 with FPU |
| Core architecture | 32 |
| DMA controller | 16-stream DMA |
| Flash memory | Up to 512 |
| I2C interfaces | Up to 3 |
| Maximum CPU frequency | 100 |
| Memory card interface | SDIO |
| Operating temperature | -40 to 105, device dependent |
| Operating voltage | 1.7 to 3.6 |
| RTC | Integrated real-time clock |
| SPI interfaces | Up to 5 SPI/I2S |
| SRAM | Up to 128 |
| USART interfaces | Up to 3 |
| USB interface | USB 2.0 OTG full-speed |
