PBSS4160T

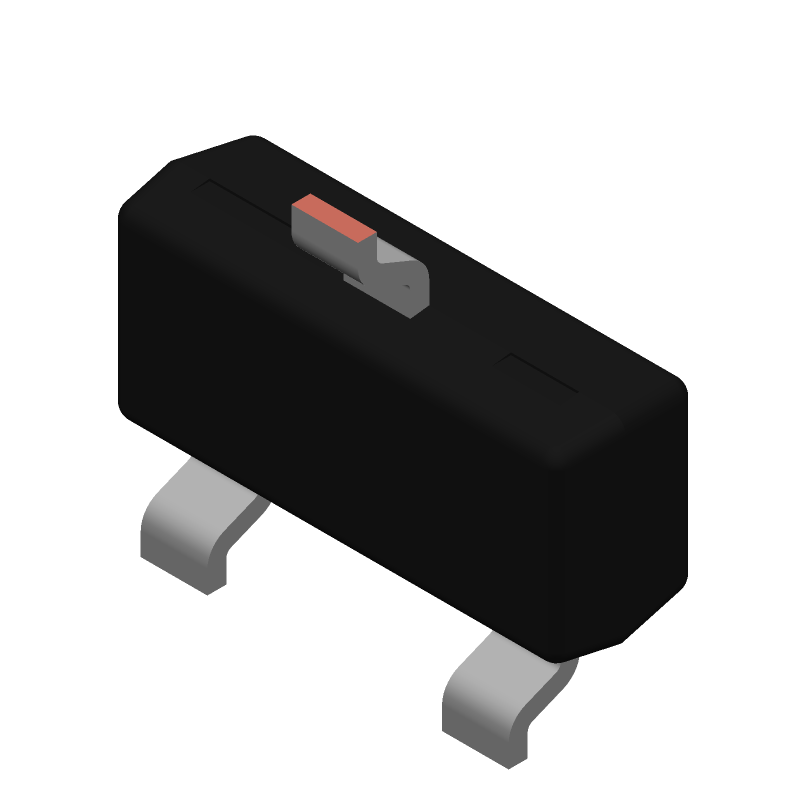

Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB
Similar Components
74HCT595
The Nexperia 74HCT595D-Q100,118 is an 8-bit serial-in parallel-out shift register with a supply voltage range of 4.5 to 5.5V. It operates over a temperature range of -40 to 125°C and is compliant with AEC-Q100. The device features a propagation delay of 63ns and a maximum frequency of 20MHz. It is packaged in a 16-pin SOP package with a width of 3.9mm and a length of 9.9mm.
74HC14D,653
CMOS Hex Schmitt Trigger Inverter IC featuring six independent inverter functions. Operating across a wide temperature range of -40°C to 125°C, this logic component supports supply voltages from 2V to 6V, with a nominal 5V. It offers a propagation delay of 190ns and is housed in a 14-pin SOIC package (JEDEC R-PDSO-G14) with dual terminal positions.
PESD5V0V1BL
The PESD5V0V1BL is a bi-directional transient voltage suppression (TVS) diode from Nexperia. It has a maximum working voltage of 5V and a maximum clamping voltage of 12.5V. The device features a low maximum leakage current of 0.01mA. It is available in a DFN package, suitable for surface mount applications. The PESD5V0V1BL operates over a temperature range of -55°C to 150°C.
74LVC1T45GW
Bidirectional 1-channel voltage level translator, surface mount, in a 6-pin TSSOP package with a 0.65mm pin pitch. Features CMOS process technology, LVC logic family, and 3-state output with maximum output currents of 32mA (low) and -32mA (high). Operates across a temperature range of -40°C to 125°C.
74HC595D,118
8-bit serial-in, parallel-out shift register with true output polarity. Operates from a 2V to 6V supply voltage range, with a nominal 5V. Features a 265ns propagation delay and a maximum operating frequency of 24MHz. Housed in a 16-pin SOIC package with dual terminal positions, suitable for automotive temperature grades (-40°C to 125°C).
74HC595BQ-Q100,115
8-Bit Serial-In/Parallel-Out Shift Register, 16-Pin QFN, Automotive
About PBSS4160T
The Nexperia PBSS4160T Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Small Signal Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB. Key parameters include Eccn Code: EAR99, JEDEC Package Code: TO-236AB, Military Spec: False, Number of Elements: 1, and Number of Terminals: 3. PBSS4160T is manufactured by Nexperia as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Nexperia
- Category
- Semiconductors
Ask AI Assistant
Ask questions about PBSS4160T specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | TO-236AB |
| Military Spec | False |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| REACH | Compliant |
| RoHS | Yes |
| Terminal Position | DUAL |
