74LVC1G04GW

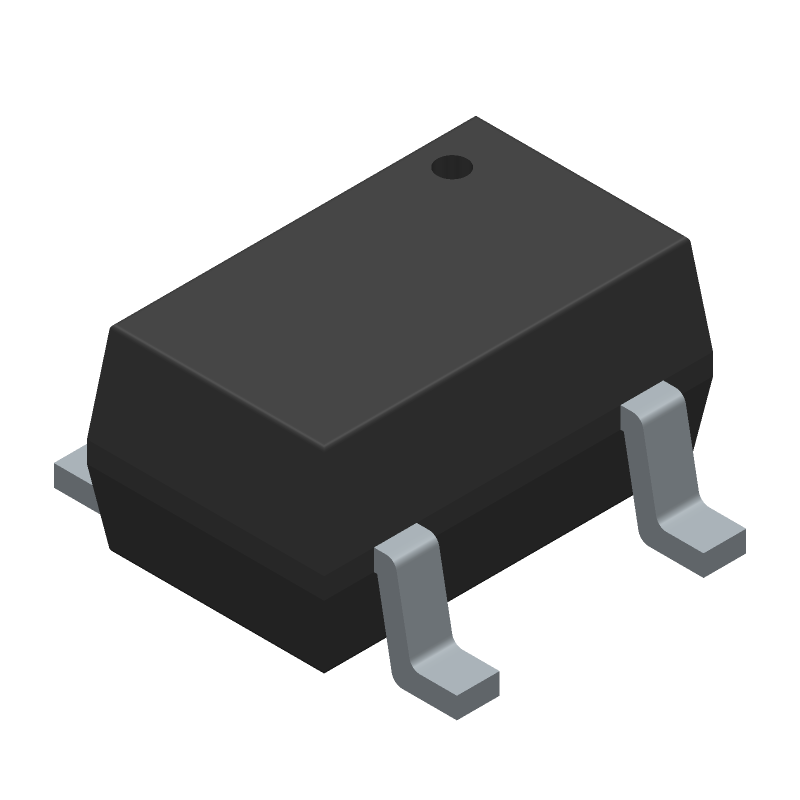

The 74LVC1G04GW is a single-input inverter logic IC from Nexperia, operating within a supply voltage range of 1.65V to 5.5V and a nominal supply voltage of 1.8V. It features a temperature grade of AUTOMOTIVE, suitable for automotive applications, and a maximum operating temperature of 125°C. The device is packaged in a TSSOP-5 package, measuring 1.25mm in width and 2.05mm in length. It has a propagation delay of 9.5ns and is designed to operate within a temperature range of -40°C to 125°C.
Similar Components
74HC164
74HC164-Q100; 74HCT164-Q100 - 8-bit serial-in, parallel-out shift register TSSOP 14-Pin
74HC595BQ-Q100,115
8-Bit Serial-In/Parallel-Out Shift Register, 16-Pin QFN, Automotive
74HC595D,118
8-bit serial-in, parallel-out shift register with true output polarity. Operates from a 2V to 6V supply voltage range, with a nominal 5V. Features a 265ns propagation delay and a maximum operating frequency of 24MHz. Housed in a 16-pin SOIC package with dual terminal positions, suitable for automotive temperature grades (-40°C to 125°C).
74HCT595D-Q100,118
8-Bit Serial-In Parallel-Out Shift Register, 5V, 16-Pin SOP
BAV99,215
High-speed switching rectifier diode designed for general-purpose applications. Features a maximum repetitive peak reverse voltage of 100V and a continuous forward current of 0.215A. Operates across a wide temperature range from -65°C to 150°C. Housed in a 3-pin SOT-23 (TO-236AB) package with dual terminal positions and two silicon diode elements. Maximum power dissipation is 0.25W.
74HCT595
The Nexperia 74HCT595D-Q100,118 is an 8-bit serial-in parallel-out shift register with a supply voltage range of 4.5 to 5.5V. It operates over a temperature range of -40 to 125°C and is compliant with AEC-Q100. The device features a propagation delay of 63ns and a maximum frequency of 20MHz. It is packaged in a 16-pin SOP package with a width of 3.9mm and a length of 9.9mm.
About 74LVC1G04GW
The Nexperia 74LVC1G04GW Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The 74LVC1G04GW is a single-input inverter logic IC from Nexperia, operating within a supply voltage range of 1.65V to 5.5V and a nominal supply voltage of 1.8V. It features a temperature grade of AUTOMOTIVE, suitable for automotive applications, and a maximum operating temperature of 125°C. The device is packaged in a TSSOP-5 package, measuring 1.25mm in width and 2.05mm in length. It has a propagation delay of 9.5ns and is designed to operate within a temperature range of -40°C to 125°C.. Key parameters include Eccn Code: EAR99, Family: LVC/LCX/Z, HTS Code: 8542.39.00.01, JEDEC Package Code: R-PDSO-G5, and Length: 2.05. 74LVC1G04GW is manufactured by Nexperia as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Nexperia
- Category
- Semiconductors
Ask AI Assistant
Ask questions about 74LVC1G04GW specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| Family | LVC/LCX/Z |
| HTS Code | 8542.39.00.01 |
| JEDEC Package Code | R-PDSO-G5 |
| Length | 2.05 |
| Logic IC Type | INVERTER |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Number of Inputs | 1 |
| Number of Terminals | 5 |
| Propagation Delay (tpd) | 9.5 |
| REACH | Compliant |
| RoHS | Yes |
| Supply Voltage-Max (Vsup) | 5.5 |
| Supply Voltage-Min (Vsup) | 1.65 |
| Supply Voltage-Nom (Vsup) | 1.8 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Width | 1.25 |
