DRV8833PWP

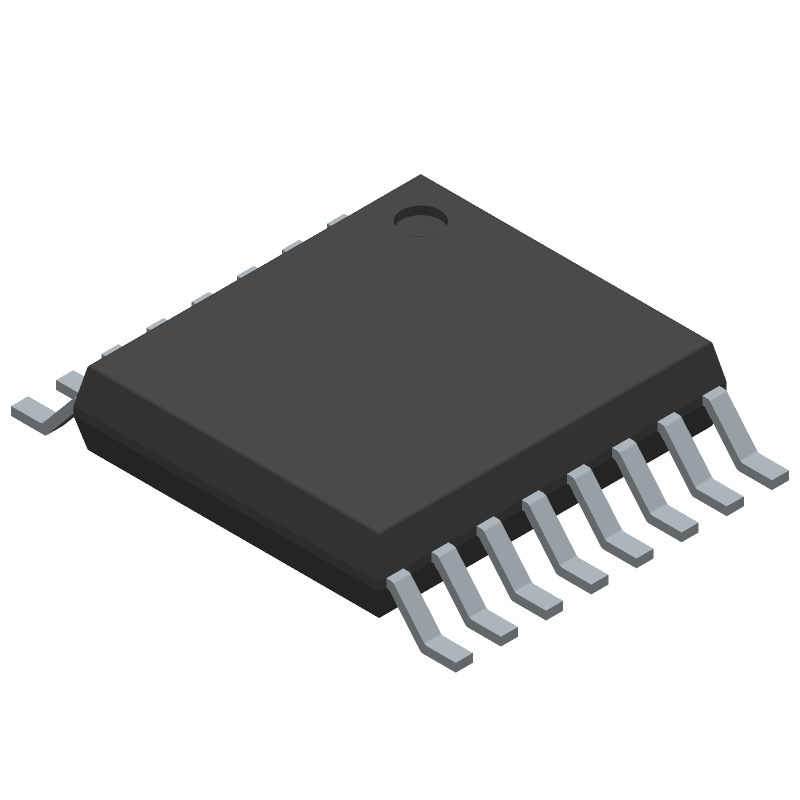

Dual H-bridge motor driver for stepper motors, featuring 2A maximum output current per channel and 1.5A RMS output current. Operates from a 2.7V minimum supply voltage up to 10.8V, with integrated current regulation. Includes over-temperature and short-circuit fault protection. Packaged in a 16-pin HTSSOP EP with dimensions of 5.1mm length, 4.5mm width, and 1.05mm height. Operates across a temperature range of -40°C to 85°C.
Similar Components
LM318
Single operational amplifier featuring a 15MHz bandwidth and 70V/µs slew rate. This general-purpose amplifier offers a 70dB common mode rejection ratio and a voltage gain of 106.02dB. Designed for through-hole mounting in an 8-pin DIP package, it operates from a 5V to 20V dual supply voltage. The component is lead-free, RoHS compliant, and suitable for operation between 0°C and 70°C.
OPA340NA/250
Single-supply, rail-to-rail operational amplifier featuring a 5.5MHz bandwidth and 6V/µs slew rate. This general-purpose amplifier offers a 500µV input offset voltage and 10pA input bias current, ideal for low-power applications. Operating from 2.5V to 5.5V supply voltage, it provides 124dB voltage gain and 50mA output current per channel. Housed in a compact SOT-23 package, this CMOS amplifier is RoHS compliant and operates across a -40°C to 85°C temperature range.
CD4049
6-channel CMOS buffer/inverter IC, operating from 3V to 18V, features 6 independent inverting logic gates. This surface-mount device in a 16-SOIC package offers a high level output current of -5.2mA and a low level output current of 4.3mA. With a propagation delay of 50ns and a quiescent current of 4uA, it supports a wide operating temperature range of -55°C to 125°C. The component is lead-free, RoHS compliant, and utilizes gold contact plating.
CD4026BE
CMOS Decade Counter/Divider, 16MHz, 3-18V, PDIP
LMC555
Single timer IC, surface mount, MSOP package. Features a 3MHz frequency, 1.5V to 15V supply voltage range, and 150µA operating supply current. Offers 100mA output current with a 100ns propagation delay and turn-on delay time. Operates from -40°C to 125°C with 555mW power dissipation. RoHS compliant and lead-free.
LM358D
Dual operational amplifier featuring a 700kHz bandwidth and 100dB voltage gain. This general-purpose op-amp offers a 0.3V/µs slew rate and operates with a wide supply voltage range from 3V to 32V. Designed for surface mounting, it comes in an 8-SOIC package with a 65dB common mode rejection ratio. The component boasts a 250nA input bias current and 7mV input offset voltage, with a typical operating supply current of 1mA.
About DRV8833PWP
The Texas Instruments DRV8833PWP Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Dual H-bridge motor driver for stepper motors, featuring 2A maximum output current per channel and 1.5A RMS output current. Operates from a 2.7V minimum supply voltage up to 10.8V, with integrated current regulation. Includes over-temperature and short-circuit fault protection. Packaged in a 16-pin HTSSOP EP with dimensions of 5.1mm length, 4.5mm width, and 1.05mm height. Operates across a temperature range of -40°C to 85°C.. Key parameters include Fault Protection: Over Temperature, Short Circuit, Height: 1.05mm, Interface: PWM, Lead Free: Lead Free, and Length: 5.1mm. DRV8833PWP is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about DRV8833PWP specifications
Click to ask a quick question:
Parameters
| Fault Protection | Over Temperature, Short Circuit |
| Height | 1.05mm |
| Interface | PWM |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Collector Current | 700mA |
| Max Operating Temperature | 85°C |
| Max Output Current | 2A |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Motor Type | Stepper |
| Number of Outputs | 2 |
| Output Current | 1.5A |
| Output Current per Channel | 1.5A |
| Package/Case | HTSSOP EP |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RMS Current (Irms) | 1.5A |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | DRV8833 |
| Supply Current | 3mA |
| Technology | NMOS |
| Width | 4.5mm |
