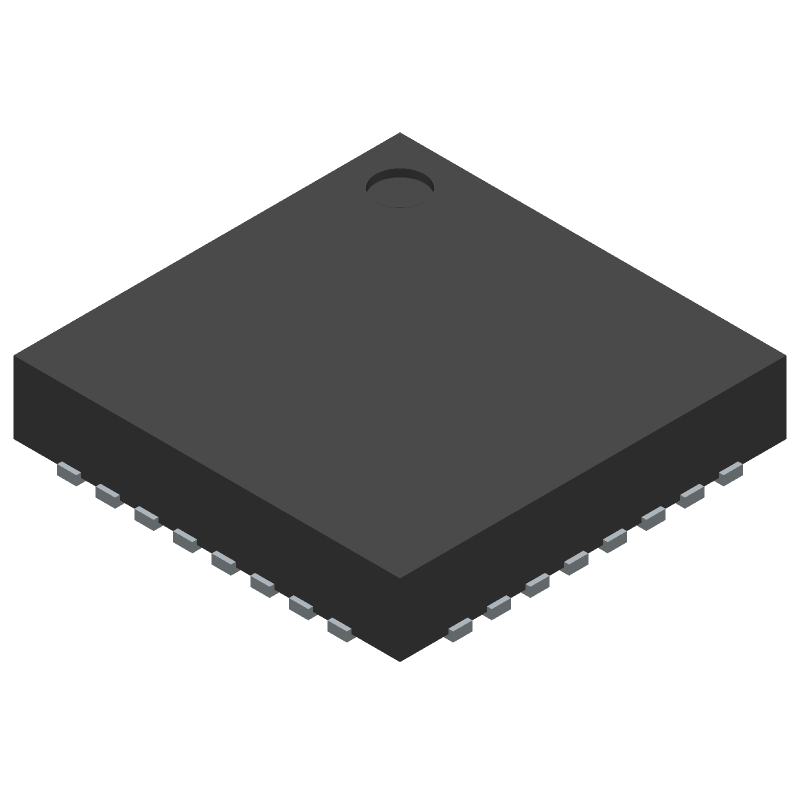

BQ25713RSNR
NVDC I<sup>2</sup>C address 1 buck-boost battery charger controller compatible with USB type C PD 32-QFN -40 to 85
Similar Components
TL431ACLP
Adjustable precision shunt regulator, a single-channel integrated circuit, offers a 2.495V reference voltage with 1% tolerance. It operates with a cathode current of 600µA and supports an output current up to 100mA, with a maximum output voltage of 36V. This component features a TO-92 package, a maximum input voltage of 37V, and a wide operating temperature range from -40°C to 125°C. It is RoHS compliant and lead-free.
TPS5450DDAR
5A, 500kHz step-down DC/DC converter with adjustable output voltage from 1.22V to 31V. Features a wide input voltage range of 5.5V to 36V and a maximum output current of 5A. Operates efficiently up to 90% and is housed in a compact 8-pin HSOP PowerPAD package for surface mounting. This RoHS compliant component offers a broad operating temperature range of -40°C to 125°C.
TPS54531DDAR
5A, 570kHz step-down converter with adjustable output voltage from 800mV to 26.04V. Features a wide input voltage range of 3.5V to 28V and a maximum output current of 5A. Operates within a temperature range of -40°C to 85°C. Includes Eco-mode for improved efficiency and is packaged in a lead-free, surface-mount 8-SO PowerPAD.
LM2575
Adjustable 1A step-down voltage regulator, featuring a 4V to 40V input voltage range and a 1.23V to 37V adjustable output voltage. This power management IC offers up to 1A output current with 77% efficiency, operating from -40°C to 125°C. Packaged in a TO-220-5 through-hole mount, it provides a single positive adjustable output. RoHS compliant and lead-free.
TPS5430QDDARQ1
3A Buck Converter, 5.5-36V In, 31V Out, 500kHz, 95% Eff, HSOP
TPS610992YFFR
0.7Vin Synchronous Boost Converter with 800 nA Ultra-Low Quiescent Current 6-DSBGA -40 to 85
About BQ25713RSNR
The Texas Instruments BQ25713RSNR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: NVDC I<sup>2</sup>C address 1 buck-boost battery charger controller compatible with USB type C PD 32-QFN -40 to 85. Key parameters include Eccn Code: EAR99, JEDEC Package Code: S-PQCC-N32, Lead Free: Yes, Length: 4, and Max Operating Temperature: 85. BQ25713RSNR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about BQ25713RSNR specifications
Click to ask a quick question:
Parameters
| Eccn Code | EAR99 |
| JEDEC Package Code | S-PQCC-N32 |
| Lead Free | Yes |
| Length | 4 |
| Max Operating Temperature | 85 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of Channels | 2 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| REACH | Compliant |
| RoHS | Yes |
| Supply Voltage-Max (Vsup) | 26 |
| Supply Voltage-Min (Vsup) | 3.5 |
| Supply Voltage-Nom (Vsup) | 5 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Width | 4 |
