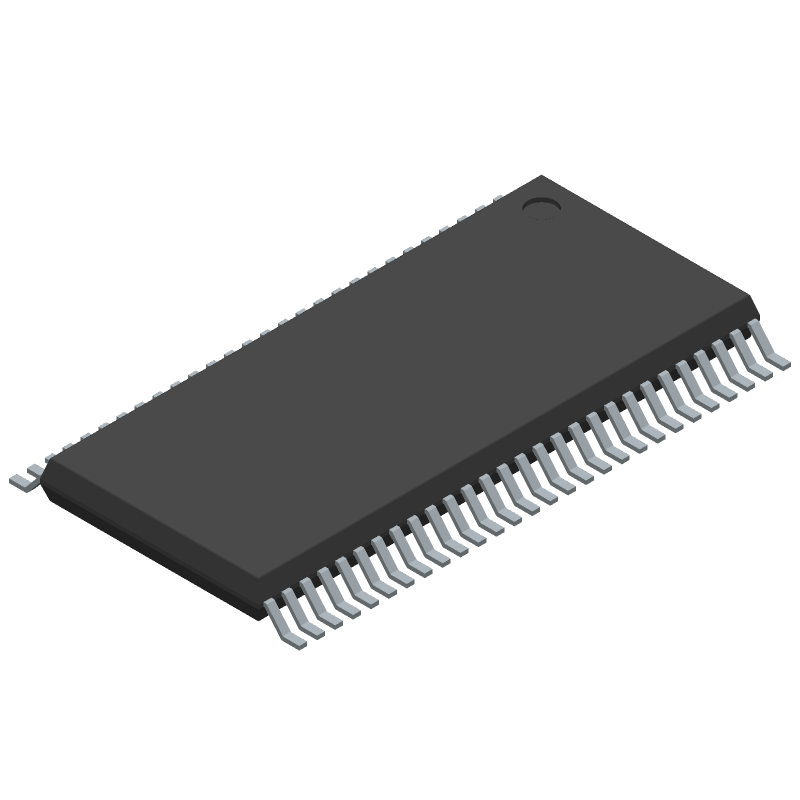

DRV8302DCAR
3-phase gate driver IC featuring a 60V maximum supply voltage and 8V minimum supply voltage. This surface mount component operates within a -40°C to 125°C temperature range and offers a 1.7A output current. Integrated current shunt amplifiers and a buck regulator enhance power management capabilities. The driver utilizes a parallel interface and is supplied in a 56-HTSSOP package, compliant with RoHS standards.
Similar Components
CD4011
The CD40117BPWE4 is an 8-bit termination IC from Texas Instruments, featuring a TSSOP-14 package and operating within a temperature range of -55°C to 125°C. This IC is designed to be RoHS compliant and is suitable for use with an operating supply voltage of 18V. It is available in quantities of 1080, packaged in rail/Tube packaging. The CD40117BPWE4 is a member of the 4000B series.
LF356
JFET input operational amplifier featuring a 5MHz bandwidth and 12V/µs slew rate. This single-channel amplifier offers a 3mV input offset voltage and 30pA input bias current, with a 1.5µs settling time. Designed for through-hole mounting in an 8-PDIP package, it operates from a dual supply voltage range of ±10V to ±18V, with a maximum supply voltage of ±36V. Key performance metrics include 80dB common mode rejection ratio and 80dB power supply rejection ratio.
LM567
Surface mount tone decoder IC featuring a 0.5MHz operating frequency and a 4.75V to 9V supply voltage range. This integrated circuit offers a 12mA operating supply current and a maximum power dissipation of 1.1W. Packaged in an 8-pin SOIC with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height, it operates within a temperature range of 0°C to 70°C. The component is lead-free and RoHS compliant.
MAX232INE4
Dual EIA-232 Transceiver, 120Kbps, 5V, 2 Drivers/2 Receivers, PDIP
CD4017BE
The CD4017BE is a 10-bit counter IC from Texas Instruments, packaged in a DIP with a through-hole mount. It features a positive edge trigger type and operates over a temperature range of -55°C to 125°C. This lead-free device is RoHS compliant and suitable for use in synchronous applications.
CD4081BE
4-ch CMOS AND Gate IC, 3-18V, 14-PDIP, Military
About DRV8302DCAR
The Texas Instruments DRV8302DCAR Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 3-phase gate driver IC featuring a 60V maximum supply voltage and 8V minimum supply voltage. This surface mount component operates within a -40°C to 125°C temperature range and offers a 1.7A output current. Integrated current shunt amplifiers and a buck regulator enhance power management capabilities. The driver utilizes a parallel interface and is supplied in a 56-HTSSOP package, compliant with RoHS standards.. Key parameters include Interface: Parallel, Lead Free: Lead Free, Max Operating Temperature: 125°C, Max Supply Voltage: 60V, and Min Operating Temperature: -40°C. DRV8302DCAR is manufactured by Texas Instruments as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Semiconductors
Ask AI Assistant
Ask questions about DRV8302DCAR specifications
Click to ask a quick question:
Parameters
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 60V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 8V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Current | 1.7A |
| Package/Case | HTSSOP |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Supply Current | 15mA |
