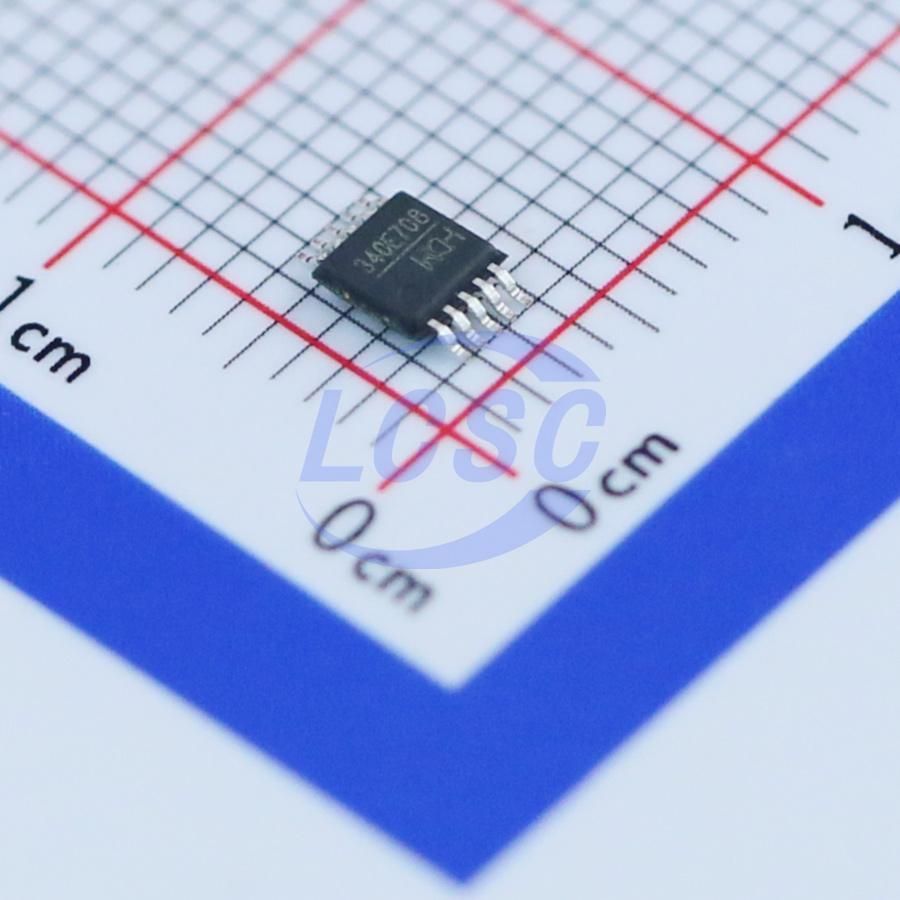

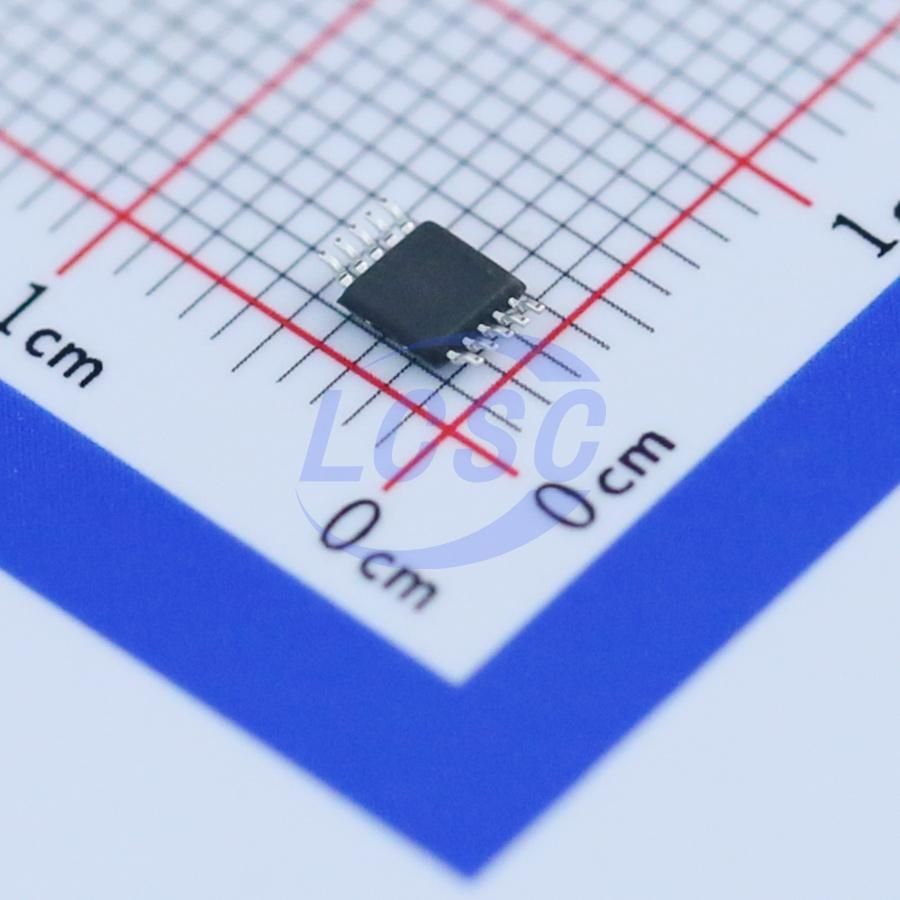

CH340E
USB bus converter chip provides USB-to-serial bridge functionality for UART applications and supports USB 2.0 operation. The device supports programmable baud rates up to 2 Mbps and operates from 3.3 V or 5 V supplies. The MSOP-10 device integrates a clock generator and power-on reset circuitry for compact USB serial designs.
Similar Components
IRF3710PBF
This N-channel silicon power MOSFET is rated for 100 V drain-to-source voltage and 57 A continuous drain current at 25°C case temperature. It is specified with a maximum drain-to-source on-resistance of 23 mΩ at VGS = 10 V and uses the TO-220AB through-hole package. The device supports operation from -55°C to 175°C and is fully avalanche rated with fast switching characteristics. The datasheet also identifies dynamic dv/dt capability and lead-free construction for industrial applications.
MM1Z12B
Zener Diode,
BK/GMC-100-R
Medium time delay electric fuse, 0.1A current rating, 250VAC maximum voltage. Features a 35A interrupting rating, 5x20mm fuse size, and nickel contact plating. Compliant with RoHS standards and includes UL, CSA, and KC approvals. Designed for holder or surface mount applications with clip termination.
74HC245DW
8-bit bidirectional bus transceiver, HC/UH family, featuring true output polarity. Operates with a supply voltage range of 2V to 6V, nominal 5V. Designed for automotive temperature grades, with a minimum operating temperature of -40°C and a maximum of 125°C. Housed in a 20-terminal PDSO package (7.5mm width, 12.8mm length), JEDEC code R-PDSO-G20. Propagation delay is 135ns, with 27ns at nominal supply.
FWC-6A10F
Electric Fuse, 6A, 600VAC, 700VDC, 200000A (IR), Inline/holder,
NE555DR
Single channel timer IC, operating from 4.5V to 16V, with a frequency range up to 100kHz. Features include 200mA output current capability (both high and low level) and a maximum operating temperature of 70°C. This surface mount component is housed in an 8-pin SOIC package, measuring 4.9mm in length, 3.91mm in width, and 1.58mm in height. It is RoHS compliant and supplied on tape and reel.
About CH340E
The WCH CH340E Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: USB bus converter chip provides USB-to-serial bridge functionality for UART applications and supports USB 2.0 operation. The device supports programmable baud rates up to 2 Mbps and operates from 3.3 V or 5 V supplies. The MSOP-10 device integrates a clock generator and power-on reset circuitry for compact USB serial designs.. Key parameters include Baud Rate: Programmable, Clock Generator: Built-in, Interface Function: USB to UART / serial port converter, Maximum Data Rate: 2Mbps, and Package: MSOP-10. CH340E is manufactured by WCH as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- WCH
- Category
- Semiconductors
Ask AI Assistant
Ask questions about CH340E specifications
Click to ask a quick question:
Parameters
| Baud Rate | Programmable |
| Clock Generator | Built-in |
| Interface Function | USB to UART / serial port converter |
| Maximum Data Rate | 2Mbps |
| Package | MSOP-10 |
| Power-On Reset | Built-in |
| Product Series | CH340 |
| Quiescent Supply Current | 150uA |
| Supply Current | 20mA |
| Supply Voltage | 3.3; 5V |
| USB Protocol | USB 2.0 |
