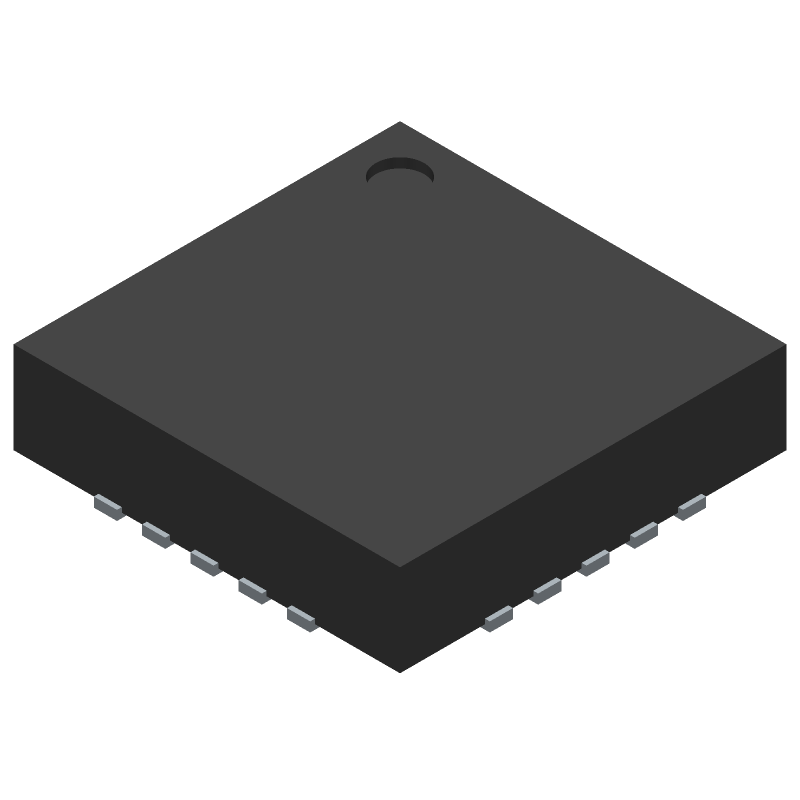

CC1101RGPR
Surface mount RF transceiver supporting ASK, FSK, GFSK, OOK, and MSK modulation. Features a data rate up to 600Kbps and an output power of 12dBm, with a sensitivity of -116dBm. Operates across a frequency range up to 928MHz, powered by a supply voltage between 1.8V and 3.6V. Includes a single receiver and transmitter, with SPI interface, housed in a 20-pin VQFN EP package with gold contact plating.
Similar Components
CC1101RTK
RF Transceiver IC, 300-928MHz, 600Kbps, SPI, VQFN, 10dBm
CC2591
LNA/PA RF Front End 4.8dB 22dB 16-Pin VQFN EP T/R
CC2500
Specialty telecom circuit featuring a 2.4GHz frequency range with a bandwidth up to 2.4835GHz. Supports data rates of 500Kbps and offers multiple modulation schemes including 2-FSK, ASK, GFSK, MSK, and OOK. Operates with an SPI interface, a supply voltage range of 1.8V to 3.6V, and a sensitivity of -104dBm. Packaged in a 4x4mm VQFN EP with gold contact plating, this surface mount component is RoHS compliant.
CC2541
KIT EVAL MODULE FOR CC2541
CC1101
RF and Wireless IC for cellular applications, featuring a 300MHz to 928MHz frequency range and a maximum data rate of 600Kbps. This surface mount component offers a sensitivity of -116dBm and a maximum output power of 10dBm. Operating with a supply voltage between 1.8V and 3.6V, it utilizes an SPI interface and consumes 17.1mA during receiving and 34.2mA during transmitting. The VQFN package measures 4mm x 4mm x 0.85mm and operates within a temperature range of -40°C to 85°C.
CC2591RGVR
LNA/PA RF Front End 4.8dB 22dB 16-Pin VQFN EP T/R
About CC1101RGPR
The Texas Instruments CC1101RGPR Rf Wireless datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Surface mount RF transceiver supporting ASK, FSK, GFSK, OOK, and MSK modulation. Features a data rate up to 600Kbps and an output power of 12dBm, with a sensitivity of -116dBm. Operates across a frequency range up to 928MHz, powered by a supply voltage between 1.8V and 3.6V. Includes a single receiver and transmitter, with SPI interface, housed in a 20-pin VQFN EP package with gold contact plating.. Key parameters include Contact Plating: Gold, Current - Receiving: 17.1mA, Current - Transmitting: 34.2mA, Data Rate: 600Kbps, and Density: 0B. CC1101RGPR is manufactured by Texas Instruments as part of their Rf Wireless product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Rf Wireless
Ask AI Assistant
Ask questions about CC1101RGPR specifications
Click to ask a quick question:
Parameters
| Contact Plating | Gold |
| Current - Receiving | 17.1mA |
| Current - Transmitting | 34.2mA |
| Data Rate | 600Kbps |
| Density | 0B |
| Depth | 4.15mm |
| Frequency | 928MHz |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 4.15mm |
| Max Frequency | 928MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Receivers | 1 |
| Number of Transmitters | 1 |
| Output Power (dBm) | 12dBm |
| Package/Case | QFN |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 1,6882—$5.6281——PackView offer |
| Sensitivity | -116dBm |
| TME | 4861$3.39——$1.86pcsView offer |
| Weight | 0.002469oz |
