BAS40X

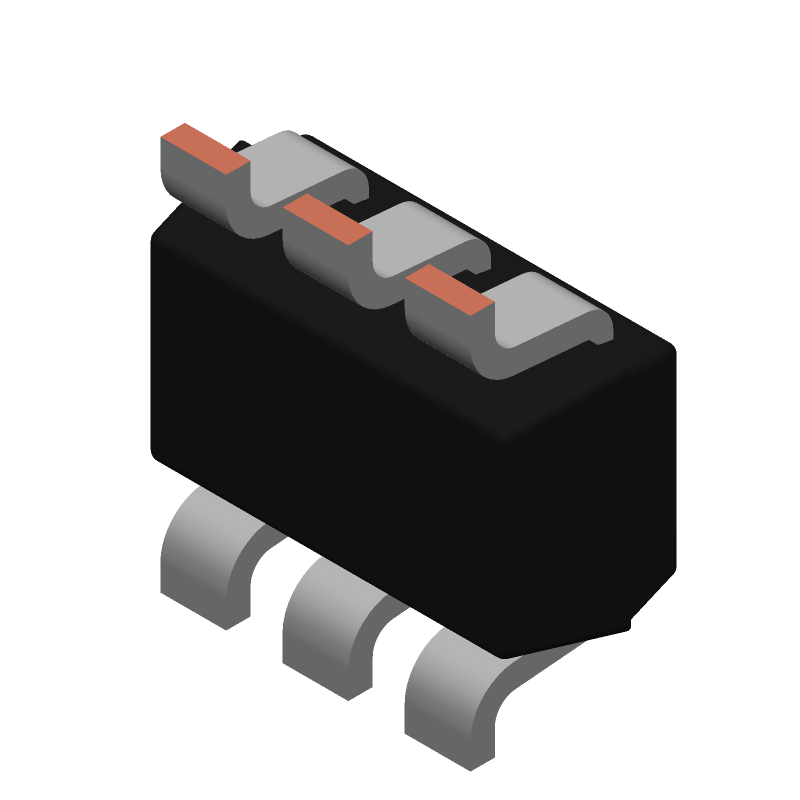

BAS40 series; 1PSxxSB4x series - General-purpose Schottky diodes TSSOP 6-Pin
Similar Components
74LVC1T45GW
Bidirectional 1-channel voltage level translator, surface mount, in a 6-pin TSSOP package with a 0.65mm pin pitch. Features CMOS process technology, LVC logic family, and 3-state output with maximum output currents of 32mA (low) and -32mA (high). Operates across a temperature range of -40°C to 125°C.
BAV99,215
High-speed switching rectifier diode designed for general-purpose applications. Features a maximum repetitive peak reverse voltage of 100V and a continuous forward current of 0.215A. Operates across a wide temperature range from -65°C to 150°C. Housed in a 3-pin SOT-23 (TO-236AB) package with dual terminal positions and two silicon diode elements. Maximum power dissipation is 0.25W.
74HC165D,653
8-bit parallel-in, serial-out shift register with complementary outputs. Features positive edge triggering and rightward count direction. Operates within a supply voltage range of 2V to 6V, with a nominal 5V. Housed in a 16-pin SOIC package (R-PDSO-G16) measuring 3.9mm width and 9.9mm length. Supports a maximum operating temperature of 125°C and a minimum of -40°C, suitable for automotive applications. Propagation delay is 250ns with a load capacitance of 50pF.
PMV16XNR
PMV16XN - 20 V, N-channel Trench MOSFET TO-236 3-Pin
74HC164
74HC164-Q100; 74HCT164-Q100 - 8-bit serial-in, parallel-out shift register TSSOP 14-Pin
74HCT595D-Q100,118
8-Bit Serial-In Parallel-Out Shift Register, 5V, 16-Pin SOP
About BAS40X
The Nexperia BAS40X Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: BAS40 series; 1PSxxSB4x series - General-purpose Schottky diodes TSSOP 6-Pin. Key parameters include Diode Element Material: SILICON, Diode Type: RECTIFIER DIODE, Eccn Code: EAR99, HTS Code: 8541.10.00.70, and Max Operating Temperature: 150. BAS40X is manufactured by Nexperia as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Nexperia
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BAS40X specifications
Click to ask a quick question:
Parameters
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Eccn Code | EAR99 |
| HTS Code | 8541.10.00.70 |
| Max Operating Temperature | 150 |
| Military Spec | False |
| Number of Elements | 4 |
| Number of Terminals | 6 |
| Pin Count | 6 |
| REACH | Compliant |
| Rep Pk Reverse Voltage-Max | 40 |
| Terminal Position | DUAL |
