BAT54S

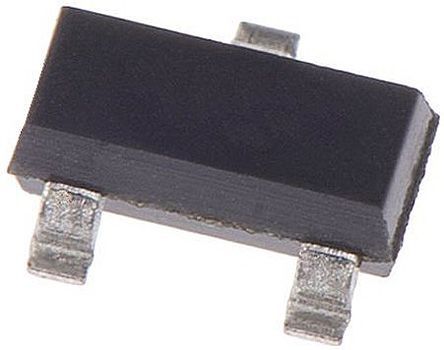

Dual-element silicon signal diode for general-purpose rectification. Features a 30V repetitive reverse voltage rating and a 200mA forward current. Maximum forward surge current is 600mA, with a low reverse leakage current of 2uA. Operating temperature range spans from -65°C to 125°C. Packaged in a SOT-23 surface-mount plastic package, this RoHS compliant component offers a capacitance of 10pF and a reverse recovery time of 5ns.
Similar Components
SS110
SCHOTTKY RECTIFIER, 100V, 1A, DO-214AC ROHS COMPLIANT: YES
US1B
The US1B diode from Taiwan Semiconductor is a surface mount device with a DO-214AC package. It can handle a maximum forward surge current of 30A and has a maximum reverse voltage of 100V. The diode operates within a temperature range of -55°C to 150°C and has a reverse recovery time of 50ns. It is RoHS compliant and available in tape and reel packaging with a quantity of 7500 per package.
SS115
Schottky Diodes & Rectifiers 1A,150V,SMD SCHOTTKY Rect
SS215
Schottky Diodes & Rectifiers 2A,150V,SMD SCHOTTKY Rect
SSL24B
Schottky Diodes & Rectifiers Low VF 2Amp 40v SMD Schottky Rect
BZT52C24S
Zener Diodes 24 Volt 200mW 5%
About BAT54S
The Taiwan Semiconductor BAT54S Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Dual-element silicon signal diode for general-purpose rectification. Features a 30V repetitive reverse voltage rating and a 200mA forward current. Maximum forward surge current is 600mA, with a low reverse leakage current of 2uA. Operating temperature range spans from -65°C to 125°C. Packaged in a SOT-23 surface-mount plastic package, this RoHS compliant component offers a capacitance of 10pF and a reverse recovery time of 5ns.. Key parameters include Capacitance: 10pF, Current Rating: 200A, DC Rated Voltage: 30V, Forward Current: 200mA, and Height: 0.95mm. BAT54S is manufactured by Taiwan Semiconductor as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Taiwan Semiconductor
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BAT54S specifications
Click to ask a quick question:
Parameters
| Capacitance | 10pF |
| Current Rating | 200A |
| DC Rated Voltage | 30V |
| Forward Current | 200mA |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Forward Surge Current (Ifsm) | 600mA |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Max Surge Current | 600mA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Package/Case | SOT-23 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 400mW |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 5ns |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| RS UK | 3,2003000$0.0486ReelView offer |
| Width | 1.4mm |
