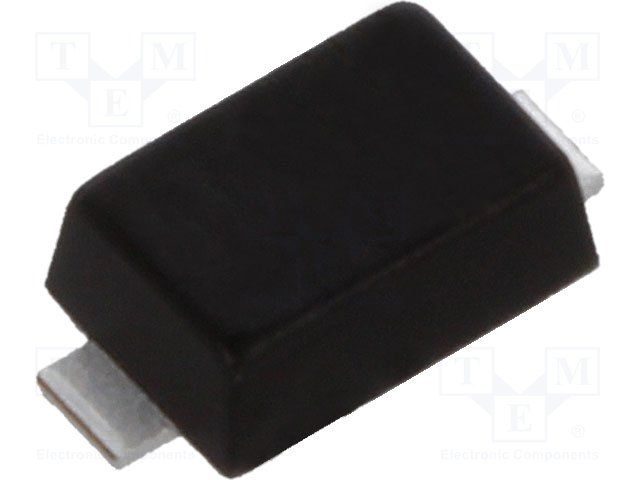

BAT46W
Rectifier Diode, Schottky, 1 Element, 0.15A, 100V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2
Similar Components
US1A
Ultrafast Recovery Rectifier , DO-214AC/SMA, 50V, 1.00A, 50ns
BZT52C33
Zener Diode Single 33V 5% 80Ohm 500mW 2-Pin SOD-123F T/R
MM3Z15
Zener Diode, 14.7V V(Z), 5%, 0.2W,
MM3Z12
Zener Diode, 12.05V V(Z), 5%, 0.2W,
BC807-40
The Diotec BC807-40 is a PNP bipolar junction transistor packaged in a surface mount SOT-23 package. It can withstand a collector-emitter voltage of up to 45V and has a maximum operating temperature range of -55°C to 150°C. The transistor has a power dissipation of 310mW and is RoHS compliant. It is suitable for high-frequency applications, with a frequency of up to 100MHz.
MM3Z9V1
Zener Diode, 9.05V V(Z), 5%, 0.2W,
About BAT46W
The Diotec BAT46W Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Rectifier Diode, Schottky, 1 Element, 0.15A, 100V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-2. Key parameters include Max Operating Temperature: 125°C, Min Operating Temperature: -55°C, Mount: Surface Mount, Packaging: Tape and Reel, and Peak Non-Repetitive Surge Current: 750mA. BAT46W is manufactured by Diotec as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Diotec
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BAT46W specifications
Click to ask a quick question:
Parameters
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 750mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Weight | 30mg |
