HS3M

Rectifiers 3.0 Amp 1000 Volt 150 Amp IFSM

Download PDF

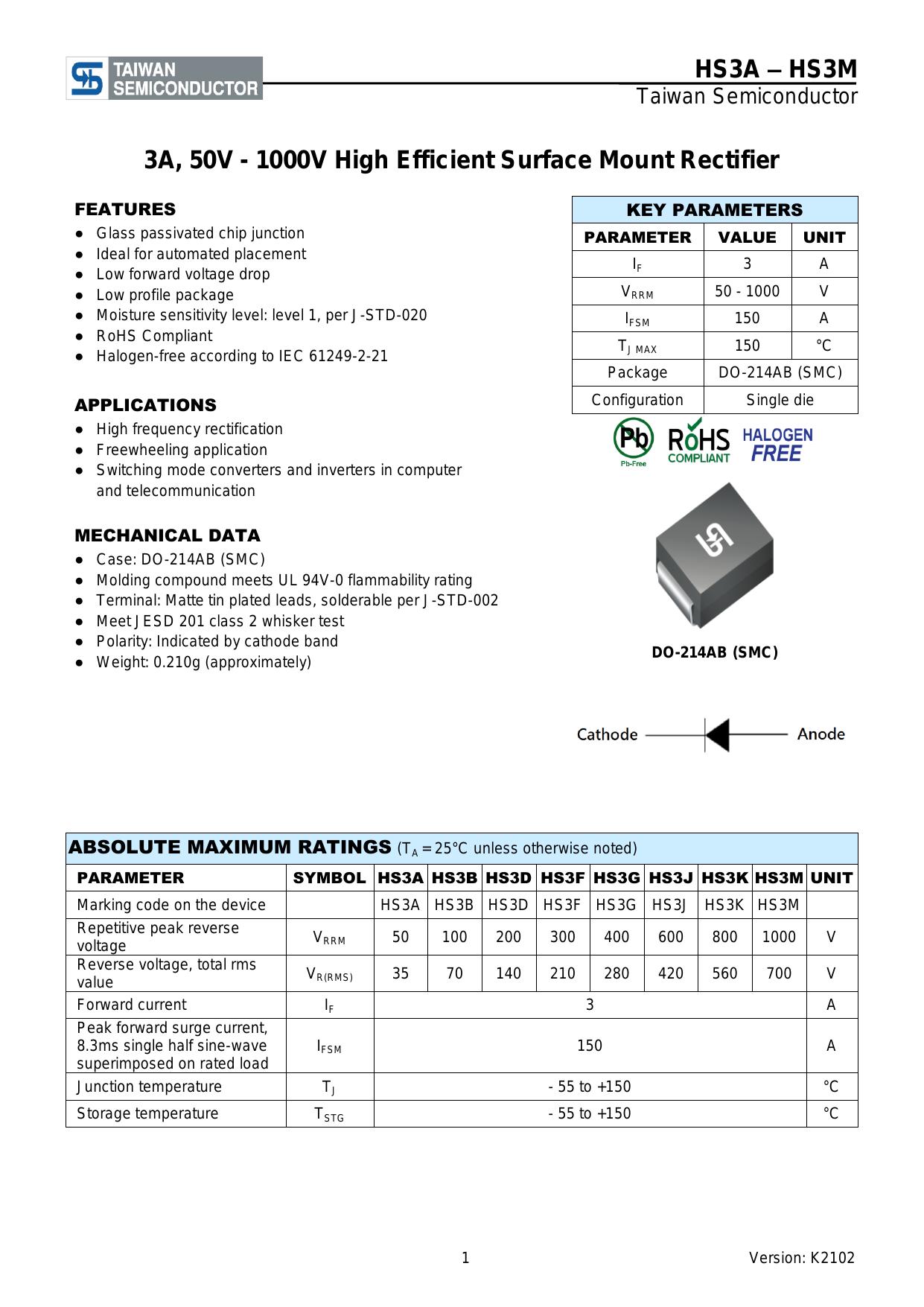

HS3M datasheet preview page 1

Similar Components

BZV55C5V6

Zener Diodes 5.6 Volt 500mW 5%

Taiwan SemiconductorUncategorized
36 2

LLZ5232B

Zener Diodes Zener 500mW 5v6

Taiwan SemiconductorUncategorized
34 3

SS16M

TAIWAN SEMICONDUCTOR SS16M Schottky Rectifier, Single, 60 V, 1 A, MicroSMA, 2 Pins, 680 mV

Taiwan SemiconductorUncategorized
42 4

About HS3M

The Taiwan Semiconductor HS3M Uncategorized datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Rectifiers 3.0 Amp 1000 Volt 150 Amp IFSM. Key parameters include Forward Current: 3A, Height: 2.62mm, Length: 7.11mm, Max Operating Temperature: 150°C, and Max Repetitive Reverse Voltage (Vrrm): 1kV. HS3M is manufactured by Taiwan Semiconductor as part of their Uncategorized product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.

Specifications

Manufacturer
Taiwan Semiconductor
Category
Uncategorized

Ask AI Assistant

Ask questions about HS3M specifications

AI Powered

Click to ask a quick question:

Parameters

Forward Current3A
Height2.62mm
Length7.11mm
Max Operating Temperature150°C
Max Repetitive Reverse Voltage (Vrrm)1kV
Max Reverse Current10uA
Max Surge Current150A
Min Operating Temperature-55°C
MountSurface Mount
Package/CaseSMC
Package Quantity3000
PackagingTape and Reel
Reverse Recovery Time75ns
Reverse Voltage1kV
RoHSCompliant
RoHS CompliantYes
Width6.22mm
