BAT54

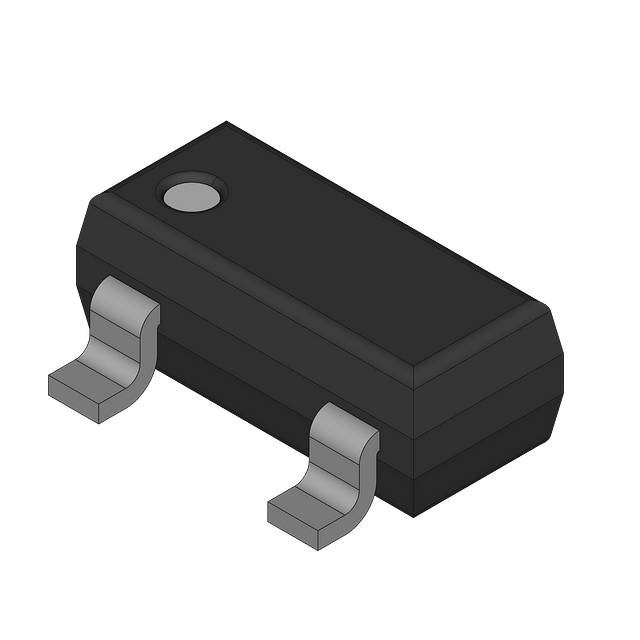

Single, surface mount Schottky diode with a 30V DC rated voltage and 200mA forward current. Features a 200mA average rectified current, 600mA peak non-repetitive surge current, and 2µA maximum reverse leakage. This RoHS compliant component offers a 10pF capacitance and 5ns reverse recovery time, housed in a compact SOT-23 package. Operating temperature range spans from -55°C to 150°C.
Similar Components
MBRS340T3G
Surface mount Schottky power rectifier with a maximum repetitive peak reverse voltage of 40V and a continuous forward current of 3.0A. This dual-terminal, single-element silicon rectifier operates across a wide temperature range from -65°C to 150°C. Designed for general-purpose rectification, it is supplied on a 2500-piece reel.
SS34
Schottky diode with 40V repetitive reverse voltage and 3A average rectified current. Features a 100A peak non-repetitive surge current and 500µA maximum reverse leakage. This surface mount component, housed in an SMC (DO-214AB) package, operates from -55°C to 150°C and offers a maximum power dissipation of 2.27W. Constructed with silicon and lead-free, RoHS-compliant materials, it is suitable for high-frequency applications.
MMBD4148CC
Ultra-fast switching diode featuring a 4ns reverse recovery time and 100V repetitive reverse voltage. This general-purpose rectifier offers a 200mA average rectified current and a 2A maximum surge current. Housed in a SOT-23 surface mount package, it operates from -55°C to 150°C with a 350mW power dissipation. The common cathode element configuration and RoHS compliance make it suitable for various electronic applications.
MBR120ESF
The MBR120ESFT3G is a single-element general purpose rectifier diode with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum reverse voltage of 20V and a maximum reverse leakage current of 10uA. The diode is packaged in a 2-pin plastic case and is RoHS compliant. It is available in quantities of 10,000 units per reel.
1N4148WT
Small signal switching rectifier diode for general-purpose applications. Features a maximum repetitive reverse voltage of 75V and a maximum reverse voltage of 75V DC. Offers a fast reverse recovery time of 4ns, an average rectified current of 200mA, and a forward current of 300mA. Packaged in a 2-pin SOD-523 surface mount package, supplied on tape and reel. Operates across a temperature range of -55°C to 150°C.
SS36F
Surface mount rectifier diode featuring a 60V repetitive peak reverse voltage and a maximum operating temperature of 150°C. This general-purpose rectifier diode offers a 3A current rating and operates across a temperature range of -55°C to 150°C. It is a dual-terminal, single-element silicon device designed for surface mounting.
About BAT54
The Onsemi BAT54 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single, surface mount Schottky diode with a 30V DC rated voltage and 200mA forward current. Features a 200mA average rectified current, 600mA peak non-repetitive surge current, and 2µA maximum reverse leakage. This RoHS compliant component offers a 10pF capacitance and 5ns reverse recovery time, housed in a compact SOT-23 package. Operating temperature range spans from -55°C to 150°C.. Key parameters include Average Rectified Current: 200mA, Capacitance: 10pF, Current Rating: 200mA, DC Rated Voltage: 30V, and Element Configuration: Single. BAT54 is manufactured by Onsemi as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Onsemi
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BAT54 specifications
Click to ask a quick question:
Parameters
| Average Rectified Current | 200mA |
| Capacitance | 10pF |
| Current Rating | 200mA |
| DC Rated Voltage | 30V |
| Element Configuration | Single |
| Forward Current | 200mA |
| Height | 0.93mm |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Max Forward Surge Current (Ifsm) | 600mA |
| Max Operating Temperature | 150°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Max Reverse Current | 2uA |
| Max Reverse Leakage Current | 2uA |
| Max Reverse Voltage (DC) | 30V |
| Max Surge Current | 600mA |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package/Case | SOT-23 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 600mA |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 5ns |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Weight | 0.03g |
| Width | 1.3mm |
