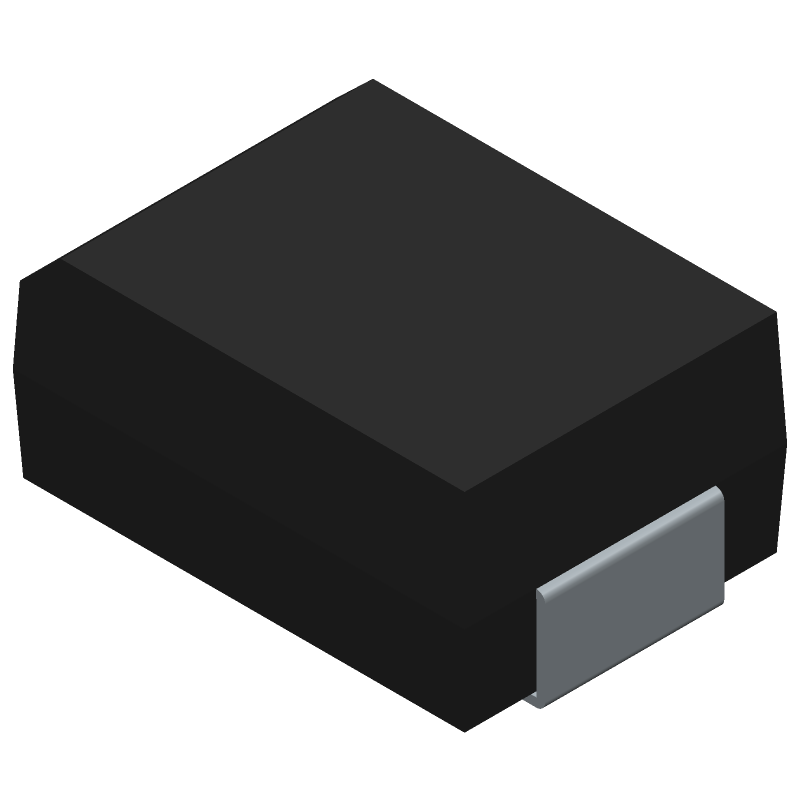

SS510B
Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SMB, 2 PIN
Similar Components
SS34B
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 40V V(RRM), Silicon, SMB, 2 PIN
SS54B
Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, SMB, 2 PIN
3SBP5-R
Fuse Miniature Slow Blow Acting 5A 250V Axial 6.35 X 31.75mm Glass CE/CSA/PSE/cULus
WV3EG232M64STSU403D4SG
512Mbyte DDR SDRAM DRAM Module, 200-pin USODIMM, operating at 400 MHz with a 64-bit data bus width. Features 8 x 512Mbit TSOP chips, organized as 32Mx64x2, with a CAS Latency of 3 and a maximum access time of 0.65 ns. This unbuffered small outline dual in-line memory module supports dual ranks and operates from a 2.3V to 2.7V supply, with a typical voltage of 2.5V. Designed for socket mounting, it has a non-lead-frame SMT basic package type and a maximum package length of 67.75mm.
HEX-JW-DRYC
The Eaton TRON HEX 2-Pole 250V 30A In-Line Fuse features a current rating of 30A and a voltage rating of 250V DC. It has a fuse size of 13/32" Dia x 1-1/2" L and is available in a bulk packaging. The fuse is illuminated and has a weight of 1lb. It is designed for use in in-line applications and is not radiation hardened.
US1A
Ultrafast Recovery Rectifier , DO-214AC/SMA, 50V, 1.00A, 50ns
About SS510B
The HY Electronic SS510B Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SMB, 2 PIN. Key parameters include Diode Element Material: SILICON, Diode Type: RECTIFIER DIODE, Eccn Code: EAR99, HTS Code: 8541.10.00.80, and Max Operating Temperature: 150. SS510B is manufactured by HY Electronic as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- HY Electronic
- Category
- Semiconductors
Ask AI Assistant
Ask questions about SS510B specifications
Click to ask a quick question:
Parameters
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Eccn Code | EAR99 |
| HTS Code | 8541.10.00.80 |
| Max Operating Temperature | 150 |
| Military Spec | False |
| Min Operating Temperature | -55 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| REACH | unknown |
| Rep Pk Reverse Voltage-Max | 100 |
| RS UK | 1,600300$0.1863$0.1714$0.1593$0.1485ReelView offer |
| Terminal Position | DUAL |
