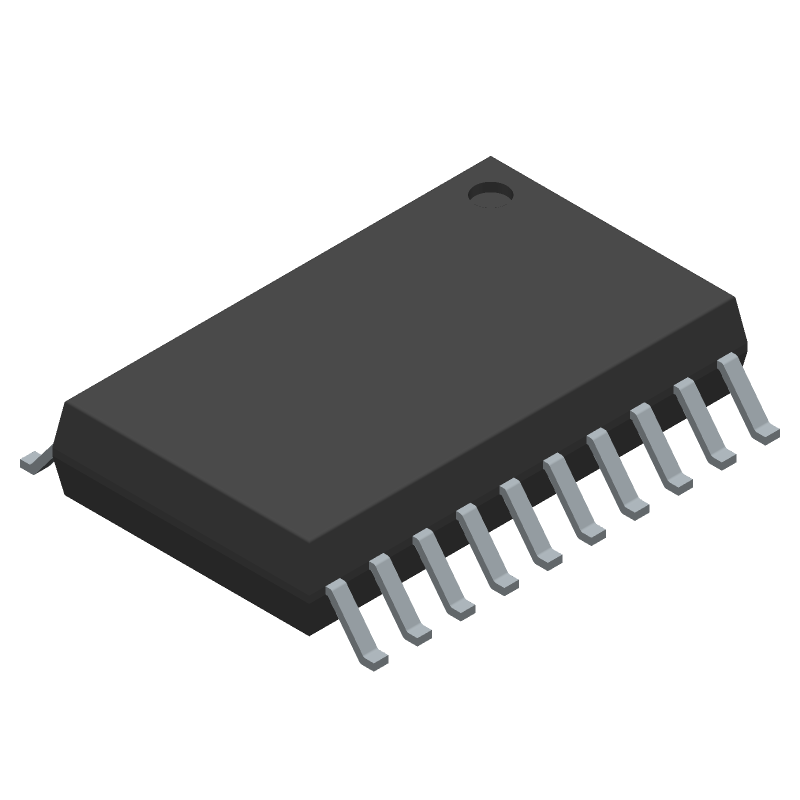

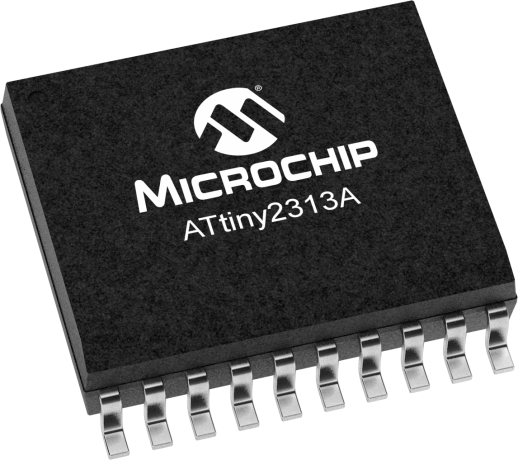

ATtiny2313
8-bit AVR RISC microcontroller featuring a 2KB Flash program memory and 128B RAM. Delivers up to 20 MHz clock speed with an 8-bit data bus width and RISC instruction set. Offers 18 programmable I/Os, two timers, and SPI/USART interface capabilities. Operates from 3.3V to 5V with a maximum supply voltage of 5.5V, housed in a 20-pin SOIC W package.
Similar Components
ATtiny84A-PU
8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 20MHz with an 8-bit data bus width. Includes 12 I/O pins, 8 ADC channels, 2 PWM channels, 2 SPI channels, and 1 I2C channel. DIP package for through-hole mounting, with an operating temperature range of -40°C to 85°C and a supply voltage range of 1.8V to 5.5V.
PIC16F84A-20I/P
8-Bit 20MHz RISC MCU, 1.75KB Flash, 68B RAM, PDIP-18
ATXMEGA128A4
16-bit AVR microcontroller featuring 128KB FLASH memory and 8KB RAM. Operates at up to 32MHz with a 1.6V to 3.6V supply voltage. Offers 34 I/Os, 12 ADC channels, 16 PWM channels, and multiple communication interfaces including I2C, SPI, USB, IrDA, UART, and USART. Includes peripherals like DMA, Brown-out Detect/Reset, POR, and WDT. Packaged in a 44-TQFP surface mount format.
ATtiny13
8-bit AVR microcontroller featuring 1KB Flash memory and 64B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 4 ADC channels, 6 I/Os, 2 PWM channels, 1 SPI channel, and 1 timer/counter. Peripherals include POR, PWM, and WDT. Packaged in an 8-pin SOIC for surface mounting, with operating temperatures from -40°C to 85°C and supply voltages from 2.7V to 5.5V.
PIC18F46K22-I/PT
8-bit RISC microcontroller featuring 64KB FLASH memory and 3896B RAM. Operates at up to 64MHz with an internal oscillator. Offers 35 I/O pins, including 25 programmable I/Os, and supports I2C, SPI, and USART/UART interfaces. Includes 28 ADC channels, 14 PWM channels, and 7 timers/counters. Packaged in a 44-pin TQFP (10x10mm, 1mm height) and operates from 1.8V to 5.5V. RoHS compliant with a temperature range of -40°C to 85°C.
PIC18F45K22-I/P
8-bit RISC microcontroller featuring 64MHz operation, 32KB FLASH memory, and 1.5KB RAM. This PDIP-packaged MCU offers 35 I/O pins, including 36 programmable I/Os, and supports I2C, SPI, and UART interfaces. Integrated peripherals include 14 PWM channels, 7 timers/counters, and 30 ADC channels across 2 A/D converters. Operating from 1.8V to 5.5V, it functions within a -40°C to 85°C temperature range and is RoHS compliant.
About ATtiny2313

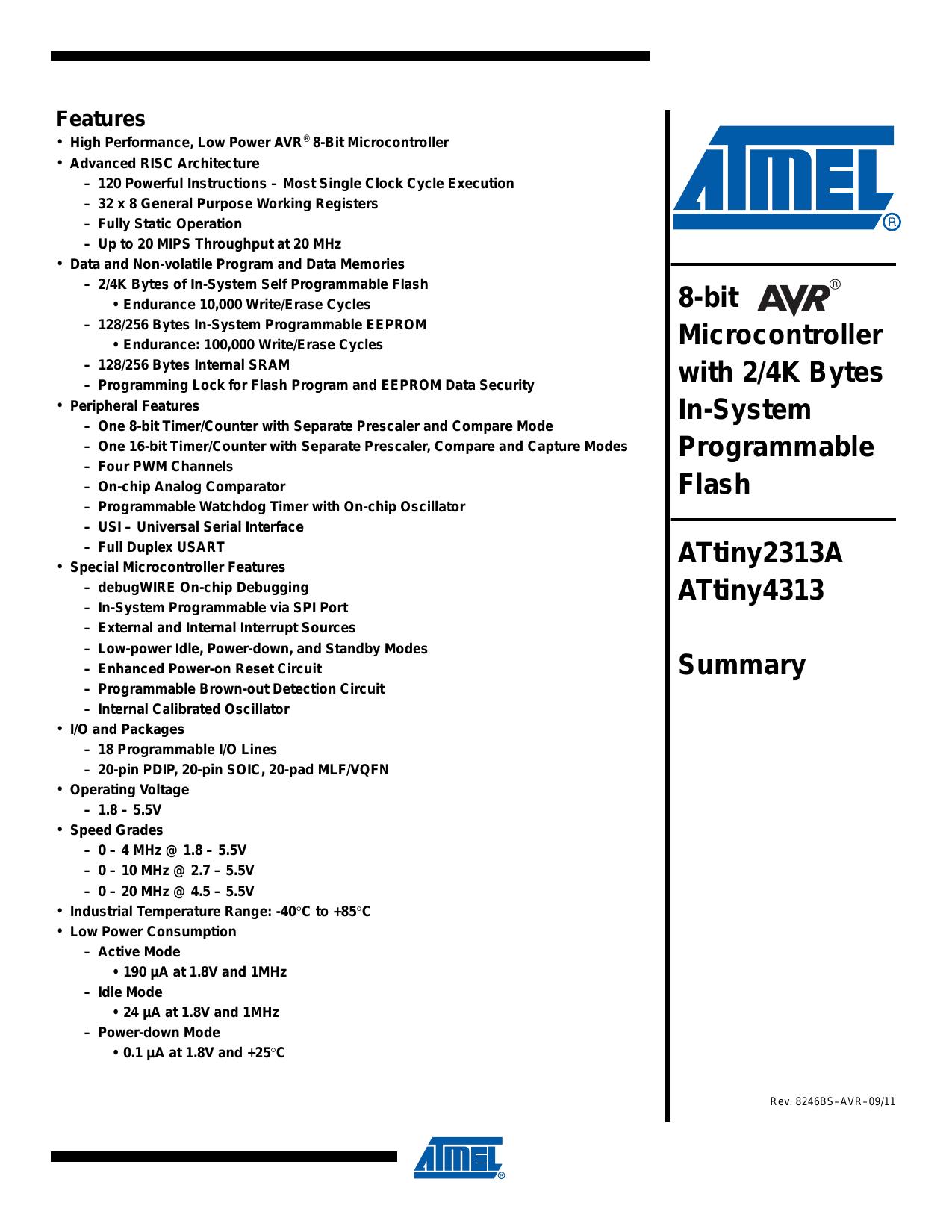

The Microchip ATtiny2313 Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 8-bit AVR RISC microcontroller featuring a 2KB Flash program memory and 128B RAM. Delivers up to 20 MHz clock speed with an 8-bit data bus width and RISC instruction set. Offers 18 programmable I/Os, two timers, and SPI/USART interface capabilities. Operates from 3.3V to 5V with a maximum supply voltage of 5.5V, housed in a 20-pin SOIC W package.. Key parameters include Core Architecture: AVR, Data Bus Width: 8bit, Device Core: AVR, Family Name: ATtiny, and Instruction Set Architecture: RISC. ATtiny2313 is manufactured by Microchip as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Microchip
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about ATtiny2313 specifications
Click to ask a quick question:
Parameters
| Core Architecture | AVR |
| Data Bus Width | 8bit |
| Device Core | AVR |
| Family Name | ATtiny |
| Instruction Set Architecture | RISC |
| Interface Type | SPI/USART |
| Maximum Clock Rate | 20MHz |
| Maximum CPU Frequency | 20MHz |
| Max Operating Supply Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Programmable I/Os | 18 |
| Number of Timers | 2 |
| Package/Case | SOIC W |
| Package Family Name | SOP |
| Pin Count | 20 |
| Programmability | Yes |
| Program Memory Size | 2KB |
| Program Memory Type | Flash |
| RAM Size | 128B |
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
| SPI | 2 |
| USART | 1 |
