ATTINY3216-SN

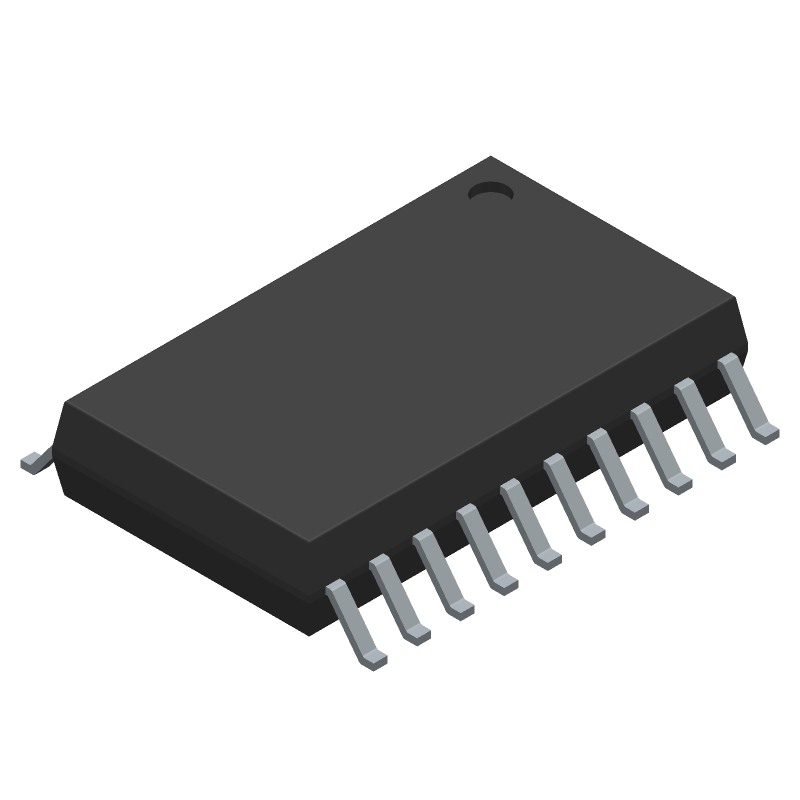

8-bit RISC microcontroller featuring 32KB FLASH program memory and 2KB RAM. Operates with a maximum clock frequency of 20MHz and a supply voltage range of 1.8V to 5.5V. Includes 18 I/O lines, PWM channels, ADC, and DAC capabilities. Packaged in a 20-terminal JEDEC R-PDSO-G20 package, suitable for industrial temperature ranges from -40°C to 105°C.
Similar Components
ATTINY13A
8-bit AVR microcontroller featuring 1KB FLASH memory and 64B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 4 ADC channels, 6 I/Os, 2 PWM channels, and 1 SPI interface. Supports internal oscillator and watchdog timer. Packaged in an 8-pin SOIC for surface mounting, with operating temperatures from -40°C to 85°C and supply voltages from 1.8V to 5.5V.
ATtiny84A-SSU
8-bit AVR microcontroller featuring 8KB FLASH memory and 1024B RAM. Operates at up to 20MHz with 12 I/O pins, including 8 ADC channels, 2 PWM channels, and 2 SPI channels. Supports I2C communication and includes 2 timers/counters. Designed for surface mount installation in a SOIC package, with an operating temperature range of -40°C to 85°C and a supply voltage from 1.8V to 5.5V.
ATtiny13
8-bit AVR microcontroller featuring 1KB Flash memory and 64B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 4 ADC channels, 6 I/Os, 2 PWM channels, 1 SPI channel, and 1 timer/counter. Peripherals include POR, PWM, and WDT. Packaged in an 8-pin SOIC for surface mounting, with operating temperatures from -40°C to 85°C and supply voltages from 2.7V to 5.5V.
PIC16F18325-I/SL
8-bit RISC microcontroller featuring 8KB Flash program memory and 1KB RAM. Operates at a maximum clock frequency of 32MHz with a supply voltage range of 2.5V to 5.5V. Includes 12 I/O lines, PWM channels, and an Analog-to-Digital Converter (ADC). Packaged in a 14-pin plastic SOP (R-PDSO-G14) with an industrial temperature grade (-40°C to 85°C).
PIC18F4550
8-bit PIC RISC microcontroller featuring 32KB Flash memory and 2KB RAM. Operates at up to 48MHz with an 8-bit address and data bus. Offers 35 programmable I/Os, including I2C, SPI, USB, and UART interfaces. Includes 13 ADC channels, 5 PWM channels, and 4 timers. Packaged in a 44-pin TQFP (10x10x1.05mm) for surface mounting, with a 0.5mm lead pitch. Operates from 4.2V to 5.5V, with a typical supply voltage of 5V.
ATmega64
8-bit AVR microcontroller featuring 64KB FLASH memory and 4KB RAM. Operates at up to 16MHz with an 8-bit data bus. Offers 53 I/O pins and supports I2C, SPI, and UART interfaces. Includes 4 timers/counters, 8 ADC channels, and peripherals like PWM and watchdog timer. Packaged in a QFN for surface mounting, with a wide operating temperature range of -40°C to 85°C.
About ATTINY3216-SN
The Microchip ATTINY3216-SN Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 8-bit RISC microcontroller featuring 32KB FLASH program memory and 2KB RAM. Operates with a maximum clock frequency of 20MHz and a supply voltage range of 1.8V to 5.5V. Includes 18 I/O lines, PWM channels, ADC, and DAC capabilities. Packaged in a 20-terminal JEDEC R-PDSO-G20 package, suitable for industrial temperature ranges from -40°C to 105°C.. Key parameters include Bit Size: 8, Clock Frequency-Max: 20, DAC Channels: YES, DMA Channels: NO, and Has ADC: YES. ATTINY3216-SN is manufactured by Microchip as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Microchip
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about ATTINY3216-SN specifications
Click to ask a quick question:
Parameters
| Bit Size | 8 |
| Clock Frequency-Max | 20 |
| DAC Channels | YES |
| DMA Channels | NO |
| Has ADC | YES |
| JEDEC Package Code | R-PDSO-G20 |
| Length | 12.8 |
| Max Operating Temperature | 105 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of I/O Lines | 18 |
| Number of Terminals | 20 |
| PWM Channels | YES |
| RAM (bytes) | 2048 |
| REACH | Compliant |
| RoHS | Yes |
| ROM Programmability | FLASH |
| ROM (words) | 32768 |
| Speed | 20 |
| Supply Voltage-Max | 5.5 |
| Supply Voltage-Min | 1.8 |
| Supply Voltage-Nom | 3 |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | DUAL |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Width | 7.5 |
