ATmega4809-AF

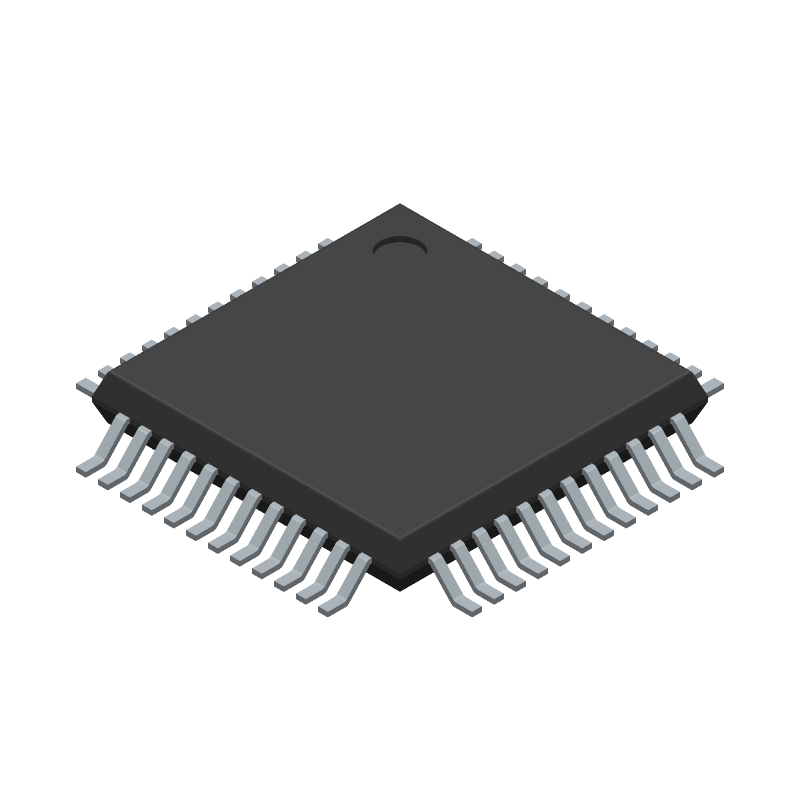

Automotive-grade 16-bit RISC microcontroller featuring a maximum clock frequency of 20 MHz. This 48-terminal device operates within a temperature range of -40°C to 125°C and supports a supply voltage from 1.8V to 5.5V with a maximum supply current of 8.5mA. It includes 41 I/O lines, 512 bytes of RAM, and 24576 words of FLASH program memory, along with an integrated ADC. The component is housed in a 7mm x 7mm S-PQFP-G48 package.
Similar Components
PIC16F1829-I/P
8-bit PIC RISC microcontroller featuring 14KB Flash memory and 1KB RAM. Operates at up to 32MHz with a 2.3V to 5.5V supply range. Offers 17 I/Os, including 18 programmable I/Os, and supports I2C, SPI, USART, UART, and LIN interfaces. Includes 12 ADC channels, 4 PWM channels, 5 timers/counters, and peripherals like Brown-out Detect/Reset, POR, WDT, and I2C. Packaged in a 20-pin PDIP with an operating temperature range of -40°C to 85°C.
ATMEGA48PA-AU
8-bit AVR microcontroller featuring 4KB FLASH memory and 512B RAM. Operates at up to 20MHz with an 8-bit data bus width. Offers I2C, SPI, and UART/USART interfaces, with 8 ADC channels and 6 PWM channels. Includes 3 timers/counters and a watchdog timer. Packaged in a 32-TQFP surface mount format, operating from 1.8V to 5.5V supply voltage.
PIC12F683-I/SN
8-bit PIC RISC microcontroller featuring 3.5KB Flash memory and 128B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Includes 4 analog input channels, 6 programmable I/Os, 1 PWM channel, and 3 timers. Supports RS-232 and USB interfaces, with an internal oscillator. Packaged in an 8-pin SOIC for surface mounting, operating from 4.5V to 5.5V.
ATmega8A
8-bit AVR microcontroller featuring 8KB FLASH memory and 1KB RAM. Operates at up to 16MHz with an internal oscillator. Offers 23 I/O pins, 8 ADC channels, and 3 PWM channels. Supports I2C, SPI, and UART/USART interfaces. Packaged in a 32-pin VQFN surface mount case, operating from 2.7V to 5.5V and -40°C to 85°C.
PIC16F84A-20I/P
8-Bit 20MHz RISC MCU, 1.75KB Flash, 68B RAM, PDIP-18
PIC16F1827-I/SO
8-bit RISC microcontroller featuring 32MHz operation and 7KB FLASH memory. This PIC microcontroller offers 15 programmable I/O pins, 12 A/D channels, and 4 PWM channels. Integrated peripherals include I2C, SPI, UART, and a watchdog timer. Operating from 1.8V to 5.5V, it is housed in an 18-pin SOIC package with a temperature range of -40°C to 85°C.
About ATmega4809-AF
The Microchip ATmega4809-AF Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Automotive-grade 16-bit RISC microcontroller featuring a maximum clock frequency of 20 MHz. This 48-terminal device operates within a temperature range of -40°C to 125°C and supports a supply voltage from 1.8V to 5.5V with a maximum supply current of 8.5mA. It includes 41 I/O lines, 512 bytes of RAM, and 24576 words of FLASH program memory, along with an integrated ADC. The component is housed in a 7mm x 7mm S-PQFP-G48 package.. Key parameters include Bit Size: 16, Clock Frequency-Max: 20, DAC Channels: NO, DMA Channels: NO, and Has ADC: YES. ATmega4809-AF is manufactured by Microchip as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Microchip
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about ATmega4809-AF specifications
Click to ask a quick question:
Parameters
| Bit Size | 16 |
| Clock Frequency-Max | 20 |
| DAC Channels | NO |
| DMA Channels | NO |
| Has ADC | YES |
| JEDEC Package Code | S-PQFP-G48 |
| Length | 7 |
| Max Operating Temperature | 125 |
| Military Spec | False |
| Min Operating Temperature | -40 |
| Number of I/O Lines | 41 |
| Number of Terminals | 48 |
| PWM Channels | NO |
| RAM (bytes) | 512 |
| REACH | Compliant |
| RoHS | Yes |
| ROM Programmability | FLASH |
| ROM (words) | 24576 |
| Speed | 20 |
| Supply Current-Max | 8.5 |
| Supply Voltage-Max | 5.5 |
| Supply Voltage-Min | 1.8 |
| Supply Voltage-Nom | 3 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | QUAD |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Width | 7 |
