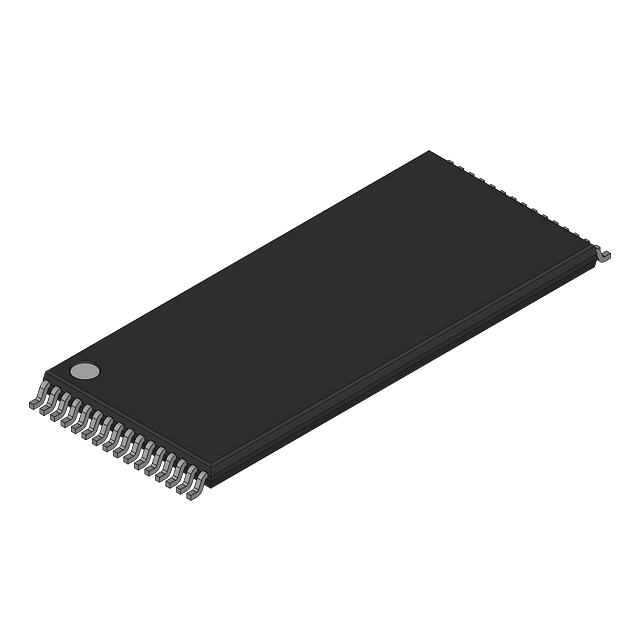

UPD431000AGZ-70LL-KJH-E3-A
Standard SRAM, 128KX8, 70NS
Similar Components
SDR0604-100
BOURNS SDR0604-100 Surface Mount Power Inductor, 10 H, 1.45 A, 2 A, Unshielded, 0.1 ohm
687614050002
FFC Cable 14 Pos 0.5mm Pitch 50mm L 60V 500mA Tin Plated
PTC-04-DB-HALL01
PTC04 DAUGHTERBOARD HALL01
OARS3R010JLF
Current Sense Resistors - SMD 3W 10 mOhms '5%
687718200002
FFC Cable 18 Pos 0.5mm Pitch 200mm L, Tin Plated Copper
B65844W1010D001
B65844W1010D001 4.6mm 9.5mm Pin Termination Resistor
About UPD431000AGZ-70LL-KJH-E3-A
The Renesas UPD431000AGZ-70LL-KJH-E3-A Uncategorized datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Standard SRAM, 128KX8, 70NS. Key parameters include Access Time: 70ns, Address Bus Width: 17b, Density: 1Mb, Max Operating Temperature: 70°C, and Max Supply Voltage: 5.5V. UPD431000AGZ-70LL-KJH-E3-A is manufactured by Renesas as part of their Uncategorized product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Renesas
- Category
- Uncategorized
Ask AI Assistant
Ask questions about UPD431000AGZ-70LL-KJH-E3-A specifications
Click to ask a quick question:
Parameters
| Access Time | 70ns |
| Address Bus Width | 17b |
| Density | 1Mb |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 70mA |
| Number of Ports | 1 |
| Number of Words | 128000 |
| Operating Supply Voltage | 5V |
| Package/Case | TSOP |
| Packaging | Tape and Reel |
| RoHS | Compliant |
| Sync/Async | Asynchronous |
| Word Size | 8b |
