TPS7A3001DGNR

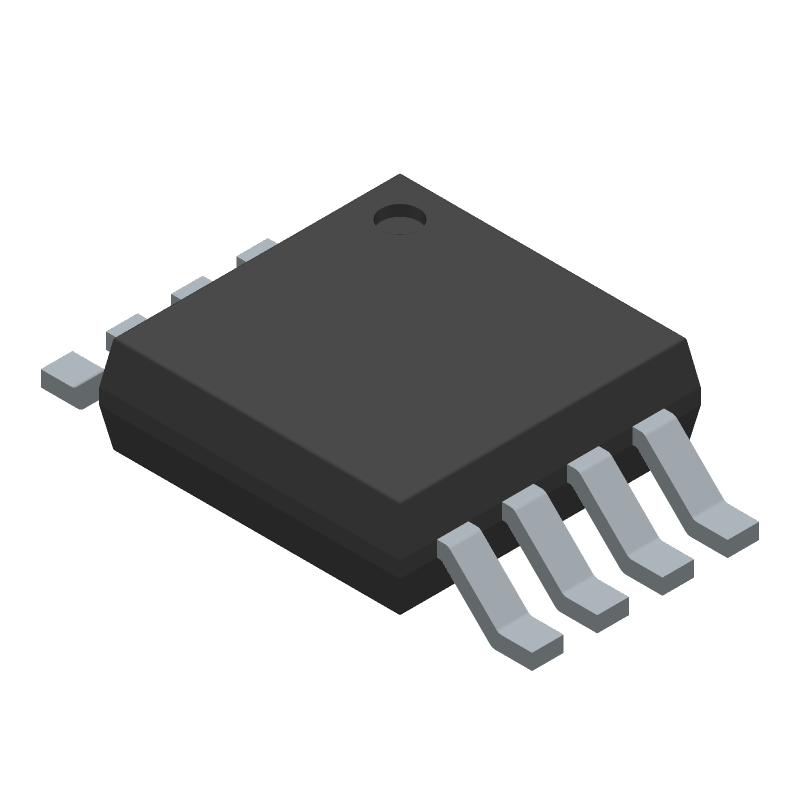

Negative adjustable low-dropout voltage regulator (LDO) offering 200mA output current with a low dropout voltage of 325mV. Features high Power Supply Rejection Ratio (PSRR) and low noise for sensitive applications. Operates with input voltages from -3V to -36V, providing adjustable output voltages between -1.18V and -33V with 1.5% accuracy. Housed in an 8-HVSSOP package, this RoHS compliant component is suitable for operation from -40°C to 125°C.
Similar Components
LM1117DT-ADJ/NOPB
800mA Adj LDO, 15V In, 1.2V Dropout, 1% Acc, TO-252
LM1117
Adjustable positive linear voltage regulator, 800mA output current, 1.2V dropout voltage, and 1% output voltage accuracy. Features a maximum input voltage of 15V and an adjustable output voltage range from 1.25V to 13.8V. This surface mount component is housed in a TO-252 package, operating from -40°C to 125°C. RoHS compliant and lead-free.
MC33063
1.5-A boost, buck, inverting switching regulator, operation from -40°C to 85°C 8-SOIC -40 to 85
TPS5430QDDARQ1
3A Buck Converter, 5.5-36V In, 31V Out, 500kHz, 95% Eff, HSOP
LM338T/NOPB
5A Adj. LDO Regulator, 40V In, TO-220, 1.24-32V Out
TPS54531DDAR
5A, 570kHz step-down converter with adjustable output voltage from 800mV to 26.04V. Features a wide input voltage range of 3.5V to 28V and a maximum output current of 5A. Operates within a temperature range of -40°C to 85°C. Includes Eco-mode for improved efficiency and is packaged in a lead-free, surface-mount 8-SO PowerPAD.
About TPS7A3001DGNR
The Texas Instruments TPS7A3001DGNR Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Negative adjustable low-dropout voltage regulator (LDO) offering 200mA output current with a low dropout voltage of 325mV. Features high Power Supply Rejection Ratio (PSRR) and low noise for sensitive applications. Operates with input voltages from -3V to -36V, providing adjustable output voltages between -1.18V and -33V with 1.5% accuracy. Housed in an 8-HVSSOP package, this RoHS compliant component is suitable for operation from -40°C to 125°C.. Key parameters include Accuracy: 1.5%, Dropout Voltage: 325mV, Lead Free: Lead Free, Max Input Voltage: -36V, and Max Operating Temperature: 125°C. TPS7A3001DGNR is manufactured by Texas Instruments as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Texas Instruments
- Category
- Power Supplies
Ask AI Assistant
Ask questions about TPS7A3001DGNR specifications
Click to ask a quick question:
Parameters
| Accuracy | 1.5% |
| Dropout Voltage | 325mV |
| Lead Free | Lead Free |
| Max Input Voltage | -36V |
| Max Operating Temperature | 125°C |
| Max Output Current | 200mA |
| Max Output Voltage | -33V |
| Max Power Dissipation | 1.83W |
| Min Current Limit | 220mA |
| Min Input Voltage | -3V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | -1.18V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Type | Adjustable |
| Output Voltage | -33V |
| Output Voltage Accuracy | 1.5% |
| Package/Case | MSOP |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Negative |
| Power Dissipation | 1.83W |
| Quest | 1,6979——$5.3966——View offer |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | -1.166V |
| RoHS | Compliant |
| RoHS Compliant | Yes |
