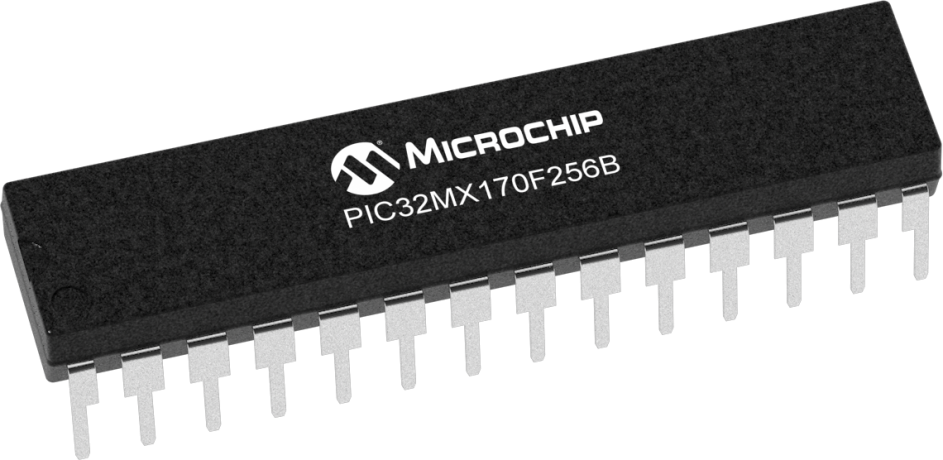

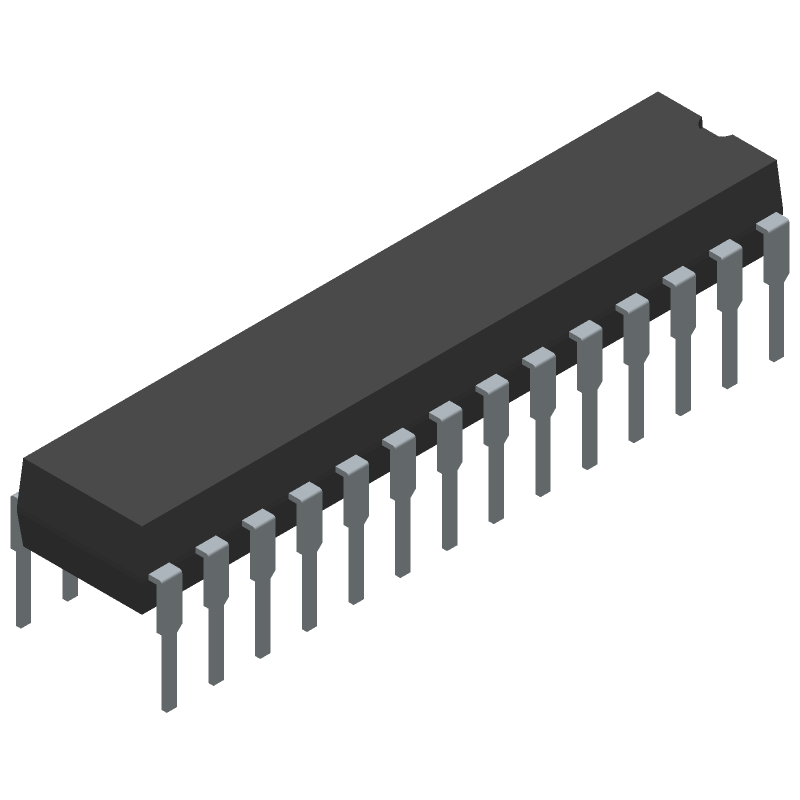

PIC32MX170F256B-50I/SP
32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 50MHz. This through-hole mounted PDIP package offers 256KB of FLASH memory and 64KB of RAM. Integrated interfaces include I2C (2 channels), SPI (2 channels), USB, UART (2 channels), IrDA, USART, and I2S. Additional features include 10 ADC channels, 21 programmable I/Os, 5 timers/counters, and peripherals such as DMA, PWM, WDT, POR, and Brown-out Detect/Reset. Designed for operation between -40°C and 85°C with a supply voltage range of 2.3V to 3.6V.
Similar Components
ATTINY25-20SU
8-bit AVR microcontroller featuring 2KB FLASH memory and 128B RAM. Operates at up to 20MHz with an 8-bit address and data bus. Offers 6 I/Os, 4 ADC channels, 1 I2C, 1 SPI, 1 UART, and 6 PWM channels. Includes 2 timers/counters, internal oscillator, and watchdog timer. Packaged in an 8-pin SOIC for surface mounting, with a supply voltage range of 2.7V to 5.5V and operating temperatures from -40°C to 85°C.
ATXMEGA128A4U-AU
AVR MCU 128KB FLASH 32MHz 16b 34 I/O 44TQFP
PIC18F4550-I/P
8-bit PIC RISC microcontroller featuring 32KB Flash memory and 2KB RAM. Operates at up to 48MHz with an 8-bit address and data bus. Offers 35 programmable I/Os, multiple interfaces including I2C, SPI, USB, and UART, and 13 A/D channels. Packaged in a 40-pin PDIP for through-hole mounting, this RoHS compliant component supports a supply voltage range of 4.2V to 5.5V and operates from -40°C to 85°C.
PIC18F25K22-I/SP
8-bit RISC Flash Microcontroller, operating at up to 64MHz. Features 32KB Flash memory, 1.5KB RAM, and 24 I/O pins with 25 programmable I/O. Includes multiple communication interfaces: I2C (2 channels), SPI (2 channels), and UART/USART (2 channels). Offers 7 timers/counters, 5 PWM channels, and 2 A/D converters with 17 channels. Packaged in a 28-pin PDIP, this lead-free component supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
ATTINY3217-MNR
8-bit RISC microcontroller featuring 32KB Flash program memory and 2KB RAM. Operates at a maximum clock frequency of 20MHz, with 22 I/O lines and a 5V nominal supply voltage (4.5V-5.5V range). Includes PWM and DAC capabilities, with an integrated ADC. Packaged in a 24-terminal S-XQCC-N24 JEDEC code, this industrial-grade component supports temperatures from -40°C to 105°C.
ATtiny84A-PU
8-bit AVR microcontroller featuring 8KB FLASH memory and 512B RAM. Operates at up to 20MHz with an 8-bit data bus width. Includes 12 I/O pins, 8 ADC channels, 2 PWM channels, 2 SPI channels, and 1 I2C channel. DIP package for through-hole mounting, with an operating temperature range of -40°C to 85°C and a supply voltage range of 1.8V to 5.5V.
About PIC32MX170F256B-50I/SP
The Microchip PIC32MX170F256B-50I/SP Computing Embedded Systems datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 50MHz. This through-hole mounted PDIP package offers 256KB of FLASH memory and 64KB of RAM. Integrated interfaces include I2C (2 channels), SPI (2 channels), USB, UART (2 channels), IrDA, USART, and I2S. Additional features include 10 ADC channels, 21 programmable I/Os, 5 timers/counters, and peripherals such as DMA, PWM, WDT, POR, and Brown-out Detect/Reset. Designed for operation between -40°C and 85°C with a supply voltage range of 2.3V to 3.6V.. Key parameters include Core Architecture: PIC, Data Bus Width: 32b, Frequency: 50MHz, Height: 0.15inch, and Interface: I2C, SPI, USB, UART, IrDA, USART, I2S. PIC32MX170F256B-50I/SP is manufactured by Microchip as part of their Computing Embedded Systems product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Microchip
- Category
- Computing Embedded Systems
Ask AI Assistant
Ask questions about PIC32MX170F256B-50I/SP specifications
Click to ask a quick question:
Parameters
| Core Architecture | PIC |
| Data Bus Width | 32b |
| Frequency | 50MHz |
| Height | 0.15inch |
| Interface | I2C, SPI, USB, UART, IrDA, USART, I2S |
| Length | 35.56mm |
| Max Frequency | 50MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Through Hole |
| Number of ADC Channels | 10 |
| Number of I2C Channels | 2 |
| Number of I/Os | 21 |
| Number of Programmable I/O | 21 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package/Case | PDIP |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | PIC® 32MX |
| Watchdog Timer | Yes |
| Weight | 0.147798oz |
| Width | 0.295inch |
