PC817

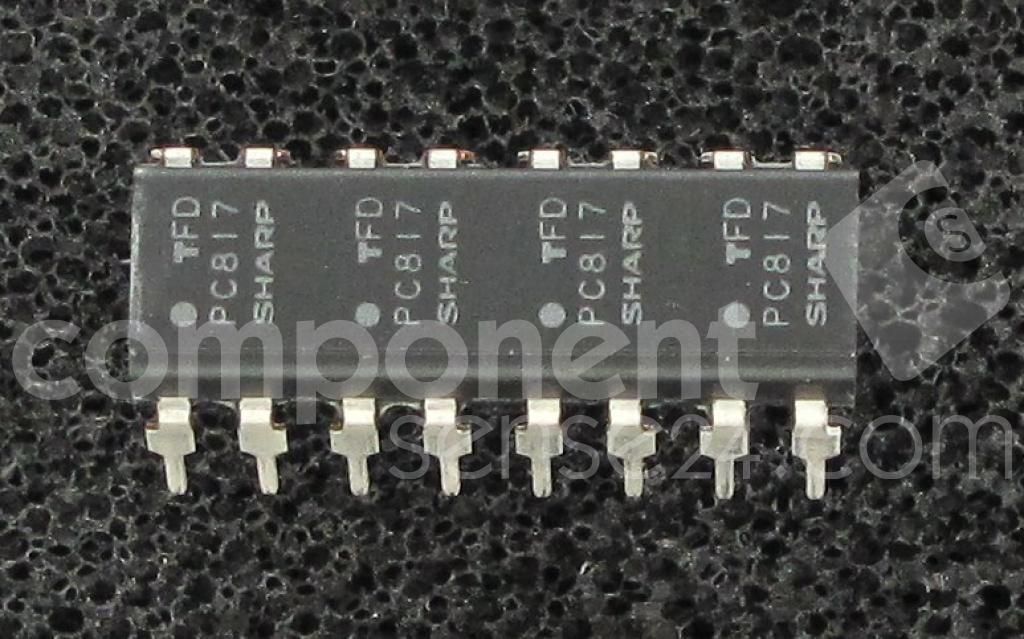

The Sharp PC817 is a general-purpose optocoupler with a collector-emitter saturation voltage of 200mV and a collector-emitter voltage rating of 35V. It has a current transfer ratio of 600% and a forward current of 50mA. The device is packaged in a PDIP-4 package and is suitable for through-hole mounting. The PC817 operates over a temperature range of -30°C to 100°C, but is not RoHS compliant.
Similar Components
MOC3043M
Single-channel triac output optocoupler designed for AC load control. Features zero-crossing switching for reduced electromagnetic interference. With a maximum output voltage of 400V and a wide operating temperature range from -40°C to 85°C, this component ensures reliable performance in demanding applications. Encased in a 6-pin PDIP package, it offers efficient isolation for sensitive control circuitry.
SK6812
-40℃~+85℃ 0.6mA 1.78mm 120° 1kHz 2.8mm 2000V 3.2mm 3.7V~5.5V 800Kbit/s G:815mcd~1275mcd R:620nm~625nm Semi-transparent lens SMD RGB LEDs(Built-in IC) ROHS
TLP291
Optocoupler - Transistor Output, 1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER
MOC3083M
Triac AC-OUT 1-CH 800V 6-Pin PDIP W Tube
HCPL2630
High-speed, logic-output optocoupler featuring two channels for unidirectional signal transmission. Achieves a 10Mbps data rate with a 75ns propagation delay and 12ns fall time. Offers 2.5kV isolation voltage and a maximum output current of 50mA per channel. DIP package with through-hole mounting, operating from -40°C to 85°C.
WS2812B
Addressable RGB LED light source integrates the RGB LED die and digital control circuit in a 5050 component package. The device uses a single-wire NZR data protocol with 24-bit GRB color data and built-in signal reshaping for cascaded pixels. The supply-voltage rating is 3.5 V to 5.3 V, with operation specified from -25 °C to 80 °C. Each primary color supports 256 brightness levels for 16,777,216 full-color display combinations, with a scan frequency of at least 400 Hz/s and 800 kbps data transfer.
About PC817
The Sharp PC817 Optoelectronics Displays datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: The Sharp PC817 is a general-purpose optocoupler with a collector-emitter saturation voltage of 200mV and a collector-emitter voltage rating of 35V. It has a current transfer ratio of 600% and a forward current of 50mA. The device is packaged in a PDIP-4 package and is suitable for through-hole mounting. The PC817 operates over a temperature range of -30°C to 100°C, but is not RoHS compliant.. Key parameters include Collector Emitter Saturation Voltage: 200mV, Collector Emitter Voltage (VCEO): 35V, Current Transfer Ratio: 600%, Fall Time: 18000ns, and Forward Current: 50mA. PC817 is manufactured by Sharp as part of their Optoelectronics Displays product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Sharp
- Category
- Optoelectronics Displays
Ask AI Assistant
Ask questions about PC817 specifications
Click to ask a quick question:
Parameters
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 35V |
| Current Transfer Ratio | 600% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Input Type | DC |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package/Case | PDIP |
| Packaging | Sleeve |
| Power Dissipation | 200mW |
| Reverse Breakdown Voltage | 6V |
| RoHS | Not Compliant |
| RoHS Compliant | No |
