LD6805K/33H115

IC REG LDO 3.3V 0.15A 4HUSON

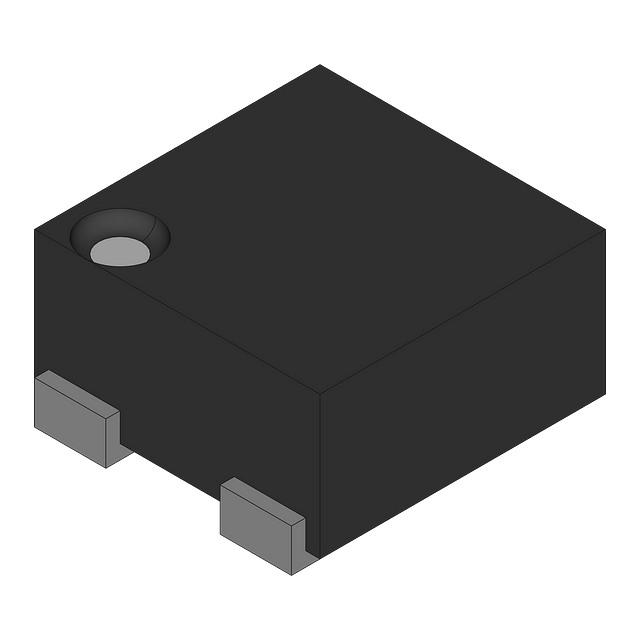

LD6805K/33H115 datasheet preview page 1

Similar Components

PMEG6020ETP

Rectifier Diode, Single, 60 V, 2 A, 530 Mv, 50 A, 175 C

NXPUncategorized
67 4

PESD3V3L1UL

45 W Unidirectional Silicon Tvs Diode

NXPUncategorized
41 3

74HC21D,652

74HC21 - Dual 4-input AND gate SOIC 14-Pin

NXPUncategorized
36 5

BC850CW,115

BC849W; BC850W - NPN general purpose transistors SC-70 3-Pin

NXPUncategorized
35 3

NTB0104BQ

NTB0104 Series 4-BIT Registered Transceiver True Output PQCC14

NXPUncategorized
45 3

PMEG4005EH

Rectifier Diode, Single, 40 V, 500 Ma, 470 Mv, 10 A, 150 C

NXPUncategorized
35 4

About LD6805K/33H115

The NXP LD6805K/33H115 Uncategorized datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: IC REG LDO 3.3V 0.15A 4HUSON. Key parameters include Accuracy: 2%, Dropout Voltage: 250mV, Lead Free: Lead Free, Max Input Voltage: 5.5V, and Max Operating Temperature: 85°C. LD6805K/33H115 is manufactured by NXP as part of their Uncategorized product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.

Specifications

Manufacturer
NXP
Category
Uncategorized

Ask AI Assistant

Ask questions about LD6805K/33H115 specifications

AI Powered

Click to ask a quick question:

Parameters

Accuracy2%
Dropout Voltage250mV
Lead FreeLead Free
Max Input Voltage5.5V
Max Operating Temperature85°C
Max Output Current150mA
Max Power Dissipation400mW
Min Input Voltage2.3V
Min Operating Temperature-40°C
MountSurface Mount
Number of Outputs1
Output Current150mA
Output TypeFixed
Output Voltage3.3V
Output Voltage Accuracy2%
Package/CaseSOT-1194
Package Quantity10000
PackagingTape and Reel
PolarityPositive
Power Dissipation400mW
Radiation HardeningNo
RoHSCompliant
