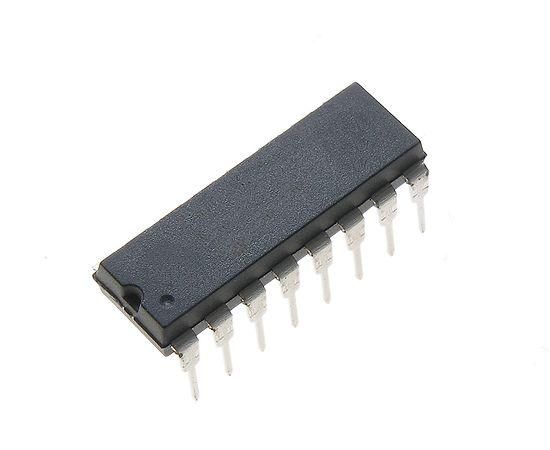

L6220
Darlington Transistors 1.8 Amp Quad Switch
Similar Components
L4969D013TR
Linear Regulators - Standard Triple w/Lo-Spd Tran
A067
GATOR CLIP INSULATED 10A
5421-60-2
Test Leads MINI PINCER TEST
A621
TEKTRONIX A621 PROBE, CURRENT, 2000A
5606-50-P
PROBE IMMERSION PRT 50MM -200 TO
72-116
NTE ELECTRONICS 72-116 TEST CLIP, 19MM, CRIMP/SCREW, 25A
About L6220
The Stmicroelectronics L6220 Test Accessories datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Darlington Transistors 1.8 Amp Quad Switch. Key parameters include Continuous Collector Current: 1.8A, Max Collector Current: 1.8A, Max Operating Temperature: 150°C, Min Operating Temperature: -40°C, and Mount: Through Hole. L6220 is manufactured by Stmicroelectronics as part of their Test Accessories product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Stmicroelectronics
- Category
- Test Accessories
Ask AI Assistant
Ask questions about L6220 specifications
Click to ask a quick question:
Parameters
| Continuous Collector Current | 1.8A |
| Max Collector Current | 1.8A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 4 |
| Package/Case | PDIP |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | NPN |
| Power Dissipation | 4.3W |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | L6220 |
| Voltage | 7V |
