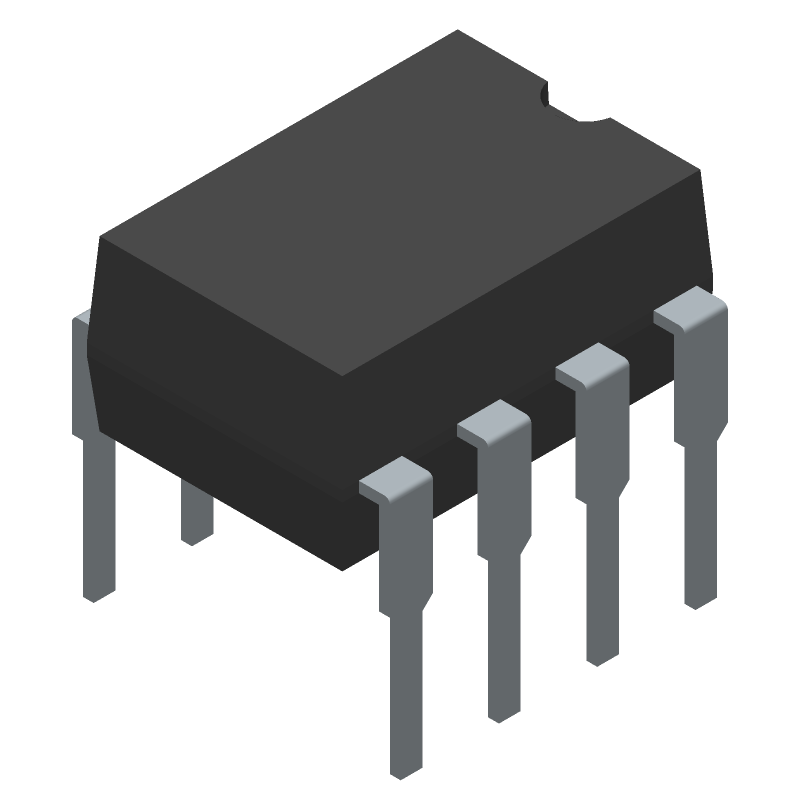

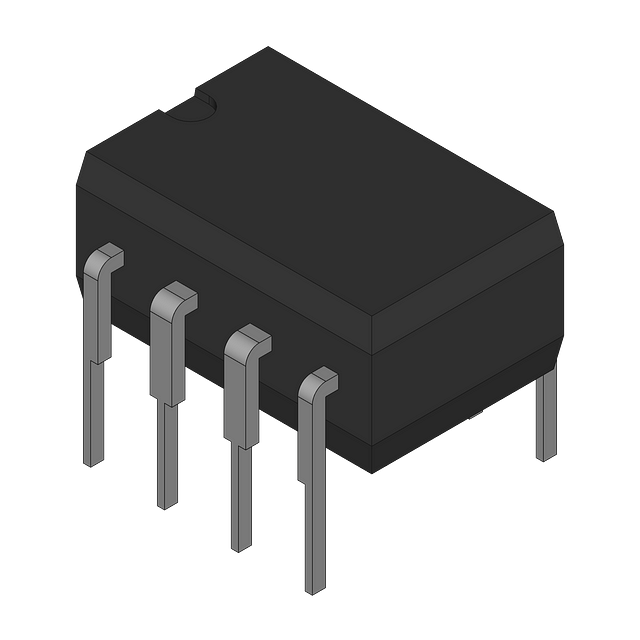

ICL7660CPAZ
CMOS voltage converter, a charge pump topology, offers adjustable output voltage from -1.5V to -12V with a maximum output current of 45mA. Operating with a supply voltage range of 1.5V to 10V, this inverting logic function component features a maximum input voltage of 10V and a low maximum supply current of 165uA. Designed for both surface mount and through-hole applications, it operates within a temperature range of 0°C to 70°C and is RoHS compliant.
Similar Components
MC34063AP1G
Adjustable DC-DC controller and regulator for non-inverting, inverting, step-up, and step-down applications. Features a wide input voltage range of 3V to 40V and an adjustable output voltage from 1.25V to 40V with a maximum output current of 1.5A. Operates with a maximum switching frequency of 100kHz and is housed in a through-hole 8-pin PDIP package. This RoHS compliant component is designed for a temperature range of 0°C to 70°C.
LM2587
Adjustable 5A DC-DC boost regulator with a wide input voltage range of 4V to 40V. Features a maximum output voltage of 60V and operates at a 115kHz switching frequency, achieving up to 90% efficiency. This surface mount component, housed in a TO-263 package, supports a maximum output current of 5A and is designed for operation between -40°C and 125°C.
LD1117
Adjustable and fixed low drop positive voltage regulator, a single-channel, surface-mount linear voltage regulator with a 1.3A maximum output current. Features include a 1.1V dropout voltage, 1% output voltage accuracy, and a 1.262V reference voltage. Operates with input voltages from 2.35V to 15V, providing adjustable or fixed output voltages up to 15V. Packaged in a SOT-223 (R-PDSO-G3) plastic case, this RoHS compliant component is designed for surface mounting with a peak reflow temperature of 260°C.
LM2596S-ADJ
7.5A SWITCHING REGULATOR, 173kHz SWITCHING FREQ-MAX, PSSO5, TO-263, SMT-5
LM7912CT
Negative fixed voltage regulator IC, providing a stable -12V output with a maximum output current of 1A. Features a 2V dropout voltage and a maximum input voltage of -35V. Operates across a temperature range of 0°C to 125°C. Packaged in a TO-220-3 through-hole mount configuration. Offers a Power Supply Rejection Ratio (PSRR) of 60dB.
MCP1700T-3302E/TT
Positive fixed output linear voltage regulator, 3.3V nominal output voltage, with a maximum output current of 250mA. Features a low dropout voltage of 178mV and an accuracy of 2%. Operates with a minimum input voltage of 2.3V and a maximum input voltage of 6V. Packaged in a 3-pin SOT-23 surface mount case, this RoHS compliant component has a maximum operating temperature of 125°C.
About ICL7660CPAZ
The Intersil ICL7660CPAZ Power Supplies datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: CMOS voltage converter, a charge pump topology, offers adjustable output voltage from -1.5V to -12V with a maximum output current of 45mA. Operating with a supply voltage range of 1.5V to 10V, this inverting logic function component features a maximum input voltage of 10V and a low maximum supply current of 165uA. Designed for both surface mount and through-hole applications, it operates within a temperature range of 0°C to 70°C and is RoHS compliant.. Key parameters include Height: 4.95mm, Lead Free: Lead Free, Length: 10.16mm, Logic Function: Inverting, and Max Input Voltage: 10V. ICL7660CPAZ is manufactured by Intersil as part of their Power Supplies product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Intersil
- Category
- Power Supplies
Ask AI Assistant
Ask questions about ICL7660CPAZ specifications
Click to ask a quick question:
Parameters
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Logic Function | Inverting |
| Max Input Voltage | 10V |
| Max Operating Temperature | 70°C |
| Max Output Current | 45mA |
| Max Output Voltage | -1.5V |
| Max Supply Current | 165uA |
| Max Supply Voltage | 10V |
| Min Input Voltage | 1.5V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | -12V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount, Through Hole |
| Output Current | 45mA |
| Output Type | Adjustable |
| Package/Case | PDIP |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 10kHz |
| Topology | Charge Pump |
| Width | 7.11mm |
