BK/S-8001-1
Single-pole, single-circuit fuse block with a 25A current rating and 300VDC/300VAC voltage rating. Features bolt mounting and solder lug termination. Constructed from black thermoplastic with a UL94 V-0 flammability rating. Designed for 3AG fuse sizes (1-1/4" L x 1/4" Dia). Operates within a temperature range of 0°C to 130°C. Supplied in bulk packaging.
Similar Components
BK/AGC-V-6-R
The Eaton BK/AGC-V-6-R fuse has a current rating of 6A and a maximum voltage rating of 250V AC. It features a lead-free tin contact plating and is packaged in bulk quantities of 100. The fuse has a diameter of 6.35mm and a length of 1.292 inches, with a through-hole mounting style. It is compliant with UL and CSA approvals and has a resistance of 20mR. The Eaton BK/AGC-V-6-R is a general-purpose fuse suitable for a variety of applications.
630NHG3B
The Eaton 630NHG3B is a fuse holder rated for 630A current and 500V DC voltage. It has a silver contact plating and meets VDE approval standards. The holder is designed for use with 3A fuses and has a body height and length of 75mm. It is packaged in bulk and is RoHS compliant.
BK1/S500-80-R
This 250V fuse holder features a nickel-plated contact plating and a 5R DC cold resistance. It has a current rating of 80mA and is available in bulk packaging with 1000 units per package. The holder is designed for use with fuses and is compliant with RoHS regulations.
BK/GMA-800-R
Electric Fuse, Fast Blow, 0.8A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT
PV-2A10F
The Eaton PV-2A10F is a 1kV 2A electrical fuse holder with a clip termination, suitable for use in a variety of applications. It has a maximum operating temperature of 90°C and a minimum operating temperature of -40°C. The fuse holder is available in a bulk packaging quantity of 10 units. It meets the approvals of UL, CSA, and CCC.
KTN-R-20
The Eaton KTN-R-20 is a 20A surface mount MELF fuse with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum voltage rating of 250V AC and is available in a bulk packaging quantity of 10. The fuse is 2 inches in length and has a diameter of 0.56 inch, with a weight of 0.768 ounces. It is designed for use in circuit protection applications.
About BK/S-8001-1

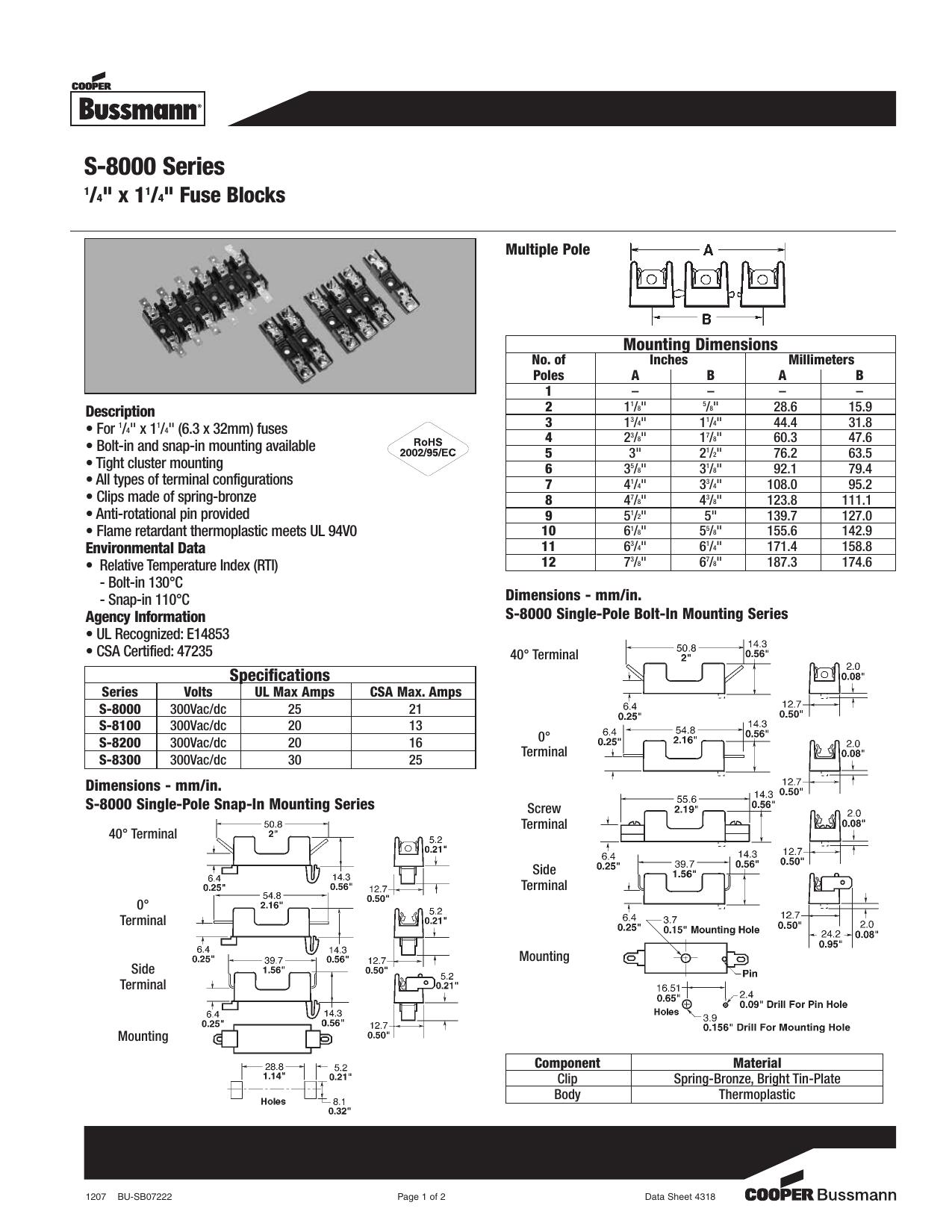

The Eaton BK/S-8001-1 Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Single-pole, single-circuit fuse block with a 25A current rating and 300VDC/300VAC voltage rating. Features bolt mounting and solder lug termination. Constructed from black thermoplastic with a UL94 V-0 flammability rating. Designed for 3AG fuse sizes (1-1/4" L x 1/4" Dia). Operates within a temperature range of 0°C to 130°C. Supplied in bulk packaging.. Key parameters include Body Material: Thermoplastic, Color: Black, Current Rating: 25A, DC Rated Voltage: 300V, and Depth: 54.8mm. BK/S-8001-1 is manufactured by Eaton as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Eaton
- Category
- Semiconductors
Ask AI Assistant
Ask questions about BK/S-8001-1 specifications
Click to ask a quick question:
Parameters
| Body Material | Thermoplastic |
| Color | Black |
| Current Rating | 25A |
| DC Rated Voltage | 300V |
| Depth | 54.8mm |
| Flammability Rating | UL94 V-0 |
| Fuse Size | 3AG, 1-1/4" L x 1/4" Dia (31.8mm x 6.35mm) |
| Illumination Type | Illuminated |
| Lead Free | Contains Lead |
| Length | 12.7mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | 0°C |
| Mount | Chassis Mount, Bolt |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| RoHS Compliant | Yes |
| Series | S-8000 |
| Termination | Solder |
| TTI Americas | —1——View offer |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| Weight | 1oz |
