B0520W
Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2
Similar Components
BZX584C10
Zener Diode, 10V V(Z), 6%, 0.15W, Silicon, Unidirectional, GREEN, ULTRA SMALL, PLASTIC PACKAGE-2
ES3JB
Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, PLASTIC, SMB, 2 PIN
BZX584C15
Zener Diode, 15V V(Z), 6.12%, 0.15W, Silicon, Unidirectional, GREEN, ULTRA SMALL, PLASTIC PACKAGE-2
S3MB
This is a general purpose rectifier diode with a maximum operating temperature of 150 degrees Celsius and a minimum operating temperature of -55 degrees Celsius. It has a dual terminal position and a pin count of 2. The diode element material is silicon and the diode type is a rectifier diode. It is designed to handle a maximum reverse voltage of 1000 volts.
About B0520W

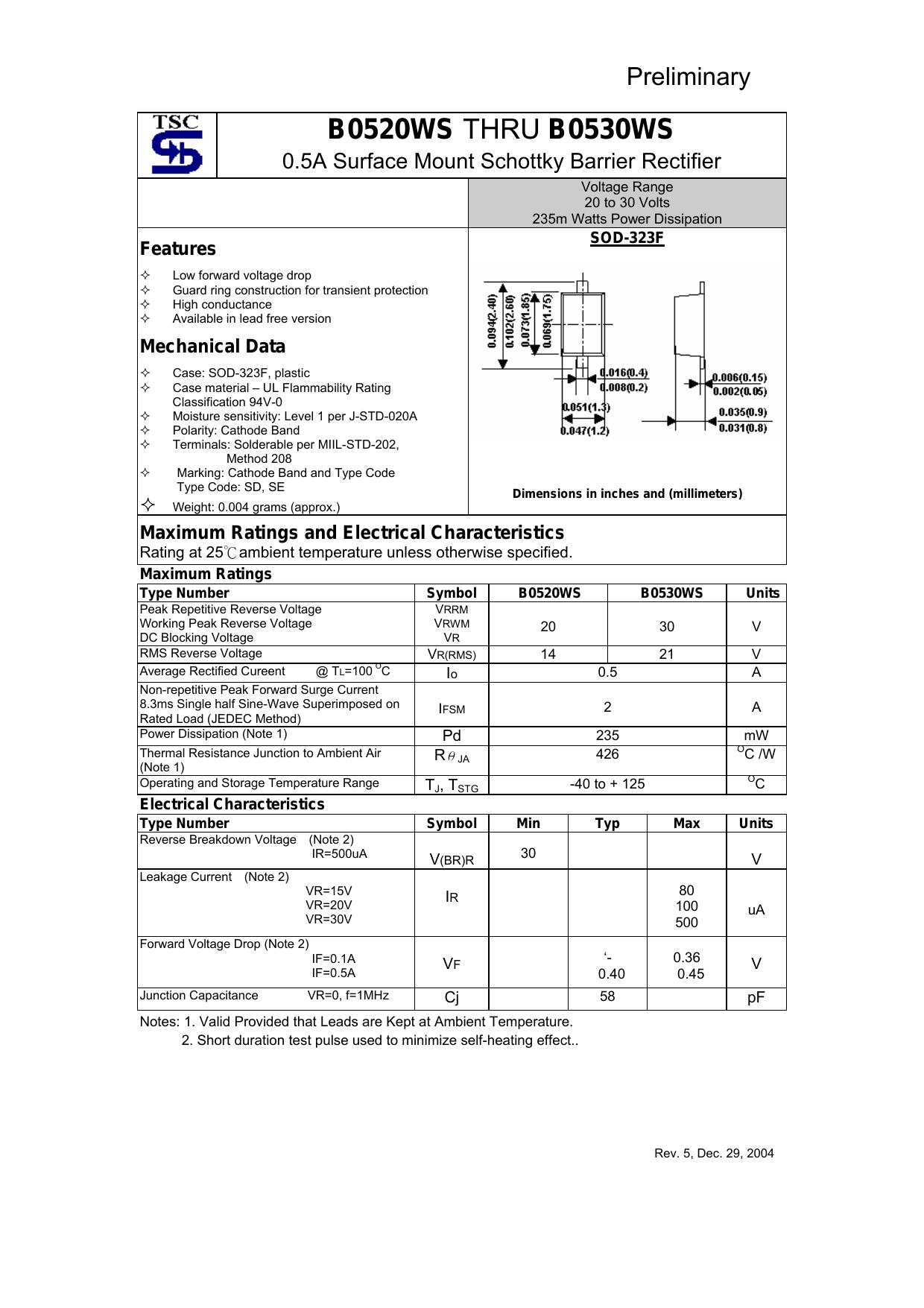

The Lite-On B0520W Semiconductors datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Rectifier Diode, Schottky, 1 Element, 0.5A, 20V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2. Key parameters include Diode Element Material: SILICON, Diode Type: RECTIFIER DIODE, Eccn Code: EAR99, HTS Code: 8541.10.00.70, and Military Spec: False. B0520W is manufactured by Lite-On as part of their Semiconductors product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Lite-On
- Category
- Semiconductors
Ask AI Assistant
Ask questions about B0520W specifications
Click to ask a quick question:
Parameters
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Eccn Code | EAR99 |
| HTS Code | 8541.10.00.70 |
| Military Spec | False |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Pin Count | 2 |
| Power Dissipation-Max | 0.41 |
| REACH | Compliant |
| Rep Pk Reverse Voltage-Max | 20 |
| Terminal Position | DUAL |
