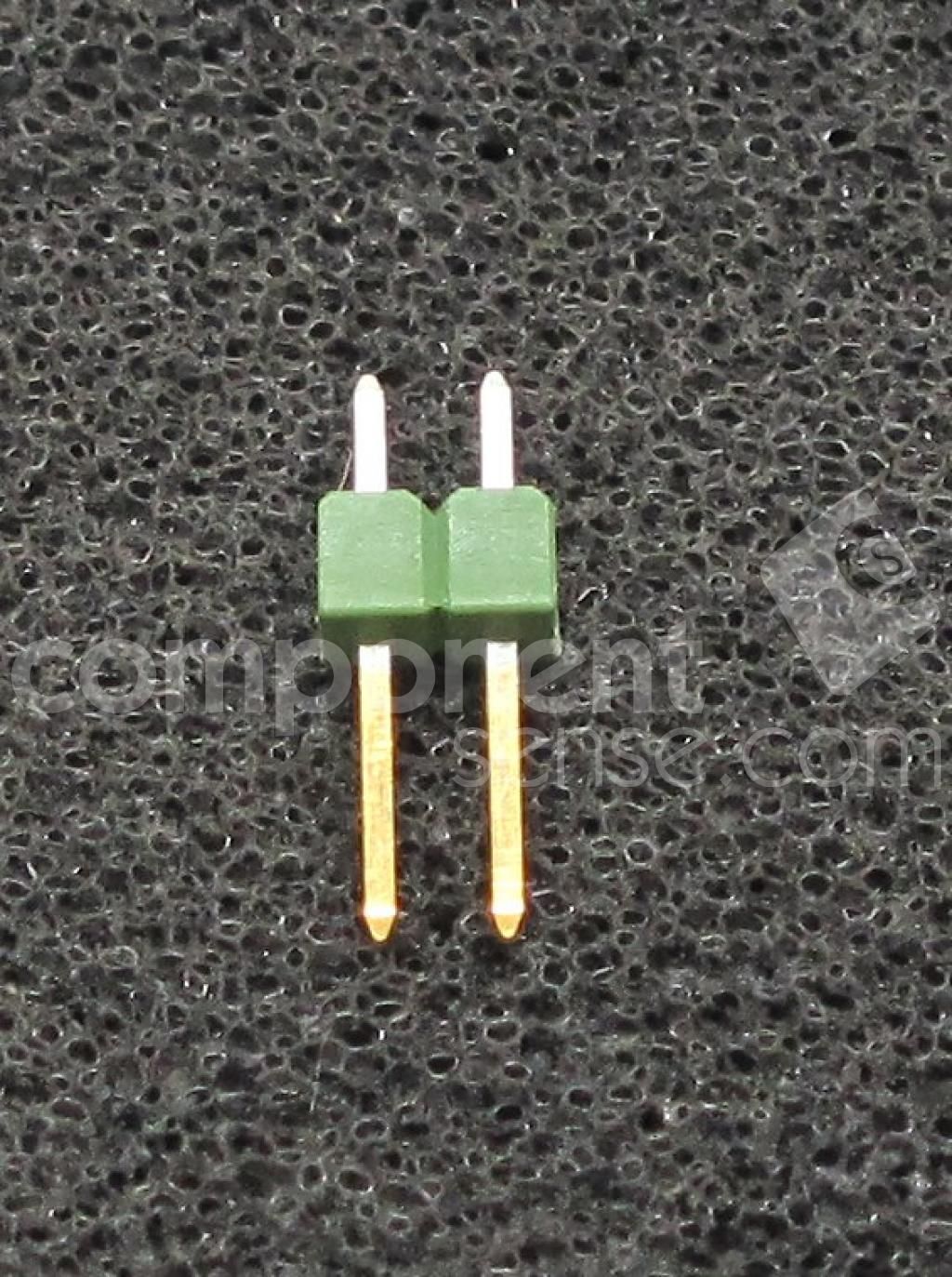

The TE Connectivity 8266292 Uncategorized datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: 2 Pos Square Pin Connector, 2.54mm Pitch, Gold/Tin Plating, 3A. Key parameters include Board Standoff: No (Without), Color: Green, Contact Gender: Male, Contact Material: Bronze, and Contact Mating Length: 6.7mm. 8266292 is manufactured by TE Connectivity as part of their Uncategorized product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.

Specifications

Manufacturer: TE Connectivity
Category: Uncategorized

Ask AI Assistant

Ask questions about 8266292 specifications

AI Powered

Click to ask a quick question:

Parameters

Board Standoff	No (Without)
Color	Green
Contact Gender	Male
Contact Material	Bronze
Contact Mating Length	6.7mm
Contact Plating	Gold, Tin
Contact Post Length	0.1259inch
Contact Protection	No (Without)
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3A
ELV	Compliant
Flammability Rating	UL94 V-0
Gasket	No (Without)
Gender	Male
High Speed Serial Data Connector	No
High Temperature Housing	No
Housing Color	Green
Keyed	No
Lead Free	Lead Free
Mating Alignment	No (Without)
Mating Connector Lock	No (Without)
Mount	Straddle Mount
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Orientation	Straight
Package Quantity	3000
Packaging	Carton
PCB Mounting Orientation	Vertical
PCB Mount Retention	Without
Pitch	2.54mm
Plating Thickness	0.8um
Reach SVHC Compliant	No
RoHS	Compliant
Row Spacing	2.54mm
Selectively Loaded	No (Without)
Series	AMPMODU® Mod II
Stabilizers	No (Without)
Strain Relief	No (Without)
Termination	Through Hole
