WS2812
Digital RGB LED family integrates intelligent-control lighting devices for decorative, consumer-electronics, computer-peripheral, and gaming-equipment applications. The family uses 8-bit, 256-level gray-scale control and supports 3.3 V to 5.5 V or 3.8 V to 5.5 V operating ranges depending on variant. RGB constant-current options span 5 mA, 12 mA, and 16 mA per channel across the family. Package options include 5050, 3535, 2427, 2020, 1313, 4020, and through-hole straw-hat or flat LED formats depending on variant.
Similar Components
WS2812B
Addressable RGB LED light source integrates the RGB LED die and digital control circuit in a 5050 component package. The device uses a single-wire NZR data protocol with 24-bit GRB color data and built-in signal reshaping for cascaded pixels. The supply-voltage rating is 3.5 V to 5.3 V, with operation specified from -25 °C to 80 °C. Each primary color supports 256 brightness levels for 16,777,216 full-color display combinations, with a scan frequency of at least 400 Hz/s and 800 kbps data transfer.
MOC3071
Triac Driver Optocoupler, 6-Pin DIP Random-Phase (800 Volt Peak) Triac Driver Optocoupler SMT 6-Pin, 1000-TUBE
MOC3023M
OPTOISOLATOR 5KV TRIAC 6DIP
MOC3020
Triac & SCR Output Optocouplers Optocoupler TRIAC; Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
MOC3021
The MOC3021 is a single-channel optocoupler with a maximum input current of 50mA and an output voltage of 400V. It features a hold current of 250uA and an isolation voltage of 5kV. The device is packaged in a DIP package and is mounted through a hole. It operates over a temperature range of -40°C to 100°C and is compliant with RoHS regulations.
SK6812
-40℃~+85℃ 0.6mA 1.78mm 120° 1kHz 2.8mm 2000V 3.2mm 3.7V~5.5V 800Kbit/s G:815mcd~1275mcd R:620nm~625nm Semi-transparent lens SMD RGB LEDs(Built-in IC) ROHS
About WS2812
The Worldsemi WS2812 Optoelectronics Displays datasheet provides detailed technical specifications, pinout information, and operating characteristics. This component: Digital RGB LED family integrates intelligent-control lighting devices for decorative, consumer-electronics, computer-peripheral, and gaming-equipment applications. The family uses 8-bit, 256-level gray-scale control and supports 3.3 V to 5.5 V or 3.8 V to 5.5 V operating ranges depending on variant. RGB constant-current options span 5 mA, 12 mA, and 16 mA per channel across the family. Package options include 5050, 3535, 2427, 2020, 1313, 4020, and through-hole straw-hat or flat LED formats depending on variant.. Key parameters include Dual-signal support: No, Gray scale: 8-bit, 256 gray, Integrated capacitor: Inside for selected variants, Overvoltage protection: Available on selected variants, and Package dimensions: 5050, 3535, 2427, 2020, 1313, 4020, Φ5 flat, Φ5 straw hat, Φ8 straw hat. WS2812 is manufactured by Worldsemi as part of their Optoelectronics Displays product line. On this page you can view and download the PDF datasheet, check specifications, and find similar components.
Specifications
- Manufacturer
- Worldsemi
- Category
- Optoelectronics Displays
Ask AI Assistant
Ask questions about WS2812 specifications
Click to ask a quick question:
Parameters
| Dual-signal support | No |
| Gray scale | 8-bit, 256 gray |
| Integrated capacitor | Inside for selected variants |
| Overvoltage protection | Available on selected variants |

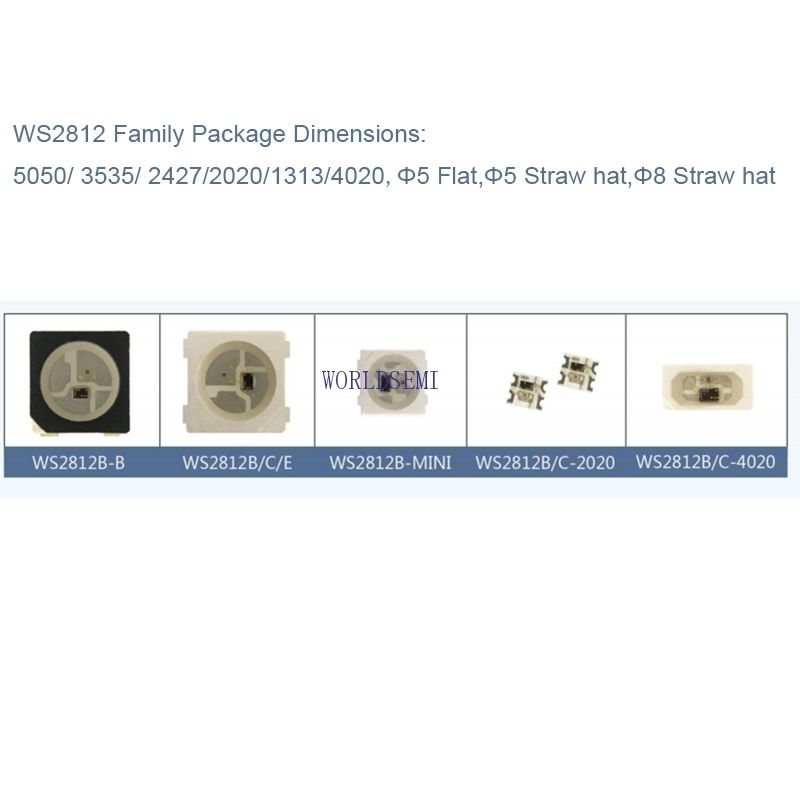

| Package dimensions | 5050, 3535, 2427, 2020, 1313, 4020, Φ5 flat, Φ5 straw hat, Φ8 straw hat |
| Reverse connection protection | Available on selected variants |
| RGB current options | 5, 12, or 16 |
| Series supply voltage range | 3.3 to 5.5; 3.8 to 5.5 for selected variants |
